MTSW-120-07-L-D-135 by: Samtec Inc

Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

Part Details for MTSW-120-07-L-D-135 by Samtec Inc

Results Overview of MTSW-120-07-L-D-135 by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MTSW-120-07-L-D-135 Information

MTSW-120-07-L-D-135 by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for MTSW-120-07-L-D-135

Part # Distributor Description Stock Price Buy
DISTI # 40AC5011
Newark Header, 2.54 Mm, Through Hole, 2 Rows, 40 Contacts, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:40Contacts, Contact Termination Type:Through Hole, Product Range:Mtsw Series Rohs Compliant: Yes |Samtec MTSW-120-07-L-D-135 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 369
  • 1 $4.1000
  • 10 $3.9100
  • 100 $3.2900
  • 500 $2.7800
  • 1,000 $2.3600
  • 2,500 $2.1700
  • 5,000 $2.1200
$2.1200 / $4.1000 Buy Now
DISTI # 3937-MTSW-120-07-L-D-135-ND
DigiKey CONN HEADER VERT 40POS 2.54MM Min Qty: 1 Lead time: 5 Weeks Container: Bulk MARKETPLACE PRODUCT 244
In Stock
  • 1 $9.8500
$9.8500 Buy Now
DISTI # 612-MTSW-120-07-L-D-135-ND
DigiKey CONN HEADER VERT 40POS 2.54MM Min Qty: 1 Lead time: 5 Weeks Container: Bulk Temporarily Out of Stock
  • 1 $3.6100
$3.6100 Buy Now
DISTI # MTSW-120-07-L-D-13
Avnet Americas Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through Hole, MTSW Series - Bulk (Alt: MTSW-120-07-L-D-13) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk 369 Factory Stock
  • 1 $3.0086
  • 10 $2.9933
  • 30 $2.2407
  • 50 $2.2292
  • 100 $2.2176
$2.2176 / $3.0086 Buy Now
DISTI # 200-MTSW12007LD135
Mouser Electronics Headers & Wire Housings Variable Height PCB Header Strips RoHS: Compliant 0
  • 1 $3.0700
  • 25 $2.8400
  • 50 $2.5800
  • 100 $2.3100
  • 500 $2.0900
  • 1,000 $1.8200
  • 2,500 $1.4500
  • 5,000 $1.1400
$1.1400 / $3.0700 Order Now
Onlinecomponents.com .100" Variable Post Height Terminal Strip RoHS: Compliant 0
  • 10 $3.2500
  • 50 $2.7300
  • 250 $2.5200
  • 500 $2.2400
  • 1,000 $1.9000
  • 2,500 $1.4900
  • 5,000 $1.2000
  • 7,500 $1.1700
$1.1700 / $3.2500 Buy Now
DISTI # 85103787
Verical Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 3 Package Multiple: 1 Americas - 369
  • 3 $3.0700
$3.0700 Buy Now
DISTI # 5cd90966cd7c1c4c385f2e00
Samtec Variable Height PCB Header Strips, 0.100" pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk 369
  • 1 $3.0700
  • 25 $2.8400
  • 50 $2.5800
  • 100 $2.3100
  • 500 $2.0900
  • 1,000 $1.8200
  • 2,500 $1.4500
  • 5,000 $1.1400
$1.1400 / $3.0700 Buy Now
Powell Electronics .100 Variable Post Height Terminal Strip Min Qty: 1 244
  • 1 $3.0700
  • 25 $2.8400
  • 50 $2.5800
  • 100 $2.3100
  • 500 $2.0900
$2.0900 / $3.0700 Buy Now
DISTI # 000000000005211632
Sager Headers & Wire Housings Variable Height PCB Header Strips, 0.100 pitch Min Qty: 1 369
  • 1 $3.0700
  • 25 $2.8400
  • 50 $2.5800
  • 100 $2.3100
  • 500 $2.0900
  • 1,000 $1.8200
$1.8200 / $3.0700 Buy Now
Master Electronics .100" Variable Post Height Terminal Strip RoHS: Compliant 0
  • 10 $3.2500
  • 50 $2.7300
  • 250 $2.5200
  • 500 $2.2400
  • 1,000 $1.9000
  • 2,500 $1.4900
  • 5,000 $1.2000
  • 7,500 $1.1700
$1.1700 / $3.2500 Buy Now

Part Details for MTSW-120-07-L-D-135

MTSW-120-07-L-D-135 CAD Models

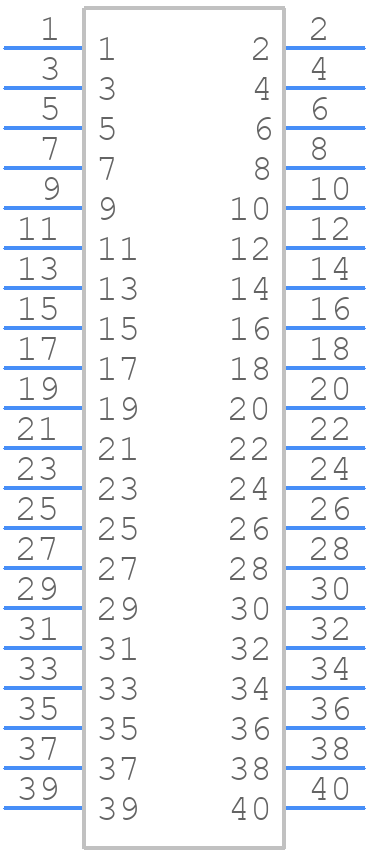

  • Part Symbol

    Part Symbol

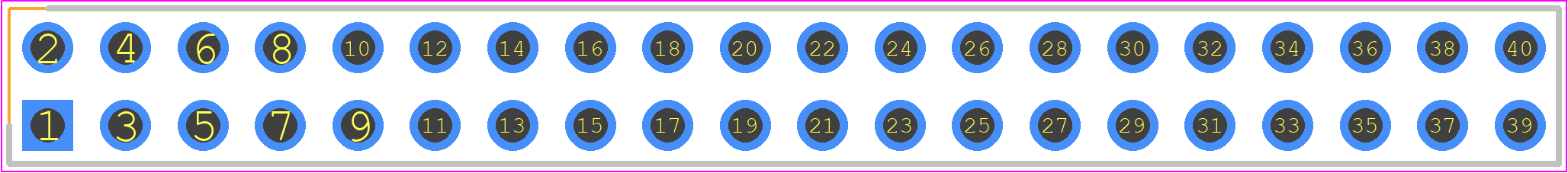

  • Footprint

    footprint

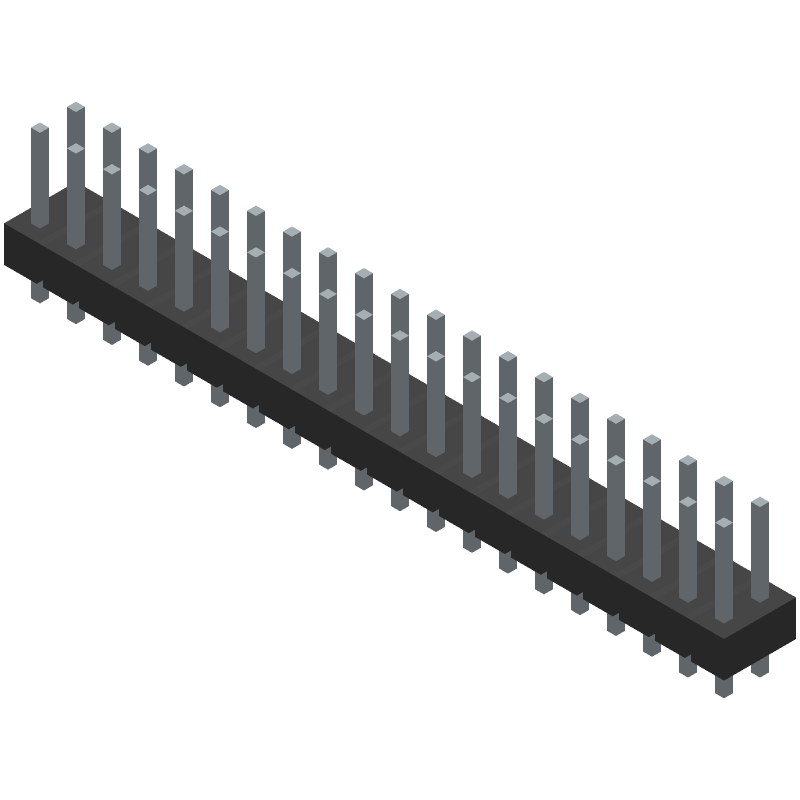

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MTSW-120-07-L-D-135 Part Data Attributes

Parametric Data
MTSW-120-07-L-D-135 Samtec Inc
Buy Now Datasheet
Compare Parts:
MTSW-120-07-L-D-135 Samtec Inc Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 111 Weeks
Samacsys Manufacturer SAMTEC
Body Breadth 0.2 inch
Body Depth 0.1 inch
Body Length 2 inch
Connector Type BOARD CONNECTOR
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Rated Current (Signal) 3 A
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 40

Alternate Parts for MTSW-120-07-L-D-135

This table gives cross-reference parts and alternative options found for MTSW-120-07-L-D-135. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MTSW-120-07-L-D-135, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
10129381-940001BLF Amphenol Communications Solutions $0.6145 EconoStik™, Board to Board connector, Unshrouded Vertical Header, Through Hole, Double Row, 40 Positions, 2.54 mm (0.100in) Pitch. MTSW-120-07-L-D-135 vs 10129381-940001BLF
MTSW-120-07-G-D-250 Samtec Inc $4.0456 Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-07-G-D-250
MTSW-120-07-T-D-195 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-07-T-D-195
MTSW-120-08-TM-D-375 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-08-TM-D-375
MTSW-120-07-G-D-000 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Wire Wrap Terminal, MTSW-120-07-L-D-135 vs MTSW-120-07-G-D-000
MTSW-120-07-L-D-007 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT MTSW-120-07-L-D-135 vs MTSW-120-07-L-D-007
MTSW-120-07-T-D-009 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-07-T-D-009
MTSW-120-08-T-D-240 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-08-T-D-240
MTSW-120-08-F-D-325 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-08-F-D-325
MTSW-120-07-F-D-185 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-07-F-D-185
Part Number Manufacturer Composite Price Description Compare
MTSW-120-07-T-D-240 Samtec Inc $2.1984 Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, ROHS COMPLIANT MTSW-120-07-L-D-135 vs MTSW-120-07-T-D-240
MTSW-120-08-T-D-310 Samtec Inc $2.2572 Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-08-T-D-310
MTSW-120-08-T-D-100 Samtec Inc $2.5601 Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT MTSW-120-07-L-D-135 vs MTSW-120-08-T-D-100
MTSW-120-08-L-D-260 Samtec Inc $3.4297 Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT MTSW-120-07-L-D-135 vs MTSW-120-08-L-D-260
MTSW-120-08-S-D-335 Samtec Inc $5.1091 Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-08-S-D-335
MTSW-120-07-H-D-240 Samtec Inc $5.8891 Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-07-H-D-240
MTSW-120-27-G-D-615 Samtec Inc $6.7351 Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, MTSW-120-07-L-D-135 vs MTSW-120-27-G-D-615
64111-G20-26-0500LF Amphenol Communications Solutions Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE MTSW-120-07-L-D-135 vs 64111-G20-26-0500LF
64111-G20-24-0500LF Amphenol FCi Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE MTSW-120-07-L-D-135 vs 64111-G20-24-0500LF
MTSW-120-08-S-D-225 Samtec Inc Check for Price Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT MTSW-120-07-L-D-135 vs MTSW-120-08-S-D-225
