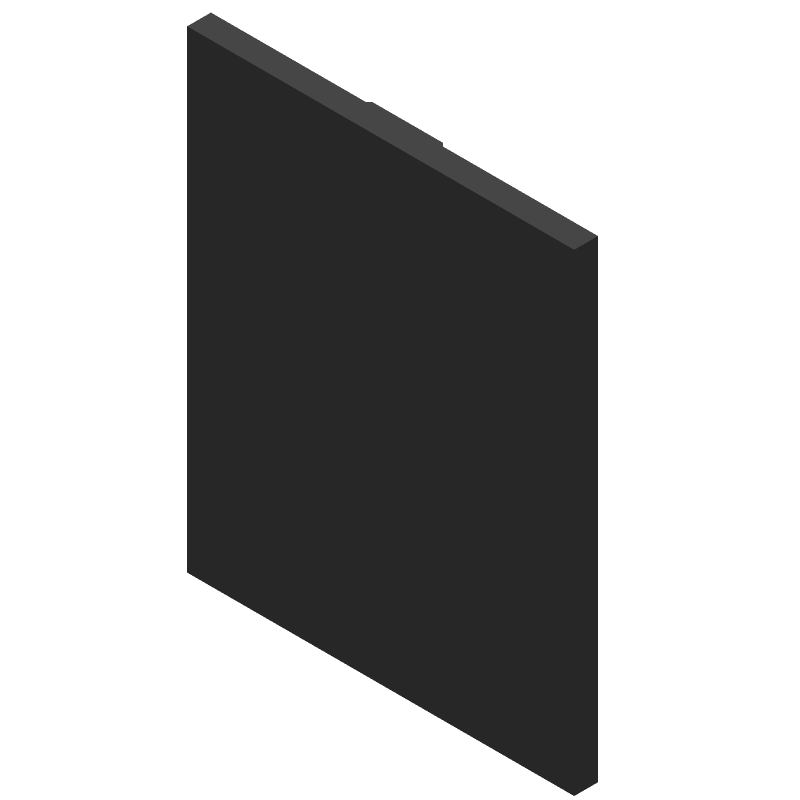

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MT60B2G8HB-48B:A by Micron Technology Inc
Results Overview of MT60B2G8HB-48B:A by Micron Technology Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MT60B2G8HB-48B:A Information
MT60B2G8HB-48B:A by Micron Technology Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for MT60B2G8HB-48B:A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40AJ0884
|
Newark | Dram, 16Gbit, 2.4Ghz, Vfbga-82, Dram Type:Ddr5, Memory Configuration:2G X 8Bit, Clock Frequency Max:2.4Ghz, Ic Case/Package:Vfbga, No. Of Pins:82Pins, Supply Voltage Nom:1.1V, Ic Mounting:Surface Mount, Product Range:- Rohs Compliant: Yes |Micron MT60B2G8HB-48B:A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 710 |
|
$13.0000 / $14.0900 | Buy Now |
|
DISTI #
MT60B2G8HB-48B:A
|
Avnet Americas | DRAM, SDRAM, 16 Gbit, 2G x 8bit, FBGA, 82 Pins - Trays (Alt: MT60B2G8HB-48B:A) RoHS: Not Compliant Min Qty: 1260 Package Multiple: 1260 Lead time: 111 Weeks, 0 Days Container: Tray | 0 |
|
$12.3120 / $13.1760 | Buy Now |
|
DISTI #
40AJ0884
|
Avnet Americas | DRAM, SDRAM, 16 Gbit, 2G x 8bit, FBGA, 82 Pins - Bulk (Alt: 40AJ0884) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
$15.5200 / $16.5800 | Buy Now |
|
DISTI #
340-468260-TRAY
|
Mouser Electronics | DRAM DDR5 16Gbit 8 82/143 VFBGA 1 CT RoHS: Compliant | 1240 |
|
$17.1000 / $19.1200 | Buy Now |
|
|
Quest Components | 1007 |
|
$45.0000 / $60.0000 | Buy Now | |
|
DISTI #
MT60B2G8HB-48B:A
|
Avnet Silica | DRAM SDRAM 16 Gbit 2G x 8bit FBGA 82 Pins (Alt: MT60B2G8HB-48B:A) RoHS: Compliant Min Qty: 1260 Package Multiple: 1260 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MT60B2G8HB-48B:A
|
EBV Elektronik | DRAM SDRAM 16 Gbit 2G x 8bit FBGA 82 Pins (Alt: MT60B2G8HB-48B:A) RoHS: Compliant Min Qty: 1260 Package Multiple: 1260 | EBV - 0 |
|
Buy Now |
Part Details for MT60B2G8HB-48B:A
MT60B2G8HB-48B:A CAD Models
MT60B2G8HB-48B:A Part Data Attributes
|
|
MT60B2G8HB-48B:A
Micron Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MT60B2G8HB-48B:A
Micron Technology Inc
DDR5 DRAM, 2GX8, CMOS, PBGA82,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICRON TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Micron | |
| Access Mode | MULTI BANK PAGE BURST | |
| Additional Feature | SELF REFRESH | |
| Clock Frequency-Max (fCLK) | 2403.8 MHz | |
| I/O Type | COMMON | |
| JESD-30 Code | R-PBGA-B82 | |
| Length | 11 mm | |
| Memory Density | 17179869184 bit | |
| Memory IC Type | DDR5 DRAM | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 82 | |
| Number of Words | 2147483648 words | |
| Number of Words Code | 2000000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 95 °C | |
| Operating Temperature-Min | ||
| Organization | 2GX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA82,11X13,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Refresh Cycles | 8192 | |
| Seated Height-Max | 1 mm | |
| Self Refresh | YES | |
| Supply Voltage-Nom (Vsup) | 1.1 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Width | 9 mm |
MT60B2G8HB-48B:A Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MT60B2G8HB-48B:A is 0°C to 85°C.
-
To ensure signal integrity on the address and command bus, use a controlled impedance PCB design, keep the signal traces short, and use a termination scheme such as ODT (On-Die Termination) or a discrete resistor.
-
The recommended voltage for the VDD and VDDQ power supplies is 1.2V ± 0.06V.
-
During self-refresh mode, the DRAM module will automatically refresh the memory array. No external refresh commands are required.
-
The maximum clock frequency supported by the MT60B2G8HB-48B:A is 1600MHz.
