Memory / DRAMs / MT48LC4M16A2P-6A:J
Datasheets
MT48LC4M16A2P-6A:J by: Micron Technology Inc

Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54

Part Details for MT48LC4M16A2P-6A:J by Micron Technology Inc

Results Overview of MT48LC4M16A2P-6A:J by Micron Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Computing and Data Storage

MT48LC4M16A2P-6A:J Information

MT48LC4M16A2P-6A:J by Micron Technology Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for MT48LC4M16A2P-6A:J

Part # Distributor Description Stock Price Buy
DISTI # 80AH8158
Newark Dram, 4M X 16Bit, 0 To 70Deg C, Dram Type:Sdr, Memory Configuration:4M X 16Bit, Clock Frequency Max:166Mhz, Ic Case/Package:Tsop, No. Of Pins:54Pins, Supply Voltage Nom:3.3V, Ic Mounting:Surface Mount, Operating Temperature Min:0°Crohs Compliant: Yes |Micron MT48LC4M16A2P-6A:J RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 713
  • 1 $3.9000
  • 10 $3.9000
  • 25 $3.9000
  • 50 $3.9000
  • 100 $3.9000
  • 250 $3.9000
  • 500 $3.9000
$3.9000 Buy Now
DISTI # MT48LC4M16A2P-6A:J-ND
DigiKey IC DRAM 64MBIT PAR 54TSOP II Min Qty: 1 Lead time: 10 Weeks Container: Bulk 883
In Stock
  • 1 $4.9100
  • 10 $4.5770
  • 25 $4.4400
  • 50 $4.3362
  • 100 $4.2326
  • 250 $4.0965
  • 500 $3.9948
  • 1,080 $3.8833
$3.8833 / $4.9100 Buy Now
DISTI # MT48LC4M16A2P-6A:J
Avnet Americas DRAM Chip SDRAM 64M-Bit 4Mx16 3.3V 54-Pin TSOP-II - Trays (Alt: MT48LC4M16A2P-6A:J) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Tray 2715
  • 1 $4.1356
  • 10 $3.8025
  • 30 $3.7830
  • 50 $3.7635
  • 100 $3.7440
$3.7440 / $4.1356 Buy Now
DISTI # 80AH8158
Avnet Americas DRAM Chip SDRAM 64M-Bit 4Mx16 3.3V 54-Pin TSOP-II - Bulk (Alt: 80AH8158) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 1 Days Container: Bulk 713 Partner Stock
  • 1 $5.7400
  • 10 $4.7600
  • 25 $4.6500
  • 50 $4.5400
  • 100 $4.4300
$4.4300 / $5.7400 Buy Now
DISTI # 340-129211-TRAY
Mouser Electronics DRAM SDRAM 64Mbit 16 54/54 TSOP 1 CT RoHS: Compliant 1472
  • 1 $4.9100
  • 10 $4.5800
  • 25 $4.4400
  • 50 $4.3400
  • 100 $4.1500
  • 250 $4.0400
  • 500 $3.9700
  • 2,160 $3.4500
$3.4500 / $4.9100 Buy Now
DISTI # E54:1762_03503491
Arrow Electronics DRAM Chip SDR SDRAM 64Mbit 4Mx16 3.3V 54-Pin TSOP-II Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2512 Europe - 22223
  • 1 $4.7930
$4.7930 Buy Now
DISTI # V36:1790_07227258
Arrow Electronics DRAM Chip SDR SDRAM 64Mbit 4Mx16 3.3V 54-Pin TSOP-II Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2506 Americas - 1198
  • 1 $4.7930
  • 10 $4.4980
  • 25 $4.2610
  • 50 $4.1370
  • 100 $3.9620
  • 250 $3.8500
  • 500 $3.7150
  • 2,160 $3.4380
$3.4380 / $4.7930 Buy Now
DISTI # 88110878
Verical DRAM Chip SDR SDRAM 64Mbit 4Mx16 3.3V 54-Pin TSOP-II Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2512 Americas - 22223
  • 2 $4.7930
$4.7930 Buy Now
DISTI # 87899629
Verical DRAM Chip SDR SDRAM 64Mbit 4Mx16 3.3V 54-Pin TSOP-II Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2506 Americas - 1198
  • 2 $4.7930
  • 10 $4.4980
  • 25 $4.2610
  • 50 $4.1370
  • 100 $3.9620
  • 250 $3.8500
  • 500 $3.7150
  • 2,160 $3.4380
$3.4380 / $4.7930 Buy Now
DISTI # 87016730
Verical DRAM Chip SDR SDRAM 64Mbit 4Mx16 3.3V 54-Pin TSOP-II Tray RoHS: Compliant Min Qty: 510 Package Multiple: 510 Date Code: 2446 Americas - 510
  • 510 $3.1230
$3.1230 Buy Now
Bristol Electronics   209
RFQ
Bristol Electronics   3
RFQ
Quest Components 4M X 16 5.4NS, PDSO54 108
  • 1 $12.7890
  • 9 $8.5260
  • 30 $7.8866
$7.8866 / $12.7890 Buy Now
Quest Components 4M X 16 5.4NS, PDSO54 3
  • 1 $6.4800
  • 3 $4.3200
$4.3200 / $6.4800 Buy Now
NexGen Digital   1
RFQ
DISTI # SMC-MT48LC4M16A2P-6A:J
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 148
RFQ
DISTI # SMC-MT48LC4M16A2P-6A:J
Sensible Micro Corporation Conn Card Edge Skt 100 Pos 1Mm Solder Ra Smd Tube - Rail/Tube RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1342 Container: Trays 3
  • 100 $3.0030
  • 500 $2.9260
  • 1,000 $2.7720
$2.7720 / $3.0030 RFQ
DISTI # MT48LC4M16A2P-6A:J
Avnet Asia DRAM, SDR, 64 Mbit, 4M x 16bit, 167 MHz, 54 Pins, TSOP-II (Alt: MT48LC4M16A2P-6A:J) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks, 1 Days 0
  • 2,000 $3.3289
  • 4,000 $3.2857
  • 6,000 $3.2436
  • 10,000 $3.2025
  • 20,000 $3.1235
  • 50,000 $3.0482
  • 100,000 $2.9765
$2.9765 / $3.3289 Buy Now
DISTI # MT48LC4M16A2P-6A:J
Avnet Silica DRAM Chip SDRAM 64MBit 4Mx16 33V 54Pin TSOPII (Alt: MT48LC4M16A2P-6A:J) RoHS: Compliant Min Qty: 1080 Package Multiple: 1080 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 20
  • 1 $5.3800
  • 100 $4.0400
  • 1,000 $3.5000
$3.5000 / $5.3800 Buy Now
Cytech Systems Limited IC DRAM 64MBIT PAR 54TSOP II 2000
RFQ
DISTI # MT48LC4M16A2P-6A:J
EBV Elektronik DRAM Chip SDRAM 64MBit 4Mx16 33V 54Pin TSOPII (Alt: MT48LC4M16A2P-6A:J) RoHS: Compliant Min Qty: 1080 Package Multiple: 1080 Lead time: 22 Weeks, 0 Days EBV - 0
Buy Now
New Advantage Corporation TSOP/C�/4MX16 SDRAM PLASTIC PBF 3.3V RoHS: Compliant Min Qty: 1 Package Multiple: 1080 1620
  • 1,080 $5.3000
  • 1,620 $4.9000
$4.9000 / $5.3000 Buy Now
Vyrian Memory ICs 4774
RFQ
Win Source Electronics IC SDRAM 64MBIT 167MHZ 54TSOP 6181
  • 16 $3.6560
  • 34 $3.4202
  • 53 $3.3023
  • 76 $3.0664
  • 98 $2.9485
  • 123 $2.8306
$2.8306 / $3.6560 Buy Now

Part Details for MT48LC4M16A2P-6A:J

MT48LC4M16A2P-6A:J CAD Models

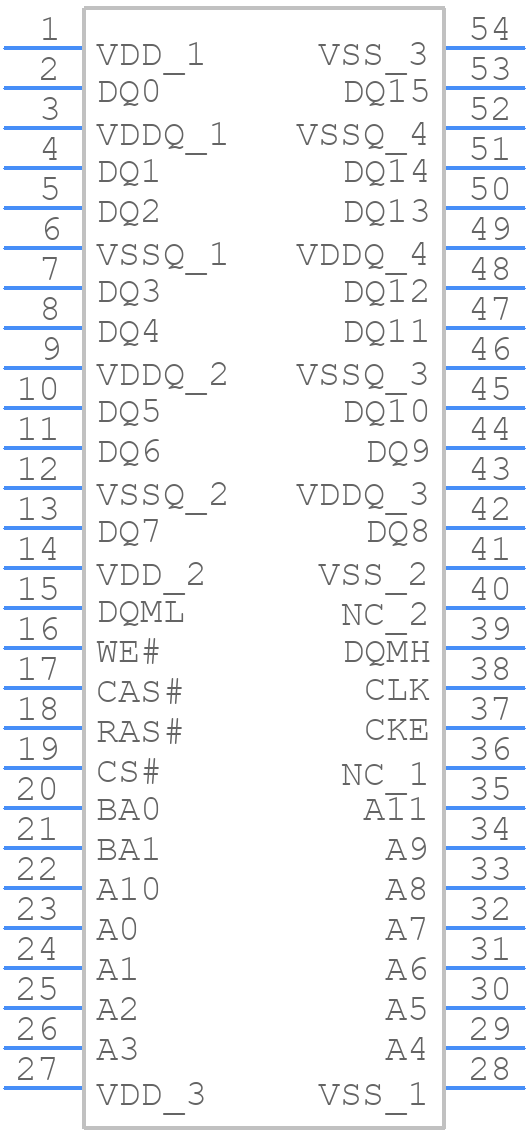

  • Part Symbol

    Part Symbol

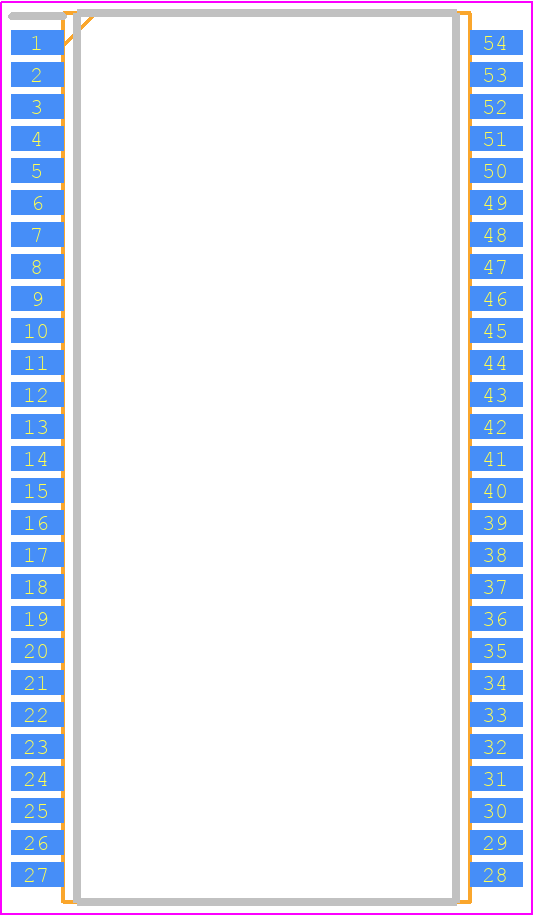

  • Footprint

    footprint

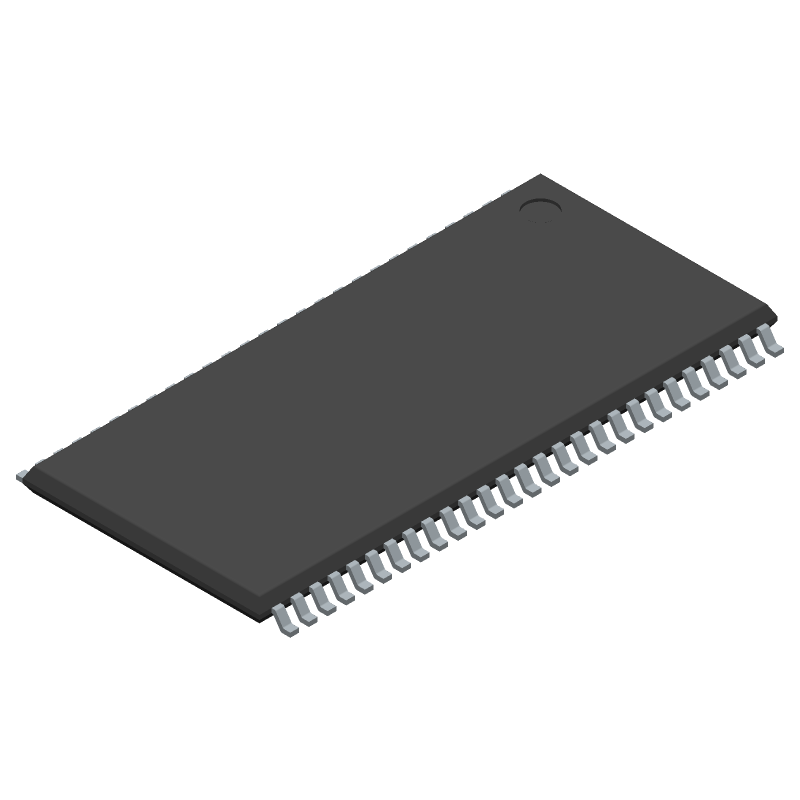

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MT48LC4M16A2P-6A:J Part Data Attributes

Parametric Data
MT48LC4M16A2P-6A:J Micron Technology Inc
Buy Now Datasheet
Compare Parts:
MT48LC4M16A2P-6A:J Micron Technology Inc Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRON TECHNOLOGY INC
Package Description 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54
Reach Compliance Code compliant
Factory Lead Time 14 Weeks, 1 Day
Samacsys Manufacturer Micron
Access Mode FOUR BANK PAGE BURST
Access Time-Max 5.4 ns
Additional Feature AUTO/SELF REFRESH
Clock Frequency-Max (fCLK) 167 MHz
I/O Type COMMON
Interleaved Burst Length 1,2,4,8
JESD-30 Code R-PDSO-G54
JESD-609 Code e3
Length 22.22 mm
Memory Density 67108864 bit
Memory IC Type SYNCHRONOUS DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 54
Number of Words 4194304 words
Number of Words Code 4000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 70 °C
Operating Temperature-Min
Organization 4MX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Equivalence Code TSOP54,.46,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Refresh Cycles 4096
Seated Height-Max 1.2 mm
Self Refresh YES
Sequential Burst Length 1,2,4,8,FP
Standby Current-Max 0.0025 A
Supply Current-Max 0.15 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 10.16 mm

Alternate Parts for MT48LC4M16A2P-6A:J

This table gives cross-reference parts and alternative options found for MT48LC4M16A2P-6A:J. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MT48LC4M16A2P-6A:J, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MT48LC4M16A2TG-6A:J Micron Technology Inc Check for Price Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, PLASTIC, TSOP2-54 MT48LC4M16A2P-6A:J vs MT48LC4M16A2TG-6A:J
HY57V641620ET-HI SK Hynix Inc Check for Price Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 MT48LC4M16A2P-6A:J vs HY57V641620ET-HI
K4S641632K-UL75T Samsung Semiconductor Check for Price Synchronous DRAM, 4MX4, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, ROHS COMPLIANT, TSOP2-54 MT48LC4M16A2P-6A:J vs K4S641632K-UL75T
K4S641632K-TL750 Samsung Semiconductor Check for Price Synchronous DRAM, 4MX4, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 MT48LC4M16A2P-6A:J vs K4S641632K-TL750
K4S641632K-UC75T Samsung Semiconductor Check for Price Synchronous DRAM, 4MX4, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, ROHS COMPLIANT, TSOP2-54 MT48LC4M16A2P-6A:J vs K4S641632K-UC75T
HY57V641620FTP-HI SK Hynix Inc Check for Price Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, LEAD FREE, TSOP2-54 MT48LC4M16A2P-6A:J vs HY57V641620FTP-HI
K4S641632K-TC750 Samsung Semiconductor Check for Price Synchronous DRAM, 4MX4, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 MT48LC4M16A2P-6A:J vs K4S641632K-TC750
K4S641632N-LI750 Samsung Semiconductor Check for Price Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, ROHS COMPLIANT AND HALOGEN FREE, TSOP2-54 MT48LC4M16A2P-6A:J vs K4S641632N-LI750
K4S641632K-UC750 Samsung Semiconductor Check for Price Synchronous DRAM, 4MX4, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, ROHS COMPLIANT, TSOP2-54 MT48LC4M16A2P-6A:J vs K4S641632K-UC750
HY57V641620ETP-HI SK Hynix Inc Check for Price Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, LEAD FREE, TSOP2-54 MT48LC4M16A2P-6A:J vs HY57V641620ETP-HI

MT48LC4M16A2P-6A:J Related Parts

MT48LC4M16A2P-6A:J Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the MT48LC4M16A2P-6A:J is 0°C to 85°C.

  • The MT48LC4M16A2P-6A:J requires a refresh cycle every 64ms, with a minimum of 8192 refreshes within an 64ms interval.

  • The MT48LC4M16A2P-6A:J supports a maximum clock frequency of 166MHz.

  • The MT48LC4M16A2P-6A:J requires a power-up sequence of VDD, VDDQ, and then clock, and a power-down sequence of clock, VDDQ, and then VDD.

  • The MT48LC4M16A2P-6A:J has a latency of CL=6, which means that the data is available 6 clock cycles after the read command.
