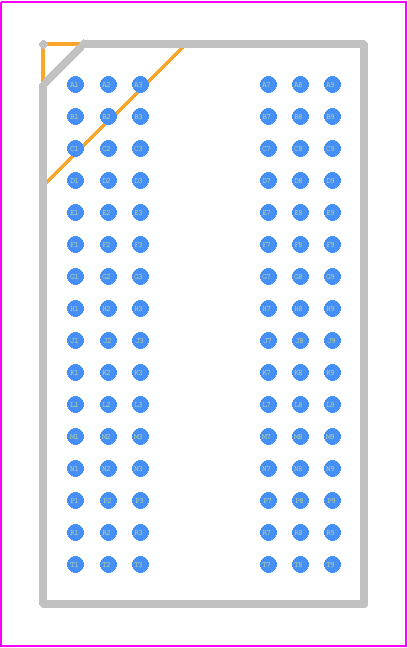

Footprint
-

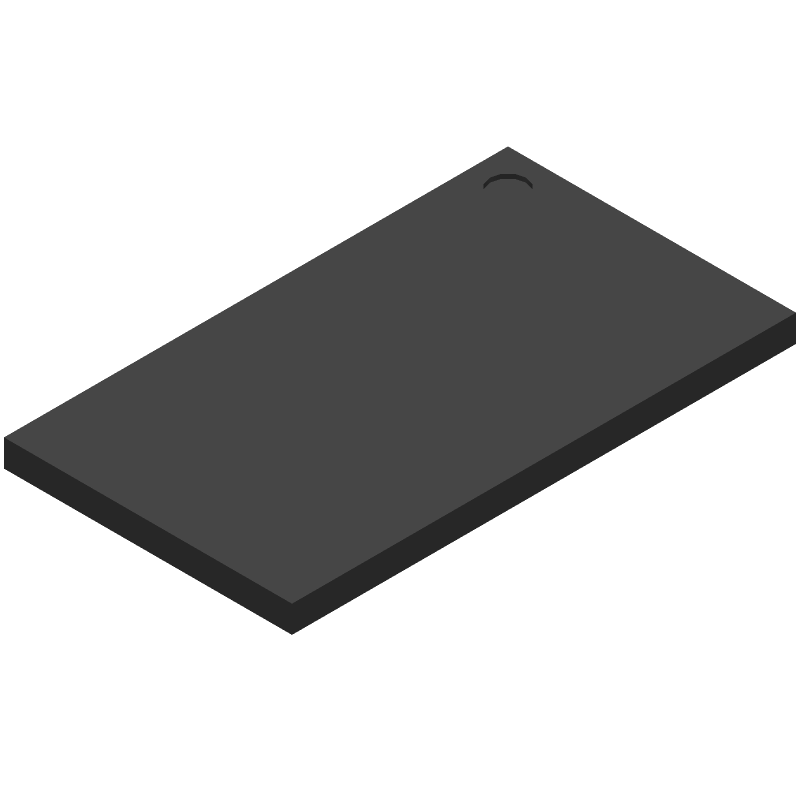

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MT41J128M16JT-125:K by Alliance Memory Inc
Results Overview of MT41J128M16JT-125:K by Alliance Memory Inc
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
MT41J128M16JT-125:K Information
MT41J128M16JT-125:K by Alliance Memory Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Part Details for MT41J128M16JT-125:K
MT41J128M16JT-125:K CAD Models
MT41J128M16JT-125:K Part Data Attributes
|
|
MT41J128M16JT-125:K
Alliance Memory Inc
Buy Now
Datasheet
|
Compare Parts:
MT41J128M16JT-125:K
Alliance Memory Inc
DDR DRAM,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLIANCE MEMORY INC | |
| Package Description | FBGA-96 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.36 | |
| Samacsys Manufacturer | Alliance Memory | |
| Access Mode | MULTI BANK PAGE BURST | |
| Clock Frequency-Max (fCLK) | 800 MHz | |
| I/O Type | COMMON | |
| Interleaved Burst Length | 8 | |
| JESD-30 Code | R-PBGA-B96 | |
| Length | 14 mm | |
| Memory Density | 2147483648 bit | |
| Memory IC Type | DDR3 DRAM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 96 | |
| Number of Words | 134217728 words | |
| Number of Words Code | 128000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 95 °C | |
| Operating Temperature-Min | ||
| Organization | 128MX16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA96,9X16,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Refresh Cycles | 8192 | |
| Seated Height-Max | 1.2 mm | |
| Self Refresh | YES | |
| Sequential Burst Length | 8 | |
| Standby Current-Max | 0.012 A | |
| Supply Current-Max | 0.184 mA | |
| Supply Voltage-Max (Vsup) | 1.575 V | |
| Supply Voltage-Min (Vsup) | 1.425 V | |
| Supply Voltage-Nom (Vsup) | 1.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Width | 8 mm |
