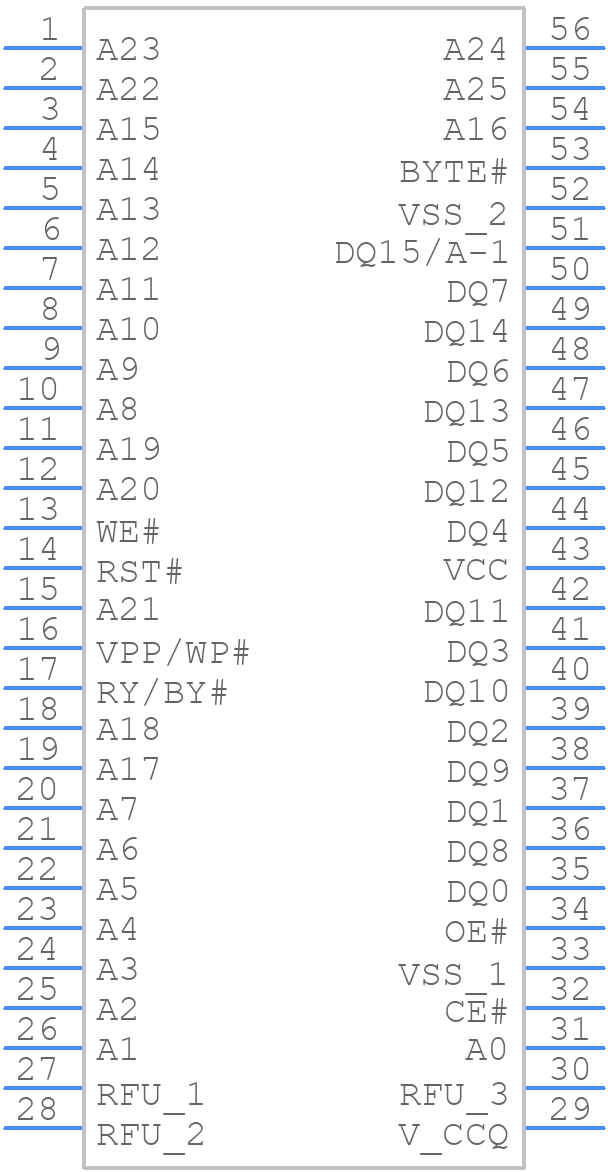

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MT28EW256ABA1LJS-0SIT by Micron Technology Inc
Results Overview of MT28EW256ABA1LJS-0SIT by Micron Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MT28EW256ABA1LJS-0SIT Information
MT28EW256ABA1LJS-0SIT by Micron Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for MT28EW256ABA1LJS-0SIT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82AJ0625
|
Newark | Flash Memory, 256Mbit, -40 To 85Deg C |Micron MT28EW256ABA1LJS-0SIT RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 80 |
|
$6.9400 / $8.3300 | Buy Now |
|
DISTI #
557-1781-ND
|
DigiKey | IC FLASH 256MBIT PARALLEL 56TSOP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
682 In Stock |
|
$6.5388 / $8.3300 | Buy Now |
|
DISTI #
MT28EW256ABA1LJS-0SIT
|
Avnet Americas | Flash Memory, Parallel NOR, 256 Mbit, 32M x 8bit, 16M x 16bit, Parallel, TSOP, 56 Pins - Trays (Alt: MT28EW256ABA1LJS-0SIT) RoHS: Compliant Min Qty: 576 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$5.0255 / $5.3751 | Buy Now |
|
DISTI #
340-284797-TRAY
|
Mouser Electronics | NOR Flash Parallel 256Mbit 16 3 Volts 56/56 TSOP 1 IT RoHS: Compliant | 1881 |
|
$6.6600 / $8.3300 | Buy Now |
|
|
Future Electronics | 3.6 V 50 mA 256 Mbit 75 ns Parallel FLASH - NOR Memory IC - TSOP-56 Min Qty: 96 Package Multiple: 96 |
960 null |
|
$4.6000 / $4.7500 | Buy Now |
|
DISTI #
MT28EW256ABA1LJS-0SIT
|
Avnet Asia | Flash Memory, Parallel NOR, 256 Mbit, 32M x 8bit, 16M x 16bit, Parallel, TSOP, 56 Pins (Alt: MT28EW256ABA1LJS-0SIT) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 17 Weeks, 1 Days | 0 |
|
$5.1412 / $5.7500 | Buy Now |
|
DISTI #
MT28EW256ABA1LJS-0SIT
|
Avnet Silica | Flash Memory Parallel NOR 256 Mbit 32M x 8bit 16M x 16bit Parallel TSOP 56 Pins (Alt: MT28EW256ABA1LJS-0SIT) RoHS: Compliant Min Qty: 576 Package Multiple: 576 Lead time: 17 Weeks, 0 Days | Silica - 576 |
|
Buy Now | |
|
DISTI #
MT28EW256ABA1LJS-0SIT
|
EBV Elektronik | Flash Memory Parallel NOR 256 Mbit 32M x 8bit 16M x 16bit Parallel TSOP 56 Pins (Alt: MT28EW256ABA1LJS-0SIT) RoHS: Compliant Min Qty: 576 Package Multiple: 576 Lead time: 22 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | TFSOP-56-18.4mm Microcontrollers (MCU/MPU/SOC) ROHS | 2 |
|
$10.7058 / $13.5135 | Buy Now |
|
|
Win Source Electronics | IC FLASH 256M PARALLEL 56TSOP | 20500 |
|
$5.4412 / $8.1612 | Buy Now |
Part Details for MT28EW256ABA1LJS-0SIT
MT28EW256ABA1LJS-0SIT CAD Models
MT28EW256ABA1LJS-0SIT Part Data Attributes
|
|
MT28EW256ABA1LJS-0SIT
Micron Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MT28EW256ABA1LJS-0SIT
Micron Technology Inc
Flash, 16MX16, 70ns, PDSO56, TSOP-56
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRON TECHNOLOGY INC | |
| Package Description | TSOP-56 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2016-04-22 | |
| Samacsys Manufacturer | Micron | |
| Access Time-Max | 70 ns | |
| Alternate Memory Width | 8 | |
| JESD-30 Code | R-PDSO-G56 | |
| Length | 18.4 mm | |
| Memory Density | 268435456 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 56 | |
| Number of Words | 16777216 words | |
| Number of Words Code | 16000000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 16MX16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programming Voltage | 3 V | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Type | NOR TYPE | |
| Width | 14 mm |
MT28EW256ABA1LJS-0SIT Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MT28EW256ABA1LJS-0SIT is -40°C to 85°C.
-
The device requires a specific power-up and power-down sequence to ensure proper operation. Refer to the datasheet for the recommended power-up and power-down procedures.
-
The recommended PCB layout and design considerations for the MT28EW256ABA1LJS-0SIT include using a 4-layer PCB, following the datasheet's recommended pinout, and ensuring proper decoupling and signal integrity.
-
The MT28EW256ABA1LJS-0SIT supports various error correction and detection mechanisms, including ECC and CRC. Refer to the datasheet for implementation details.
-
The recommended settings for the device's timing parameters can be found in the datasheet. The clock frequency is typically set to 100 MHz, and the latency is typically set to 5-5-5 (tCL-tRCD-tRP).
