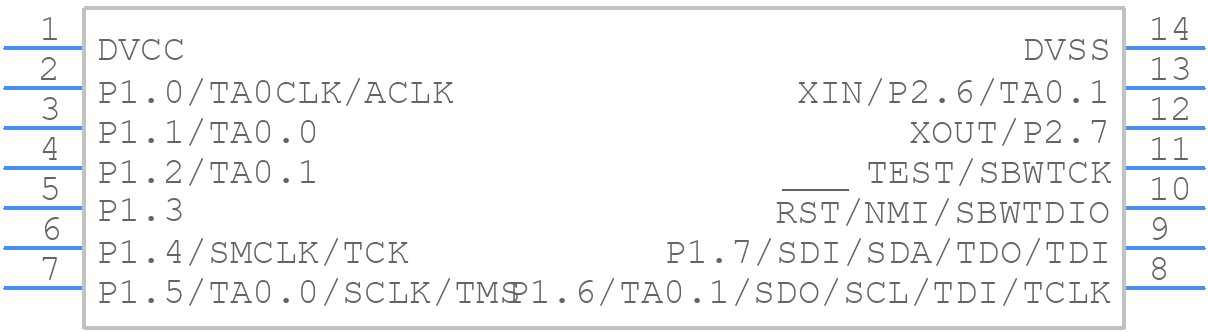

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MSP430G2121IN14 by Texas Instruments
Results Overview of MSP430G2121IN14 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
MSP430G2121IN14 Information
MSP430G2121IN14 by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MSP430G2121IN14
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-MSP430G2121IN14-ND
|
DigiKey | IC MCU 16BIT 1KB FLASH 14DIP Min Qty: 241 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
399 In Stock |
|
$1.2500 | Buy Now |
|
DISTI #
296-27483-5-ND
|
DigiKey | IC MCU 16BIT 1KB FLASH 14DIP Min Qty: 241 Lead time: 18 Weeks Container: Tube | Temporarily Out of Stock |
|
$1.0293 | Buy Now |
|
DISTI #
595-MSP430G2121IN14
|
Mouser Electronics | 16-bit Microcontrollers - MCU Ultra Low Pwr Micro controller RoHS: Compliant | 0 |
|
$0.9450 / $1.0200 | Order Now |
|
DISTI #
86007091
|
Verical | MCU 16-bit MSP430 RISC 1KB Flash 2.5V/3.3V 14-Pin PDIP Tube RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 1001 | Americas - 399 |
|
$0.9293 / $1.5000 | Buy Now |
|
|
Rochester Electronics | MSP430G2121 - Mixed Signal Microcontroller RoHS: Compliant Status: Active Min Qty: 1 | 399 |
|
$0.7434 / $1.2000 | Buy Now |
Part Details for MSP430G2121IN14
MSP430G2121IN14 CAD Models
MSP430G2121IN14 Part Data Attributes
|
|
MSP430G2121IN14
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MSP430G2121IN14
Texas Instruments
16 MHz MCU with 1KB Flash, 128B SRAM, SPI/I2C, timer 14-PDIP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, DIP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | NO | |
| Additional Feature | ALSO OPERATES 1.8 V MINIMUM SUPPLY AT 6 MHZ AND 2.7 V MINIMUM SUPPLY AT 12 MHZ | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | YES | |
| CPU Family | MSP430 | |
| Clock Frequency-Max | 0.032 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e4 | |
| Length | 19.3 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of DMA Channels | 1 | |
| Number of External Interrupts | ||
| Number of I/O Lines | 10 | |
| Number of Serial I/Os | ||
| Number of Terminals | 14 | |
| Number of Timers | 2 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 128 | |
| RAM (words) | 0.125 | |
| ROM (words) | 1024 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 5.08 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 0.37 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.2 V | |
| Supply Voltage-Nom | 2.2 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.35 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
