Microcontrollers and Processors / Microcontrollers / MSP430FR5739IRHAT
Datasheets
MSP430FR5739IRHAT by:

24 MHz MCU with 16KB FRAM, 1KB SRAM, 10-bit ADC , comparator, UART/SPI/I2C, timer 40-VQFN -40 to 85

Part Details for MSP430FR5739IRHAT by Texas Instruments

Results Overview of MSP430FR5739IRHAT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MSP430FR5739IRHAT Information

MSP430FR5739IRHAT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MSP430FR5739IRHAT

Part # Distributor Description Stock Price Buy
DISTI # 296-29751-1-ND
DigiKey IC MCU 16BIT 16KB FRAM 40VQFN Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4739
In Stock
  • 1 $4.2000
  • 10 $3.1790
  • 25 $2.9240
  • 100 $2.6438
  • 250 $2.1338
  • 500 $2.1062
$2.1062 / $4.2000 Buy Now
DISTI # 595-SP430FR5739IRHAT
Mouser Electronics 16-bit Microcontrollers - MCU MIXED SIGNAL MCU A 595-SP430FR5739IRHAR RoHS: Compliant 807
  • 1 $3.1200
  • 10 $2.6500
  • 25 $2.5300
  • 100 $2.4000
  • 250 $2.1000
$2.1000 / $3.1200 Buy Now
DISTI # V72:2272_07302591
Arrow Electronics MCU 16-bit MSP430 RISC 2.5V/3.3V 40-Pin VQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2229 Container: Cut Strips Americas - 5
  • 1 $2.1610
$2.1610 Buy Now
DISTI # 63331301
Verical MCU 16-bit MSP430 RISC 2.5V/3.3V 40-Pin VQFN EP T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2229 Americas - 5
  • 3 $2.1610
$2.1610 Buy Now
Bristol Electronics   Min Qty: 2 16
  • 2 $4.4800
  • 7 $2.9120
$2.9120 / $4.4800 Buy Now
Quest Components   12
  • 1 $6.0000
  • 3 $4.0000
  • 7 $3.0000
$3.0000 / $6.0000 Buy Now
NexGen Digital   25
RFQ
DISTI # MSP430FR5739IRHAT
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 139
  • 1 $2.2300
  • 10 $2.2200
  • 50 $2.1600
  • 1,000 $1.9600
$1.9600 / $2.2300 Buy Now
Vyrian Peripheral ICs 933
RFQ

Part Details for MSP430FR5739IRHAT

MSP430FR5739IRHAT CAD Models

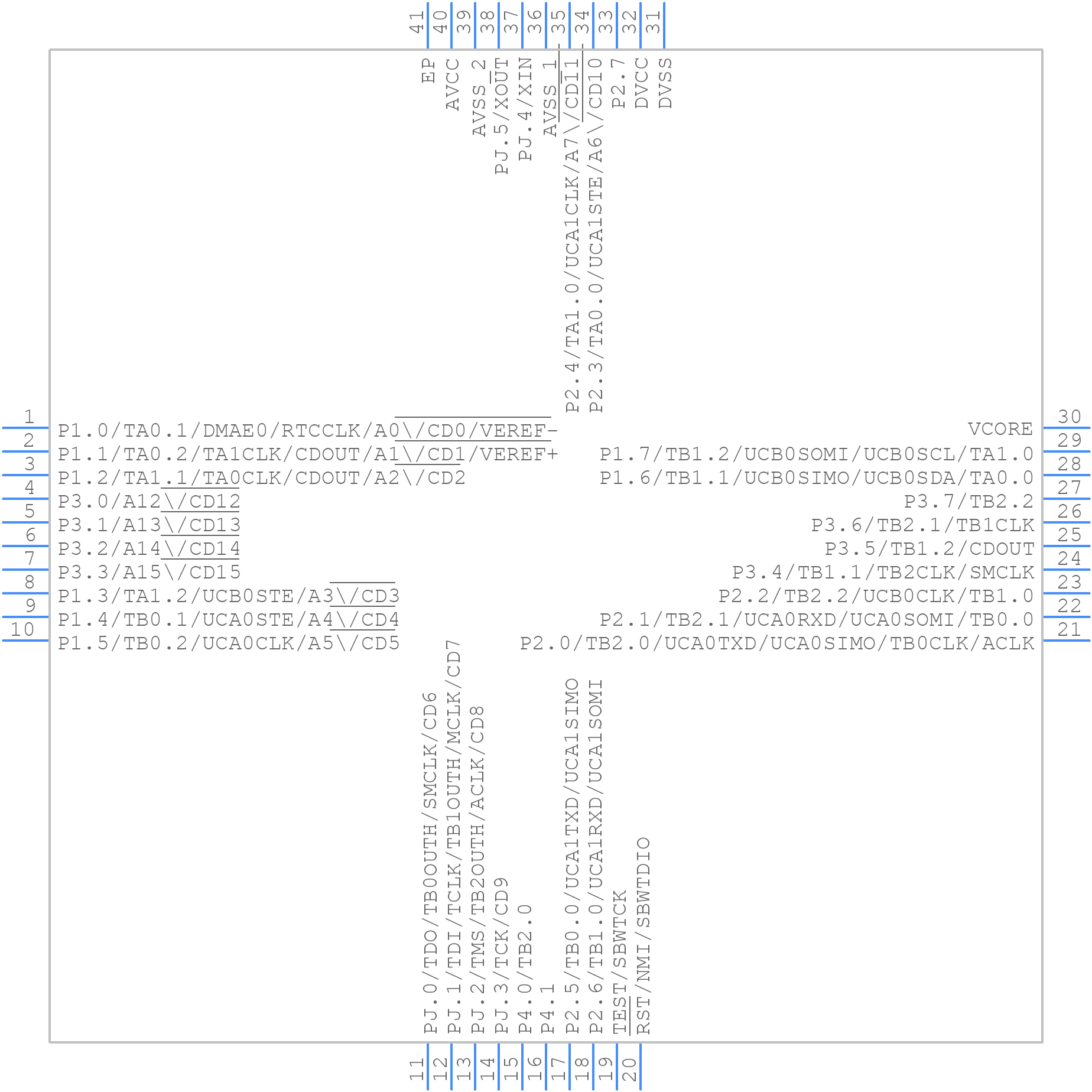

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

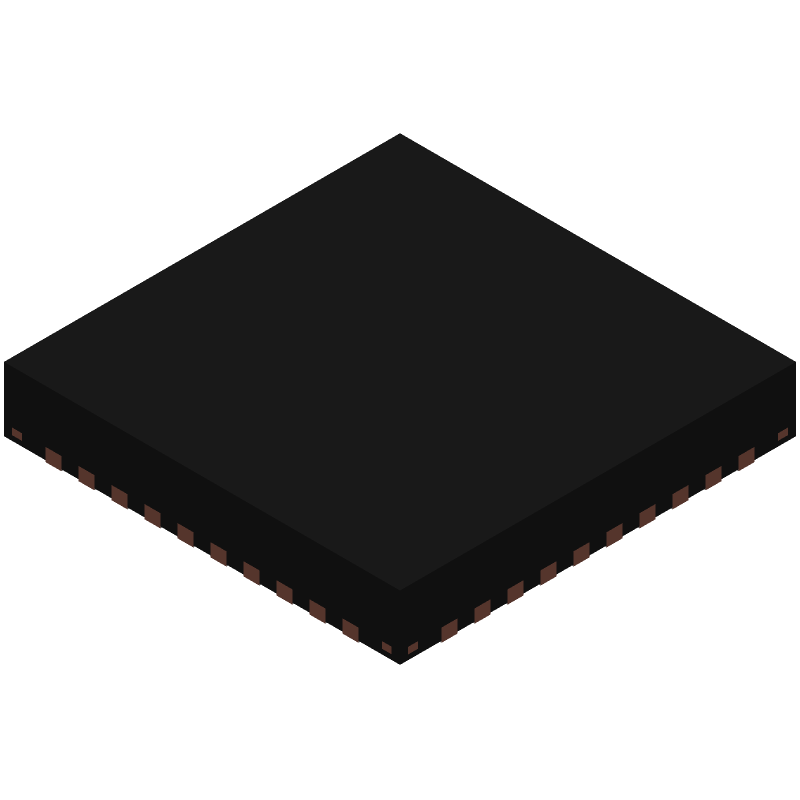

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430FR5739IRHAT Part Data Attributes

Parametric Data
MSP430FR5739IRHAT Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430FR5739IRHAT Texas Instruments 24 MHz MCU with 16KB FRAM, 1KB SRAM, 10-bit ADC , comparator, UART/SPI/I2C, timer 40-VQFN -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code QFN
Package Description GREEN, PLASTIC, MO-220VJJD-2, VQFN-40
Pin Count 40
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Samacsys Manufacturer Texas Instruments
Has ADC YES
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family MSP430
Clock Frequency-Max 24 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N40
JESD-609 Code e4
Length 6 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 3
Number of External Interrupts
Number of I/O Lines 32
Number of Serial I/Os 1
Number of Terminals 40
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC40,.24SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 1024
RAM (words) 1
ROM (words) 16384
ROM Programmability FRAM
Seated Height-Max 1 mm
Speed 24 MHz
Supply Current-Max 4.3 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 6 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for MSP430FR5739IRHAT

This table gives cross-reference parts and alternative options found for MSP430FR5739IRHAT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430FR5739IRHAT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MSP430FR5739IRHAR Texas Instruments $1.3609 24 MHz MCU with 16KB FRAM, 1KB SRAM, 10-bit ADC , comparator, UART/SPI/I2C, timer 40-VQFN -40 to 85 MSP430FR5739IRHAT vs MSP430FR5739IRHAR
V62/14644-01XE Texas Instruments Check for Price MSP430FR5739 24 MHz ULP microcontroller with 16 KB FRAM, 1 KB SRAM, 32 IO, 10-bit ADC & comparator 40-VQFN -55 to 85 MSP430FR5739IRHAT vs V62/14644-01XE
MSP430FR5739RHA Texas Instruments Check for Price RISC MICROCONTROLLER MSP430FR5739IRHAT vs MSP430FR5739RHA
MSP430FR5739IRHA Texas Instruments Check for Price 16-BIT, 24MHz, RISC MICROCONTROLLER, PQCC40, PLASTIC, MO-220VJJD-2, VQFN-40 MSP430FR5739IRHAT vs MSP430FR5739IRHA
XMS430FR5739IRHAR Texas Instruments Check for Price IC 16-BIT, 24 MHz, RISC MICROCONTROLLER, PQCC40, PLASTIC, MO-220VJJD-2, VQFN-40, Microcontroller MSP430FR5739IRHAT vs XMS430FR5739IRHAR

MSP430FR5739IRHAT Related Parts

MSP430FR5739IRHAT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the MSP430FR5739IRHAT is 24 MHz.

  • The MSP430FR5739IRHAT has 16 KB of flash memory.

  • Yes, the MSP430FR5739IRHAT can operate at 3.3V, but it is also 1.8V tolerant.

  • No, the MSP430FR5739IRHAT does not have a built-in USB interface.

  • The MSP430FR5739IRHAT has 8-channel, 10-bit analog-to-digital converters (ADCs).
