MSP430F6725AIPZ by: Texas Instruments

Single-phase metering SoC with 2 Sigma-Delta ADCs, LCD, real-time clock, 128KB Flash, 4KB RAM 100-LQFP -40 to 85

Part Details for MSP430F6725AIPZ by Texas Instruments

Results Overview of MSP430F6725AIPZ by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

MSP430F6725AIPZ Information

MSP430F6725AIPZ by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
MSP430F6725AIPZ Texas Instruments Single-phase Metering SoC with 2 Sigma-Delta ADCs, LCD, Real-Time Clock, 128KB Flash, 4KB RAM 100-LQFP -40 to 85
MSP430F6725AIPZR Texas Instruments Single-phase Metering SoC with 2 Sigma-Delta ADCs, LCD, Real-Time Clock, 128KB Flash, 4KB RAM 100-LQFP -40 to 85

Price & Stock for MSP430F6725AIPZ

Part # Distributor Description Stock Price Buy
DISTI # MSP430F6725AIPZ-ND
DigiKey IC MCU 16BIT 128KB FLASH 100LQFP Min Qty: 180 Lead time: 18 Weeks Container: Tray Temporarily Out of Stock
  • 180 $5.3699
$5.3699 Buy Now
DISTI # 595-MSP430F6725AIPZ
Mouser Electronics 16-bit Microcontrollers - MCU Single-phase meterin g SoC with 2 Sigma-D A 595-MSP430F6725AIPZR RoHS: Compliant 0
  • 180 $5.3600
$5.3600 Order Now

Part Details for MSP430F6725AIPZ

MSP430F6725AIPZ CAD Models

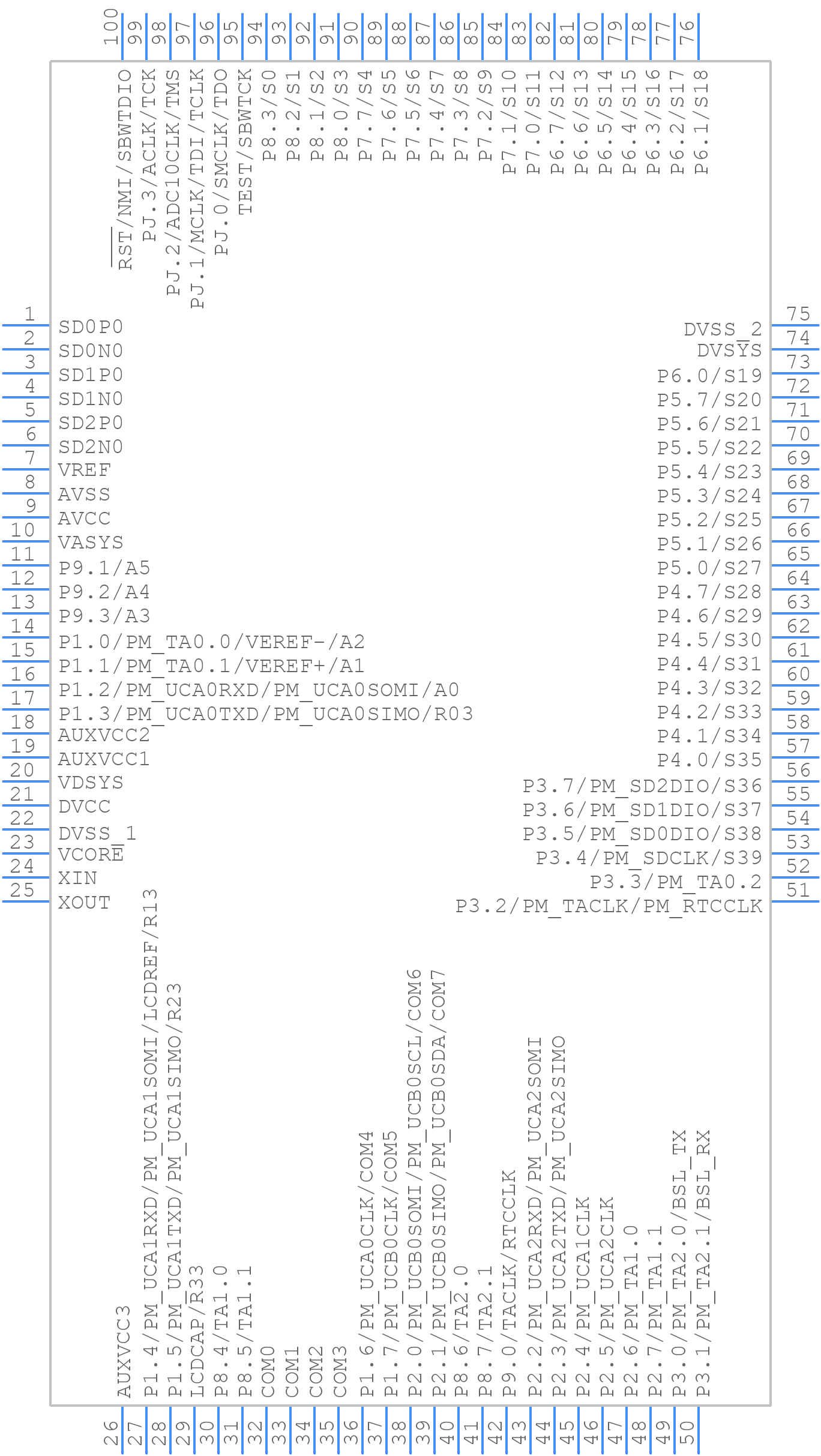

  • Part Symbol
