25 MHz MCU with 128KB Flash, 8KB SRAM, 10-bit ADC, comparator, DMA, 1.8V Split-Rail I/O 64-VQFN -40 to 85

Part Details for MSP430F5229IRGCT by Texas Instruments

Results Overview of MSP430F5229IRGCT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MSP430F5229IRGCT Information

MSP430F5229IRGCT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MSP430F5229IRGCT

Part # Distributor Description Stock Price Buy
DISTI # 296-MSP430F5229IRGCT-ND
DigiKey IC MCU 16BIT 128KB FLASH 64VQFN Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 455
In Stock
  • 1 $7.7800
  • 10 $6.0160
  • 25 $5.5756
  • 100 $5.0917
  • 250 $4.8611
  • 500 $4.7221
  • 750 $4.6524
  • 1,250 $4.5753
  • 1,750 $4.5302
$4.5302 / $7.7800 Buy Now
DISTI # 595-MSP430F5229IRGCT
Mouser Electronics 16-bit Microcontrollers - MCU Mixed Signal MCU A 595-MSP430F5229IRGCR RoHS: Compliant 0
  • 250 $4.8600
  • 500 $4.6500
  • 1,000 $4.5300
$4.5300 / $4.8600 Order Now

Part Details for MSP430F5229IRGCT

MSP430F5229IRGCT CAD Models

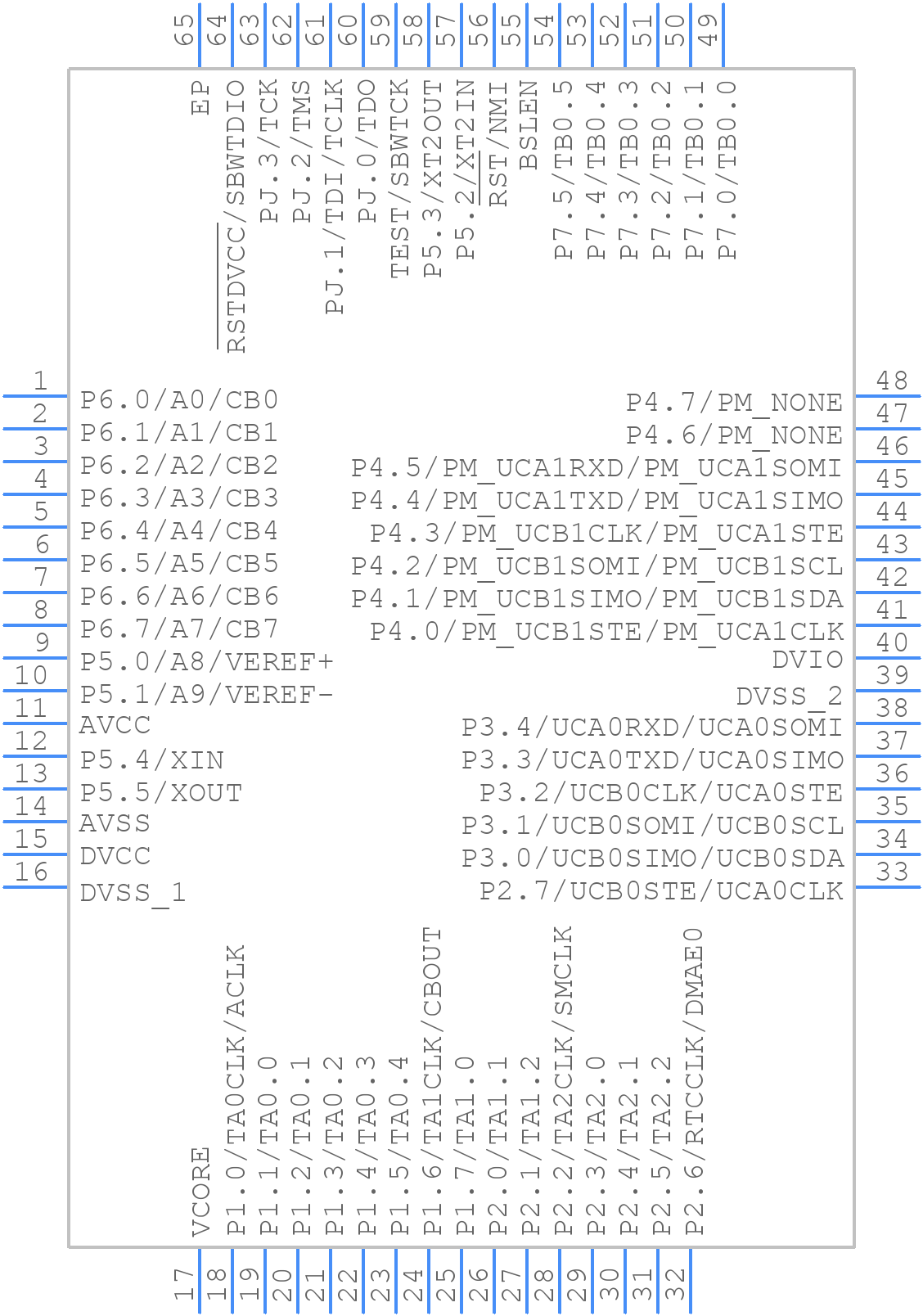

  • Part Symbol

    Part Symbol

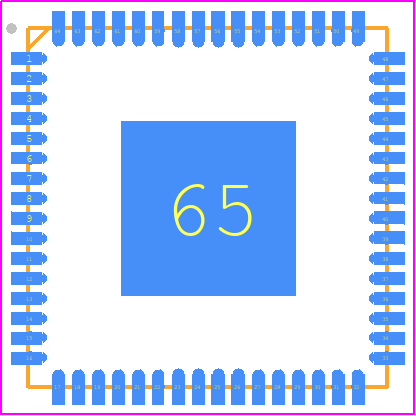

  • Footprint

    footprint

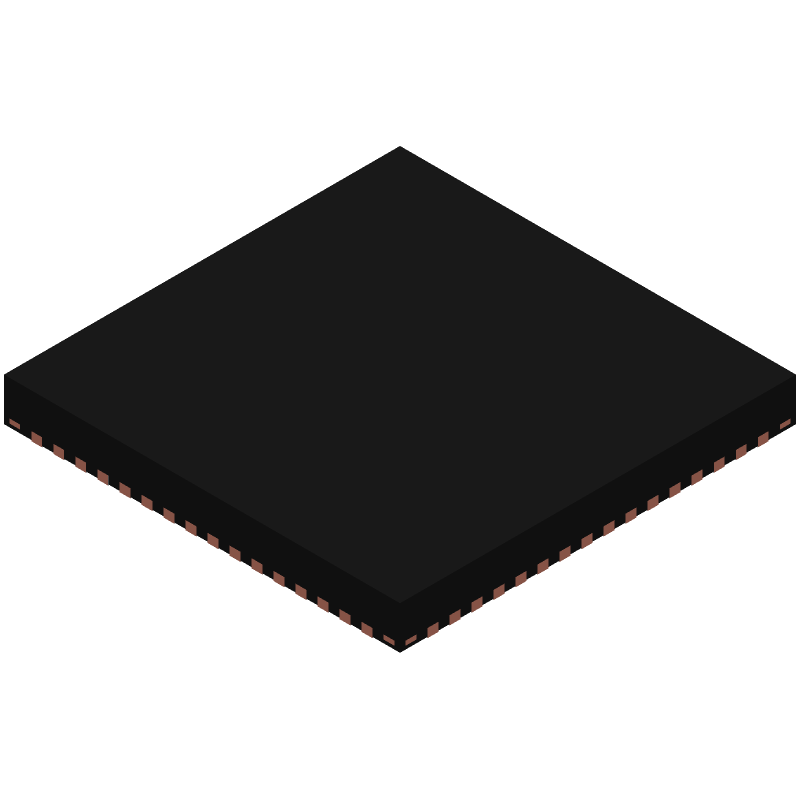

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430F5229IRGCT Part Data Attributes

Parametric Data
MSP430F5229IRGCT Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430F5229IRGCT Texas Instruments 25 MHz MCU with 128KB Flash, 8KB SRAM, 10-bit ADC, comparator, DMA, 1.8V Split-Rail I/O 64-VQFN -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code QFN
Package Description VQFN-64
Pin Count 64
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Samacsys Manufacturer Texas Instruments
Has ADC YES
Additional Feature IT ALSO OPERATES IN 1.8V AT 8MHZ
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family MSP430
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N64
JESD-609 Code e4
Length 9 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 3
Number of External Interrupts
Number of I/O Lines 53
Number of Serial I/Os 2
Number of Terminals 64
Number of Timers 18
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC64,.35SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 8192
RAM (words) 8
ROM (words) 65536
ROM Programmability FLASH
Seated Height-Max 1 mm
Speed 25 MHz
Supply Current-Max 11 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 9 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for MSP430F5229IRGCT

This table gives cross-reference parts and alternative options found for MSP430F5229IRGCT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430F5229IRGCT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MSP430F5229IRGCR Texas Instruments $2.6963 25 MHz MCU with 128KB Flash, 8KB SRAM, 10-bit ADC, comparator, DMA, 1.8V Split-Rail I/O 64-VQFN -40 to 85 MSP430F5229IRGCT vs MSP430F5229IRGCR
MSP430F5229IRGC Texas Instruments Check for Price IC RISC MICROCONTROLLER, Microcontroller MSP430F5229IRGCT vs MSP430F5229IRGC
MSP430F5229RGC Texas Instruments Check for Price IC RISC MICROCONTROLLER, Microcontroller MSP430F5229IRGCT vs MSP430F5229RGC
MSP430F5229IZQE Texas Instruments Check for Price Ultra-Low Power 1.8V Split-Rail I/O 80-BGA MICROSTAR JUNIOR -40 to 85 MSP430F5229IRGCT vs MSP430F5229IZQE
MSP430F5219IRGC Texas Instruments Check for Price IC RISC MICROCONTROLLER, Microcontroller MSP430F5229IRGCT vs MSP430F5219IRGC
MSP430F5227IZQE Texas Instruments Check for Price 25 MHz MCU with 64KB Flash, 8KB SRAM, 10-bit ADC, Comparator, DMA, UART/SPI/I2C, 1.8V Split-Rail I/O 80-BGA MICROSTAR JUNIOR -40 to 85 MSP430F5229IRGCT vs MSP430F5227IZQE
MSP430F5227IRGC Texas Instruments Check for Price IC RISC MICROCONTROLLER, Microcontroller MSP430F5229IRGCT vs MSP430F5227IRGC
MSP430F5219IZQER Texas Instruments Check for Price MSP430F522x, MSP430F521x Mixed Signal Microcontroller 80-BGA MICROSTAR JUNIOR -40 to 85 MSP430F5229IRGCT vs MSP430F5219IZQER
MSP430F5218IZQE Texas Instruments Check for Price 16-BIT, FLASH, 25MHz, RISC MICROCONTROLLER, PBGA80, GREEN, PLASTIC, BGA-80 MSP430F5229IRGCT vs MSP430F5218IZQE
MSP430F5227IRGCT Texas Instruments Check for Price 16-BIT, FLASH, 25MHz, RISC MICROCONTROLLER, PQCC64, GREEN, PLASTIC, VQFN-64 MSP430F5229IRGCT vs MSP430F5227IRGCT

MSP430F5229IRGCT Related Parts
