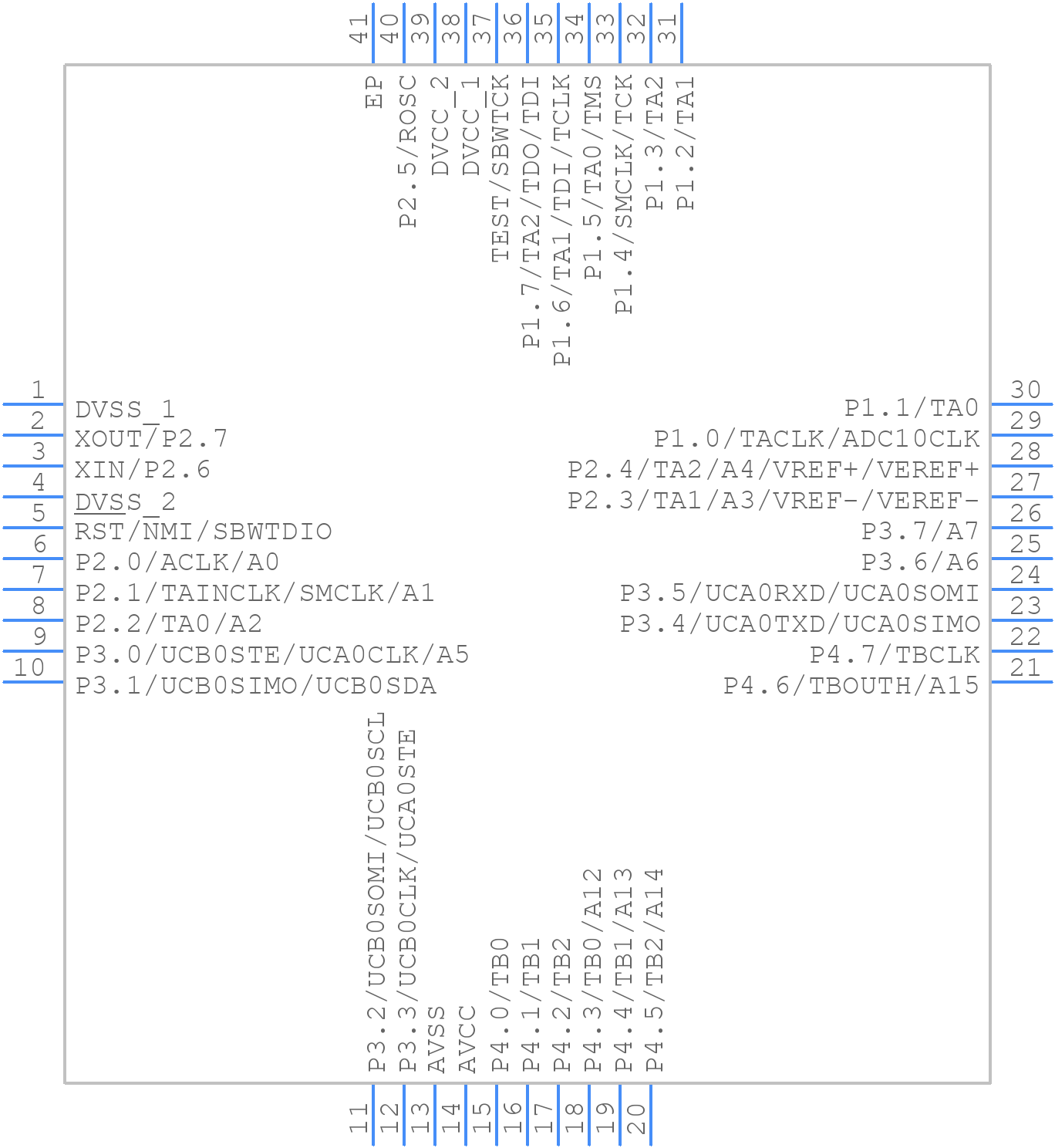

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MSP430F2232IRHAT by Texas Instruments
Results Overview of MSP430F2232IRHAT by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
MSP430F2232IRHAT Information
MSP430F2232IRHAT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| MSP430F2232IRHAT | Texas Instruments | 16-bit Ultra-Low-Power Microcontroller, 8KB Flash, 512B RAM 40-VQFN -40 to 85 |
Price & Stock for MSP430F2232IRHAT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-21445-1-ND
|
DigiKey | IC MCU 16BIT 8KB FLASH 40VQFN Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
542 In Stock |
|
$2.7792 / $5.0100 | Buy Now |
|
DISTI #
595-MSP430F2232IRHAT
|
Mouser Electronics | 16-bit Microcontrollers - MCU 16-Bit 8kB Flash 512 RAM A 595-MSP430F2232IRHAR RoHS: Compliant | 297 |
|
$2.5600 / $3.3500 | Buy Now |
|
|
Bristol Electronics | 643 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 2 | 12 |
|
$2.9120 / $4.4800 | Buy Now |
|
|
Quest Components | IC,MICROCONTROLLER,16-BIT,MSP430 CPU,CMOS,LLCC,40PIN,PLASTIC | 514 |
|
$2.5369 / $4.6125 | Buy Now |
|
|
Quest Components | IC,MICROCONTROLLER,16-BIT,MSP430 CPU,CMOS,LLCC,40PIN,PLASTIC | 9 |
|
$3.0000 / $6.0000 | Buy Now |
|
|
Rochester Electronics | MSP430F2232 16-bit Ultra-Low-Power Microcontroller, 8KB Flash, 512B RAM RoHS: Compliant Status: Active Min Qty: 1 | 47 |
|
$2.1600 / $2.7000 | Buy Now |
|
DISTI #
SMC-MSP430F2232IRHAT
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 1484 |
|
RFQ | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 2 |
|
$5.0000 / $7.6900 | Buy Now |
|
|
Vyrian | Peripheral ICs | 139 |
|
RFQ |
Part Details for MSP430F2232IRHAT
MSP430F2232IRHAT CAD Models
MSP430F2232IRHAT Part Data Attributes
|
|
MSP430F2232IRHAT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MSP430F2232IRHAT
Texas Instruments
16 MHz MCU with 8KB Flash, 512B SRAM, UART/SPI/I2C, timer 40-VQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Pin Count | 40 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Additional Feature | ALSO OPERATES AT 1.8 V MINIMUM SUPPLY AT 4.15 MHZ | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | YES | |
| CPU Family | MSP430 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQCC-N40 | |
| JESD-609 Code | e4 | |
| Length | 6 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | ||
| Number of I/O Lines | 32 | |
| Number of Serial I/Os | 2 | |
| Number of Terminals | 40 | |
| Number of Timers | 6 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC40,.24SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 512 | |
| RAM (words) | 0.5 | |
| ROM (words) | 8192 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 0.55 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.2 V | |
| Supply Voltage-Nom | 2.2 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
