MSP430F2132IRHBT by:

16 MHz MCU with 8KB Flash, 512B SRAM, 10-bit ADC, comparator, I2C/SPI/UART 32-VQFN -40 to 85

Part Details for MSP430F2132IRHBT by Texas Instruments

Results Overview of MSP430F2132IRHBT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Transportation and Logistics Healthcare Agriculture Technology Telecommunications Communication and Networking Automotive Robotics and Drones

MSP430F2132IRHBT Information

MSP430F2132IRHBT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MSP430F2132IRHBT

Part # Distributor Description Stock Price Buy
DISTI # 296-25176-1-ND
DigiKey IC MCU 16BIT 8KB FLASH 32VQFN Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 879
In Stock
  • 1 $5.0900
  • 10 $3.8800
  • 25 $3.5776
  • 100 $3.2453
  • 250 $2.6100
$2.6100 / $5.0900 Buy Now
DISTI # 595-MSP430F2132IRHBT
Mouser Electronics 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr Mic rocontroller A 595-MSP430F2132IRHBR RoHS: Compliant 443
  • 1 $4.5700
  • 10 $3.6000
  • 25 $3.3500
  • 100 $3.0800
  • 250 $2.6100
$2.6100 / $4.5700 Buy Now
DISTI # V72:2272_07299315
Arrow Electronics MCU 16-bit MSP430 RISC 8KB Flash 2.5V/3.3V 32-Pin VQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2204 Container: Cut Strips Americas - 121
  • 1 $2.7610
  • 10 $2.7330
  • 25 $2.7050
  • 100 $2.6780
$2.6780 / $2.7610 Buy Now
DISTI # 61569299
Verical MCU 16-bit MSP430 RISC 8KB Flash 2.5V/3.3V 32-Pin VQFN EP T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2204 Americas - 121
  • 3 $2.7610
  • 10 $2.7330
  • 25 $2.7050
  • 100 $2.6780
$2.6780 / $2.7610 Buy Now
Rochester Electronics MSP430F2132 16-bit Ultra-Low-Power Microcontroller, 8kB Flash, 512B RAM, 10 bit ADC, 1 USCI RoHS: Compliant Status: Active Min Qty: 1 11
  • 25 $2.7500
  • 100 $2.6100
  • 500 $2.4800
  • 1,000 $2.3400
  • 10,000 $2.2000
$2.2000 / $2.7500 Buy Now
DISTI # MSP430F2132IRHBT
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 802
  • 1 $4.6500
  • 10 $3.4600
  • 50 $3.2700
  • 100 $2.9700
  • 200 $2.9000
  • 250 $2.3400
  • 500 $2.2900
  • 1,000 $2.1400
  • 2,000 $2.1300
  • 4,000 $1.9800
$1.9800 / $4.6500 Buy Now
Vyrian Peripheral ICs 19611
RFQ
Win Source Electronics IC MCU 16BIT 8KB FLASH 32VQFN 42790
  • 35 $1.7405
  • 75 $1.6282
  • 115 $1.5721
  • 160 $1.4598
  • 210 $1.4037
  • 260 $1.3476
$1.3476 / $1.7405 Buy Now

Part Details for MSP430F2132IRHBT

MSP430F2132IRHBT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

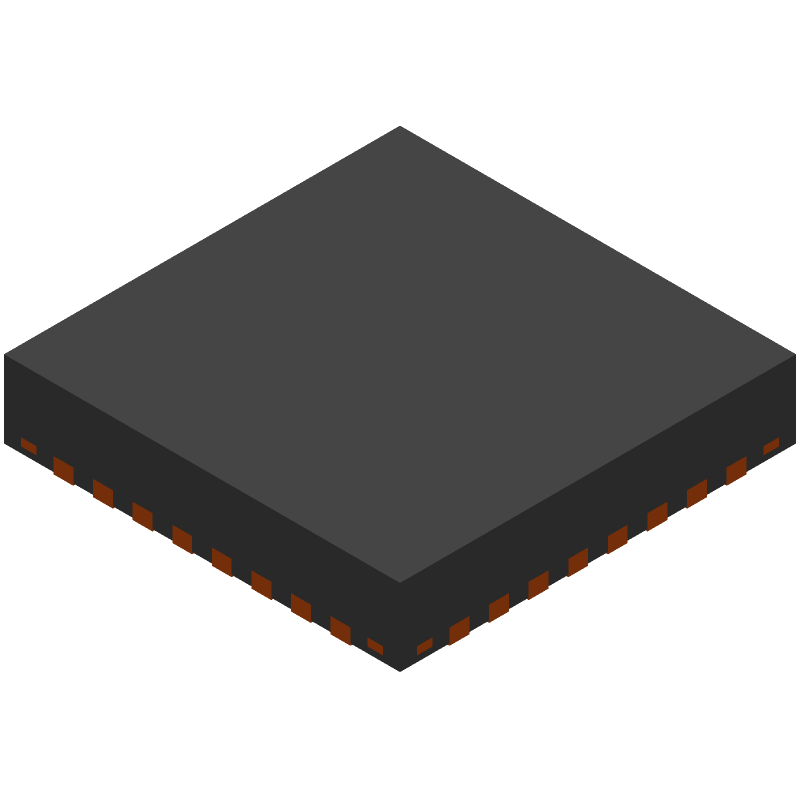

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430F2132IRHBT Part Data Attributes

Parametric Data
MSP430F2132IRHBT Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430F2132IRHBT Texas Instruments 16 MHz MCU with 8KB Flash, 512B SRAM, 10-bit ADC, comparator, I2C/SPI/UART 32-VQFN -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code QFN
Package Description GREEN, PLASTIC, QFN-32
Pin Count 32
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Samacsys Manufacturer Texas Instruments
Has ADC YES
Additional Feature ALSO OPERATES AT 1.8 V AT 6 MHZ
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family MSP430
Clock Frequency-Max 16 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N32
JESD-609 Code e4
Length 5 mm
Low Power Mode YES
Moisture Sensitivity Level 2
Number of DMA Channels
Number of External Interrupts
Number of I/O Lines 24
Number of Serial I/Os 1
Number of Terminals 32
Number of Timers 2
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC32,.2SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 512
RAM (words) 0.5
ROM (words) 8192
ROM Programmability FLASH
Seated Height-Max 1 mm
Speed 16 MHz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for MSP430F2132IRHBT

This table gives cross-reference parts and alternative options found for MSP430F2132IRHBT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430F2132IRHBT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MSP430F2132TRHB Texas Instruments Check for Price 16-BIT, FLASH, 16MHz, RISC MICROCONTROLLER, PQCC32, PLASTIC, QFN-32 MSP430F2132IRHBT vs MSP430F2132TRHB
Part Number Manufacturer Composite Price Description Compare
MSP430F2132TPWR Texas Instruments $1.7141 16 MHz MCU with 8KB Flash, 512B SRAM, 10-bit ADC, comparator, I2C/SPI/UART 28-TSSOP -40 to 105 MSP430F2132IRHBT vs MSP430F2132TPWR
MSP430F2132TRHBR Texas Instruments $1.7141 16 MHz MCU with 8KB Flash, 512B SRAM, 10-bit ADC, comparator, I2C/SPI/UART 32-VQFN -40 to 105 MSP430F2132IRHBT vs MSP430F2132TRHBR
MSP430F2132IRHBR Texas Instruments $1.7141 16 MHz MCU with 8KB Flash, 512B SRAM, 10-bit ADC, comparator, I2C/SPI/UART 32-VQFN -40 to 85 MSP430F2132IRHBT vs MSP430F2132IRHBR
MSP430F2132TRHBT Texas Instruments $1.9123 16 MHz MCU with 8KB Flash, 512B SRAM, 10-bit ADC, comparator, I2C/SPI/UART 32-VQFN -40 to 105 MSP430F2132IRHBT vs MSP430F2132TRHBT
MSP430F2132IRHB Texas Instruments Check for Price 16-bit Ultra-Low-Power Microcontroller, 8kB Flash, 512B RAM, 10 bit ADC, 1 USCI 32-VQFN -40 to 85 MSP430F2132IRHBT vs MSP430F2132IRHB

MSP430F2132IRHBT Related Parts

MSP430F2132IRHBT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the MSP430F2132IRHBT is 16 MHz.

  • The MSP430F2132IRHBT has 8KB of flash memory.

  • Yes, the MSP430F2132IRHBT can operate at 3.3V, but it is also compatible with 5V systems.

  • No, the MSP430F2132IRHBT does not have built-in USB support. However, it can be used with external USB controllers.

  • The MSP430F2132IRHBT has 16 GPIO pins.
