Microcontrollers and Processors / Microcontrollers / MSP430F2001IPWR
Datasheets
MSP430F2001IPWR by: Texas Instruments

16 MHz MCU with 1KB Flash, 128B SRAM, timer, comparator 14-TSSOP -40 to 85

Part Details for MSP430F2001IPWR by Texas Instruments

Results Overview of MSP430F2001IPWR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Telecommunications Automotive Consumer Electronics Education and Research Security and Surveillance Computing and Data Storage Aerospace and Defense Healthcare Robotics and Drones

MSP430F2001IPWR Information

MSP430F2001IPWR by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MSP430F2001IPWR

Part # Distributor Description Stock Price Buy
DISTI # 296-19686-1-ND
DigiKey IC MCU 16BIT 1KB FLASH 14TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4700
In Stock
  • 1 $1.4600
  • 10 $1.0660
  • 25 $0.9672
  • 100 $0.8582
  • 250 $0.8063
  • 500 $0.7750
  • 1,000 $0.7492
  • 2,000 $0.7280
  • 4,000 $0.7106
  • 6,000 $0.7019
  • 10,000 $0.6922
  • 14,000 $0.6865
$0.6865 / $1.4600 Buy Now
DISTI # 595-MSP430F2001IPWR
Mouser Electronics 16-bit Microcontrollers - MCU 16-Bit Ultra Low Pwr 1kB Flash 128B RAM A 595-MSP430F2001IPW RoHS: Compliant 2984
  • 1 $1.2100
  • 10 $0.9240
  • 25 $0.8800
  • 100 $0.7580
  • 250 $0.7370
  • 500 $0.7210
  • 1,000 $0.6980
  • 2,000 $0.6980
  • 4,000 $0.6950
  • 8,000 $0.6770
$0.6770 / $1.2100 Buy Now
DISTI # J56:1989_00022239
Arrow Electronics MCU 16-bit MSP430 RISC 1KB Flash 2.5V/3.3V 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks Europe - 6000
  • 2,000 $0.6616
  • 4,000 $0.6616
  • 6,000 $0.6616
  • 10,000 $0.6616
  • 14,000 $0.6616
$0.6616 Buy Now
DISTI # V72:2272_07299172
Arrow Electronics MCU 16-bit MSP430 RISC 1KB Flash 2.5V/3.3V 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2207 Container: Cut Strips Americas - 2215
  • 1 $1.1962
  • 10 $0.9181
  • 25 $0.8581
  • 100 $0.7554
  • 250 $0.7347
  • 500 $0.6835
  • 1,000 $0.6616
$0.6616 / $1.1962 Buy Now
DISTI # 64934002
Verical MCU 16-bit MSP430 RISC 1KB Flash 2.5V/3.3V 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 9 Package Multiple: 1 Date Code: 2207 Americas - 2215
  • 9 $0.9181
  • 25 $0.8581
  • 100 $0.7554
  • 250 $0.7347
  • 500 $0.6835
  • 1,000 $0.6616
$0.6616 / $0.9181 Buy Now
LCSC MSP430 16MHz TSSOP-14 Microcontrollers (MCU/MPU/SOC) ROHS 15
  • 1 $0.7981
  • 10 $0.7799
  • 30 $0.7677
  • 100 $0.7555
$0.7555 / $0.7981 Buy Now
Vyrian Peripheral ICs 43564
RFQ

Part Details for MSP430F2001IPWR

MSP430F2001IPWR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

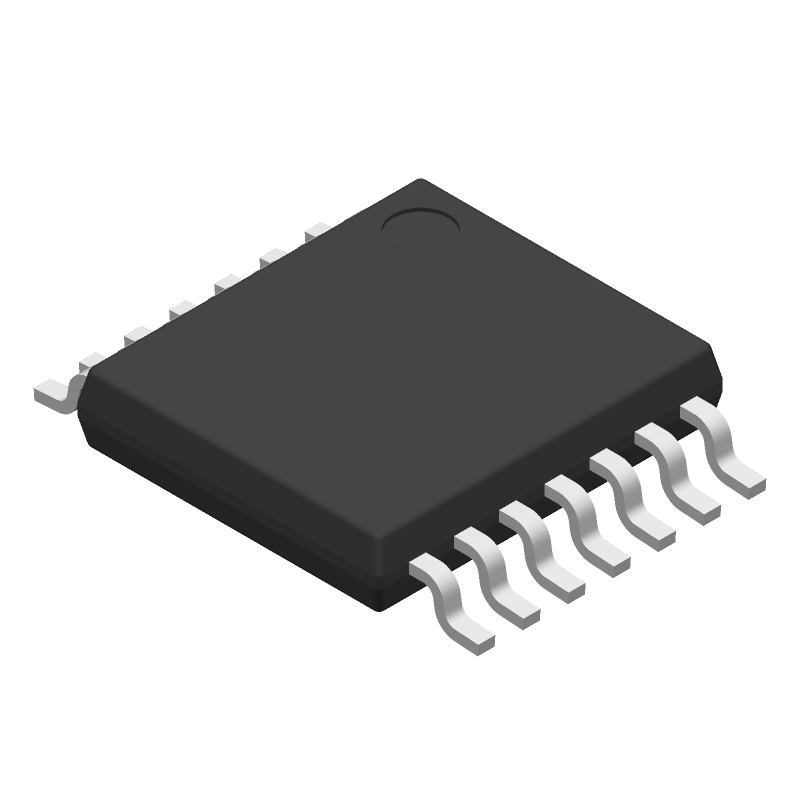

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430F2001IPWR Part Data Attributes

Parametric Data
MSP430F2001IPWR Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430F2001IPWR Texas Instruments 16 MHz MCU with 1KB Flash, 128B SRAM, timer, comparator 14-TSSOP -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code TSSOP
Package Description GREEN, PLASTIC, TSSOP-14
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Samacsys Manufacturer Texas Instruments
Has ADC YES
Additional Feature IT ALSO OPERATES AT 1.8 V AT 6 MHZ
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family MSP430
Clock Frequency-Max 16 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 5 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of DMA Channels
Number of I/O Lines 10
Number of Serial I/Os
Number of Terminals 14
Number of Timers 2
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 128
RAM (words) 0.125
ROM (words) 1024
ROM Programmability FLASH
Seated Height-Max 1.2 mm
Speed 16 MHz
Supply Current-Max 0.37 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.2 V
Supply Voltage-Nom 2.2 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for MSP430F2001IPWR

This table gives cross-reference parts and alternative options found for MSP430F2001IPWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430F2001IPWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MSP430F2001IPW Texas Instruments $0.5704 16 MHz MCU with 1KB Flash, 128B SRAM, timer, comparator 14-TSSOP -40 to 85 MSP430F2001IPWR vs MSP430F2001IPW
MSP430F2001TPW Texas Instruments $1.1431 16 MHz MCU with 1KB Flash, 128B SRAM, timer, comparator 14-TSSOP -40 to 105 MSP430F2001IPWR vs MSP430F2001TPW

MSP430F2001IPWR Related Parts

MSP430F2001IPWR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the MSP430F2001IPWR is 16 MHz.

  • The MSP430F2001IPWR has 2KB of flash memory.

  • The operating voltage range of the MSP430F2001IPWR is 1.8V to 3.6V.

  • Yes, the MSP430F2001IPWR has a built-in oscillator that can be used as a clock source.

  • The MSP430F2001IPWR has 14 GPIO pins.
