MSM82C55A-2GS-2K Information
MSM82C55A-2GS-2K by LAPIS Semiconductor Co Ltd is a Parallel IO Port.
Parallel IO Ports are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Part Details for MSM82C55A-2GS-2K

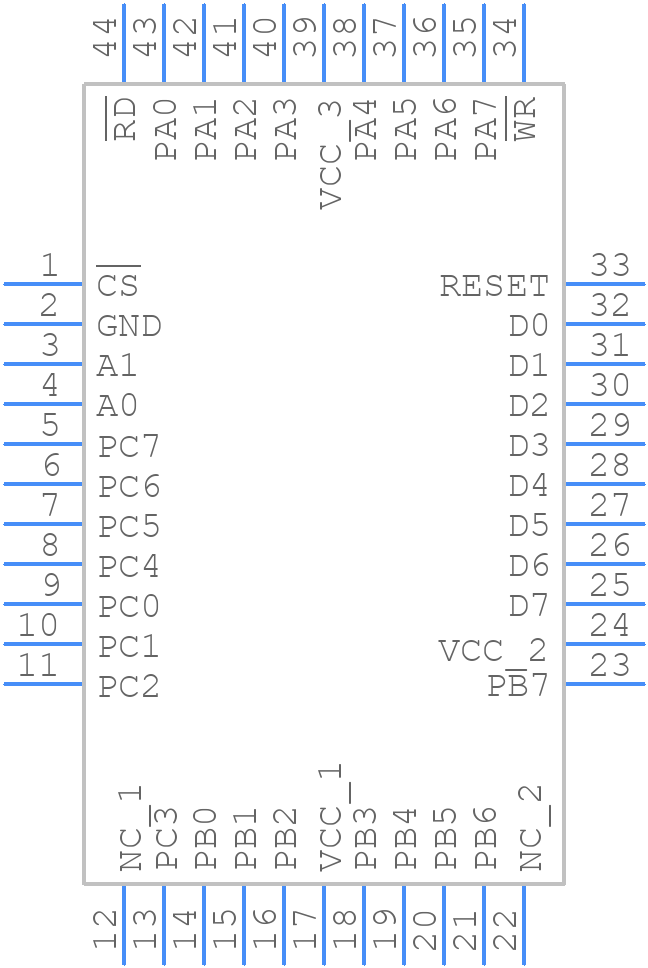

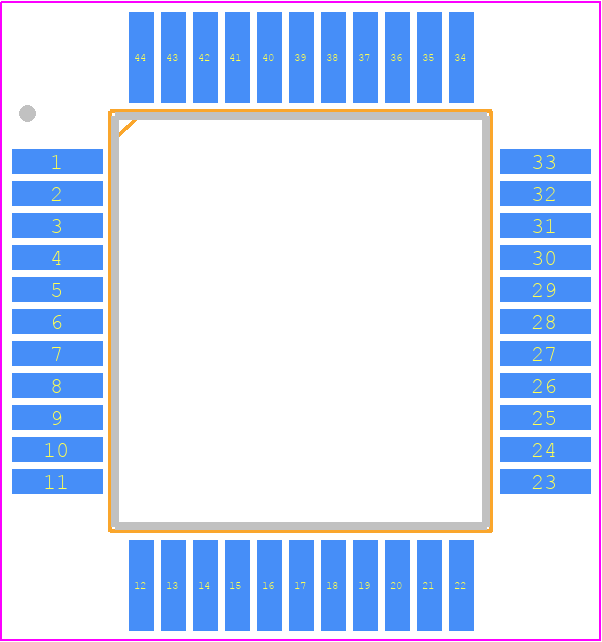

MSM82C55A-2GS-2K CAD Models
MSM82C55A-2GS-2K Part Data Attributes
|
|
MSM82C55A-2GS-2K
LAPIS Semiconductor Co Ltd
Buy Now
Datasheet
|
Compare Parts:
MSM82C55A-2GS-2K
LAPIS Semiconductor Co Ltd
Parallel I/O Port, 24 I/O, CMOS, PQFP44, 0.80 MM PITCH, PLASTIC, QFP-44
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | LAPIS SEMICONDUCTOR CO LTD | |
| Part Package Code | QFP | |
| Package Description | QFP, QFP44,.53X.57,32 | |
| Pin Count | 44 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | LAPIS SEMICONDUCTOR | |
| Clock Frequency-Max | 8 MHz | |
| External Data Bus Width | 8 | |
| JESD-30 Code | R-PQFP-G44 | |
| JESD-609 Code | e0 | |
| Length | 10.5 mm | |
| Number of I/O Lines | 24 | |
| Number of Ports | 3 | |
| Number of Terminals | 44 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Equivalence Code | QFP44,.53X.57,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | FLATPACK | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.25 mm | |
| Supply Current-Max | 8 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | QUAD | |
| Width | 9.5 mm | |
| uPs/uCs/Peripheral ICs Type | PARALLEL IO PORT, GENERAL PURPOSE |
