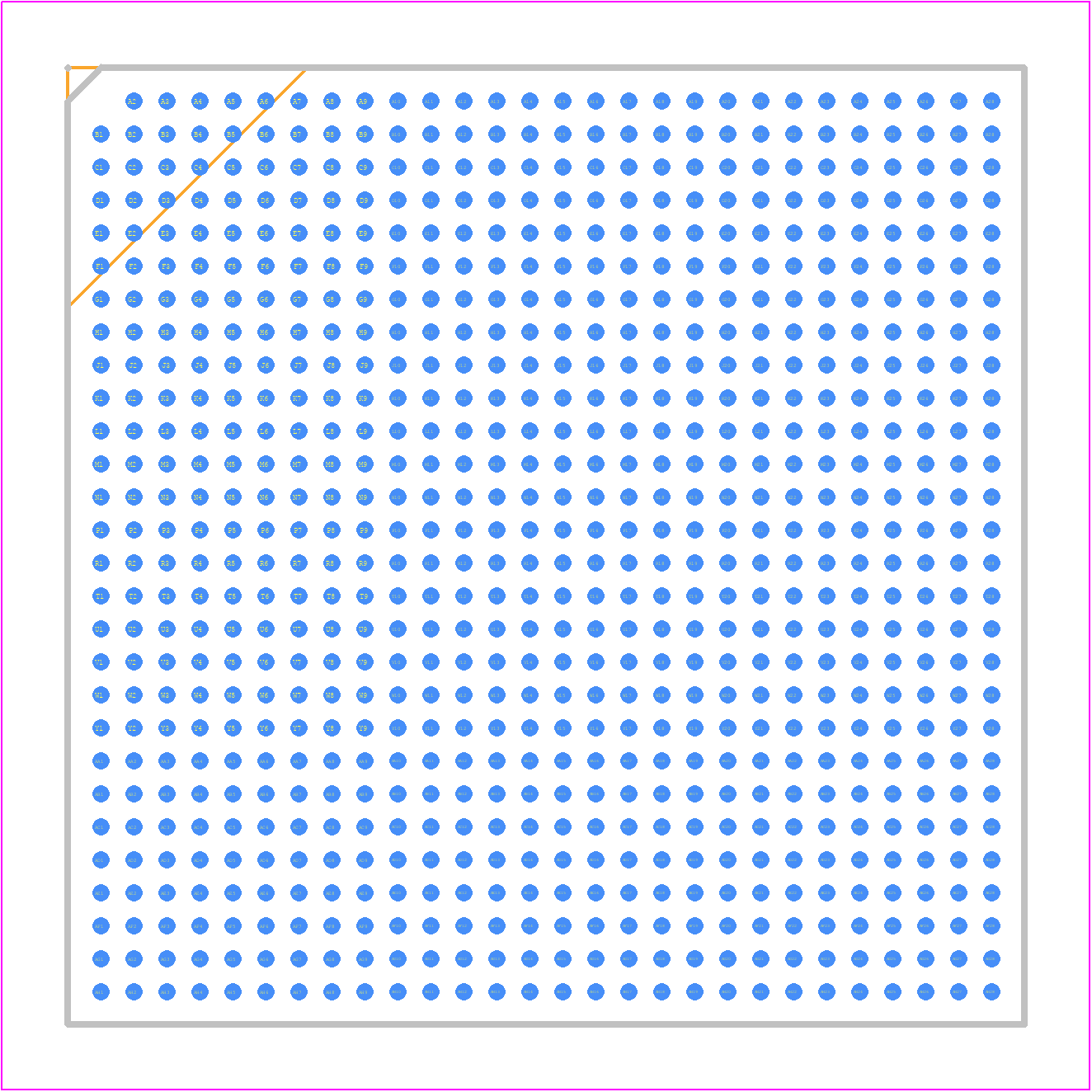

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MSC8144SVT1000B by NXP Semiconductors
Results Overview of MSC8144SVT1000B by NXP Semiconductors
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MSC8144SVT1000B Information
MSC8144SVT1000B by NXP Semiconductors is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MSC8144SVT1000B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31065012
|
Verical | DSP 32bit 1GHz 1000MIPS 783-Pin FCBGA Each Min Qty: 1 Package Multiple: 1 Date Code: 1330 | Americas - 72 |
|
$156.3300 | Buy Now |
Part Details for MSC8144SVT1000B
MSC8144SVT1000B CAD Models
MSC8144SVT1000B Part Data Attributes
|
|
MSC8144SVT1000B
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MSC8144SVT1000B
NXP Semiconductors
133MHz, OTHER DSP, PBGA783
|
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | 29 X 29 MM, LEAD FREE, PLASTIC, FCBGA-783 | |
| Reach Compliance Code | unknown | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | NXP | |
| Barrel Shifter | NO | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 133 MHz | |
| Format | FIXED POINT | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PBGA-B783 | |
| Length | 29 mm | |
| Low Power Mode | NO | |
| Number of Terminals | 783 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Seated Height-Max | 3.176 mm | |
| Supply Voltage-Max | 1.05 V | |
| Supply Voltage-Min | 0.97 V | |
| Supply Voltage-Nom | 1 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Width | 29 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
