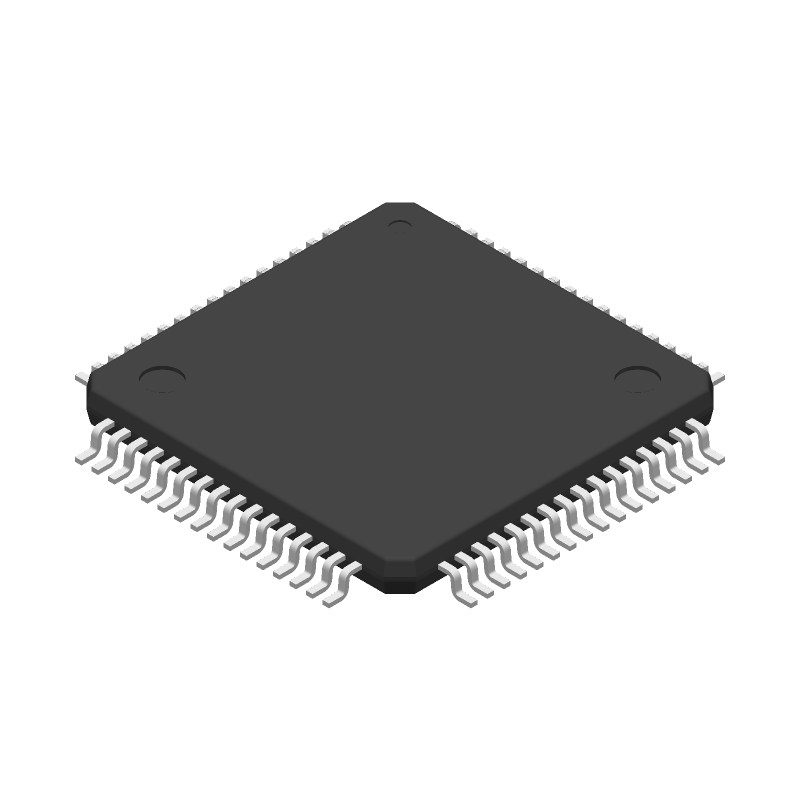

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MSC1213Y5PAGT by Texas Instruments
Results Overview of MSC1213Y5PAGT by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
Robotics and Drones
MSC1213Y5PAGT Information
MSC1213Y5PAGT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MSC1213Y5PAGT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-17432-1-ND
|
DigiKey | IC ADC/DAC 1K 64TQFP Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$51.7704 / $63.3200 | Buy Now |
|
DISTI #
595-MSC1213Y5PAGT
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized Prec A/D & D/A w/ 80 51 Mcntrl & Flash RoHS: Compliant | 0 |
|
$47.3600 | Order Now |
|
DISTI #
V72:2272_07298931
|
Arrow Electronics | Data Acquisition System Single ADC Dual DAC 24bit 64-Pin TQFP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2317 Container: Cut Strips | Americas - 77 |
|
$44.6600 / $46.1800 | Buy Now |
|
DISTI #
71299635
|
Verical | Data Acquisition System Single ADC Dual DAC 24bit 64-Pin TQFP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2317 | Americas - 77 |
|
$51.9986 | Buy Now |
|
|
Rochester Electronics | MSC1213Y5 Mixed Signal Microcontroller, Precision A/D & D/A Converters, 8051 CPU, 8-Bit, RoHS: Compliant Status: Active Min Qty: 1 | 2 |
|
$39.9600 / $49.9500 | Buy Now |
Part Details for MSC1213Y5PAGT
MSC1213Y5PAGT CAD Models
MSC1213Y5PAGT Part Data Attributes
|
|
MSC1213Y5PAGT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MSC1213Y5PAGT
Texas Instruments
24-bit, 8-ch delta-sigma ADC with 2x DACs, 8051 microcontroller, I<sup>2</sup>C and 32k flash memory 64-TQFP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | TQFP-64 | |
| Pin Count | 64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Additional Feature | ALSO OPERATES AT 2.7V MINIMUM SUPPLY | |
| Address Bus Width | 16 | |
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | 8051 | |
| Clock Frequency-Max | 40 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | 8 | |
| Format | FIXED POINT | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 4 | |
| Number of DMA Channels | ||
| Number of I/O Lines | 32 | |
| Number of Serial I/Os | 13 | |
| Number of Terminals | 64 | |
| Number of Timers | 4 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFQFP | |
| Package Equivalence Code | TQFP64,.47SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 1280 | |
| RAM (words) | 160 | |
| ROM (words) | 32768 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 40 MHz | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for MSC1213Y5PAGT
This table gives cross-reference parts and alternative options found for MSC1213Y5PAGT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSC1213Y5PAGT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MSC1213Y2PAGT | Texas Instruments | $27.6584 | 24-bit, 8-ch delta-sigma ADC with 2x DACs, 8051 microcontroller, I2C and 4k flash memory 64-TQFP -40 to 125 | MSC1213Y5PAGT vs MSC1213Y2PAGT |
| MSC1211Y3PAGT | Texas Instruments | $39.2974 | 8051 CPU with 8kB Memory, I2C, 24-Bit ADC, and Quad 16-Bit DACs 64-TQFP -40 to 125 | MSC1213Y5PAGT vs MSC1211Y3PAGT |
| MSC1212Y3PAGRG4 | Texas Instruments | Check for Price | 8-BIT, FLASH, 40MHz, MICROCONTROLLER, PQFP64, GREEN, PLASTIC, TQFP-64 | MSC1213Y5PAGT vs MSC1212Y3PAGRG4 |
| MSC1213Y3PAGR | Texas Instruments | Check for Price | IC 8-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQFP64, GREEN, PLASTIC, TQFP-64, Microcontroller | MSC1213Y5PAGT vs MSC1213Y3PAGR |
| MSC1212Y3PAGTG4 | Texas Instruments | Check for Price | 8051 CPU with 8kB Memory, 24-Bit ADC, and Quad 16-Bit DACs 64-TQFP -40 to 125 | MSC1213Y5PAGT vs MSC1212Y3PAGTG4 |
| MSC1213Y5PAGR | Texas Instruments | Check for Price | Precision A/D & D/A with 8051 Microcontroller and Flash Memory 64-TQFP -40 to 125 | MSC1213Y5PAGT vs MSC1213Y5PAGR |
| MSC1214Y2PAGT | Texas Instruments | Check for Price | 8-BIT, FLASH, 40MHz, MICROCONTROLLER, PQFP64, GREEN, PLASTIC, TQFP-64 | MSC1213Y5PAGT vs MSC1214Y2PAGT |
| MSC1213Y2PAGTG4 | Texas Instruments | Check for Price | 8-BIT, FLASH, 40MHz, MICROCONTROLLER, PQFP64, GREEN, PLASTIC, TQFP-64 | MSC1213Y5PAGT vs MSC1213Y2PAGTG4 |
MSC1213Y5PAGT Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using vias to connect signals to the ground plane.
-
The MSC1213Y5PAGT has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow around the device, use a heat sink if necessary, and follow thermal design guidelines in the datasheet.
-
The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper device operation and prevents damage.
-
Calibration is not required for the MSC1213Y5PAGT, as it is a pre-calibrated device. However, it's recommended to follow the datasheet guidelines for trimming the internal voltage reference to achieve optimal accuracy.
-
The maximum allowed input voltage range for the analog input is from -0.3V to VCC + 0.3V. Exceeding this range may damage the device or affect its performance.
