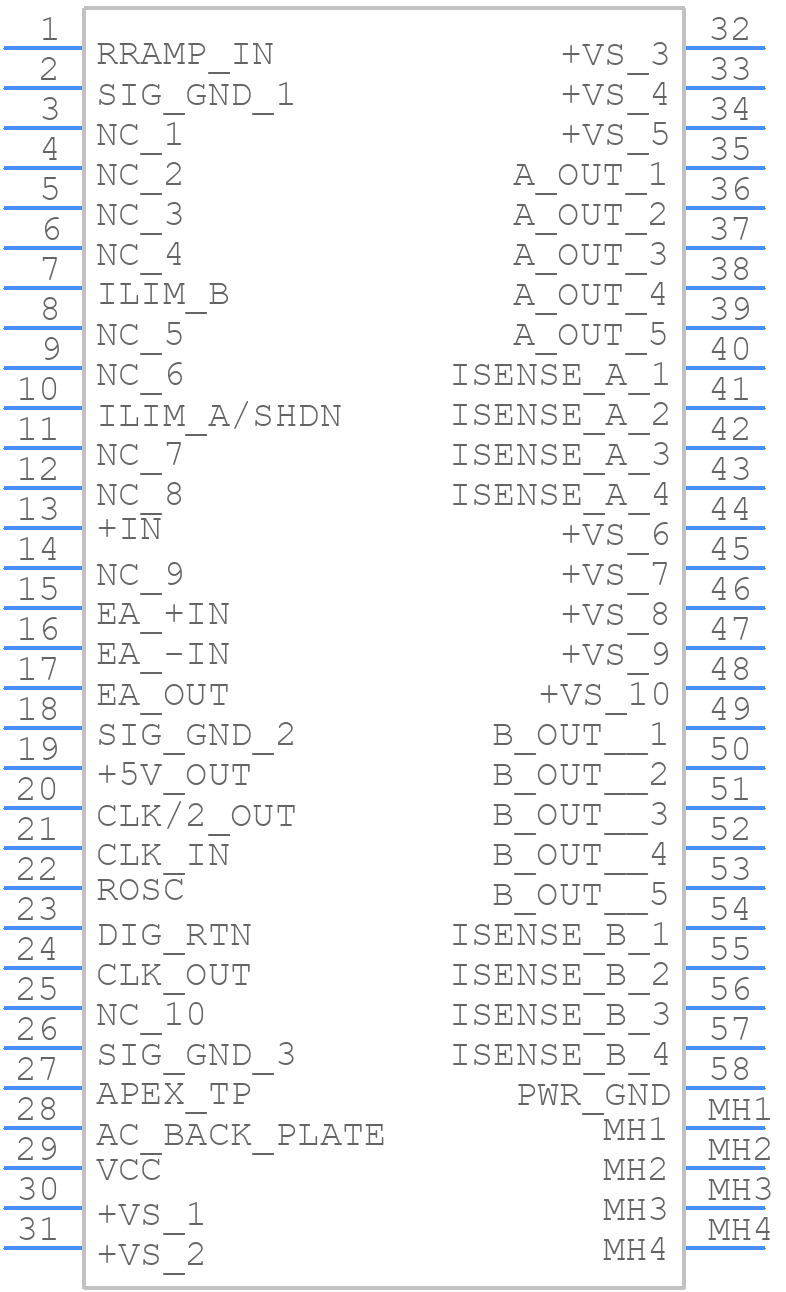

Part Symbol
-

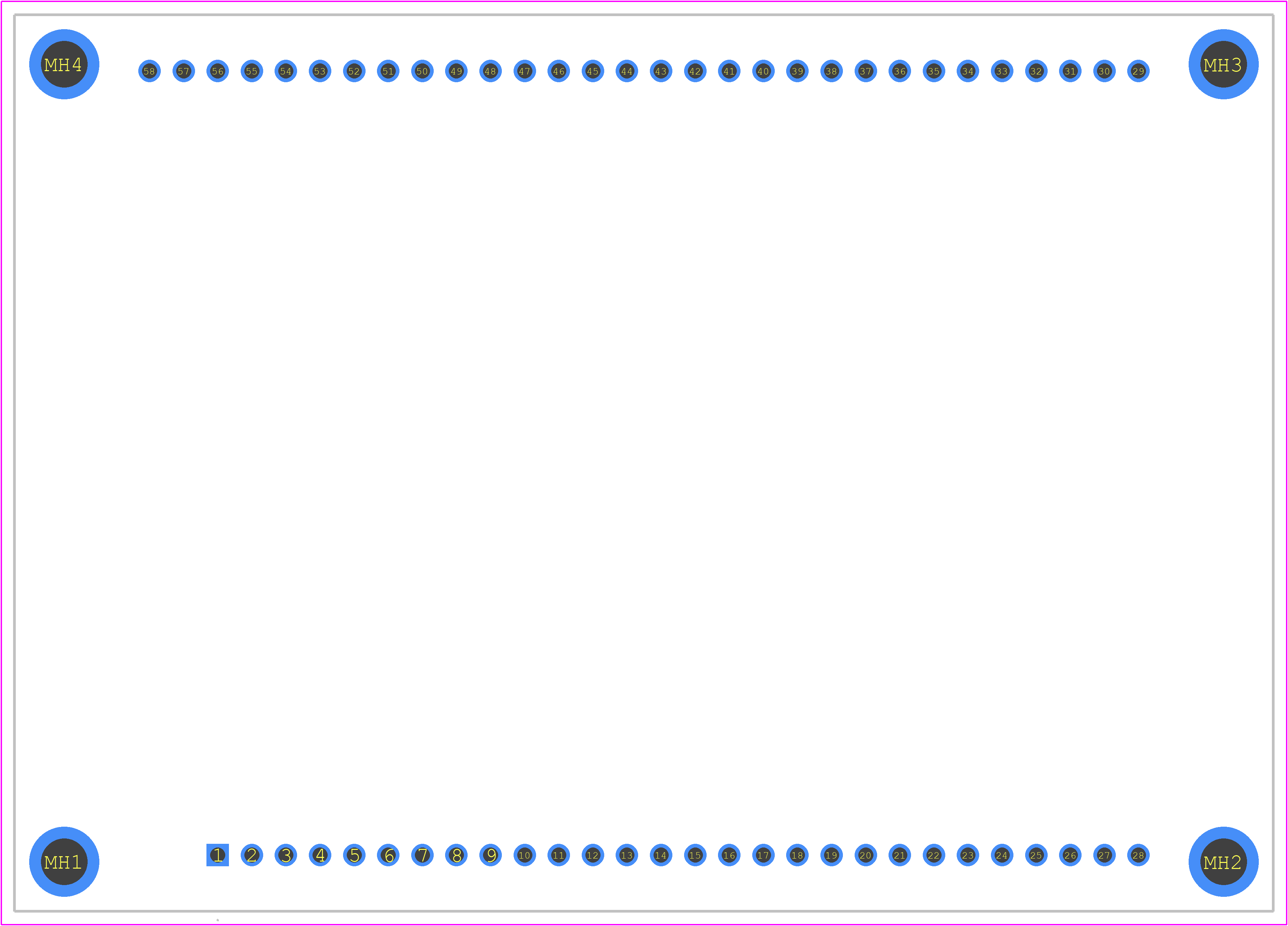

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MSA260KC by Apex Microtechnology Inc
Results Overview of MSA260KC by Apex Microtechnology Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Renewable Energy
Automotive
Robotics and Drones
MSA260KC Information
MSA260KC by Apex Microtechnology Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for MSA260KC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
137-MSA260KC
|
Mouser Electronics | Switching Controllers Pulse Width Modulation 450V, 20A RoHS: Compliant | 4 |
|
$300.8200 / $317.8400 | Buy Now |
Part Details for MSA260KC
MSA260KC CAD Models
MSA260KC Part Data Attributes
|
|
MSA260KC
Apex Microtechnology Inc
Buy Now
Datasheet
|
Compare Parts:
MSA260KC
Apex Microtechnology Inc
Analog Circuit, 1 Func, DIP-58
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | APEX MICROTECHNOLOGY INC | |
| Part Package Code | DMA | |
| Package Description | DIP-58 | |
| Pin Count | 58 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Apex Microtechnology | |
| Additional Feature | ALSO REQUIRES 5V TO 540V SUPPLY | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-XDMA-T58 | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 58 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Equivalence Code | FLANGE MT,3.6X1.9 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Qualification Status | Not Qualified | |
| Supply Voltage-Max (Vsup) | 16 V | |
| Supply Voltage-Min (Vsup) | 14 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | DUAL |
