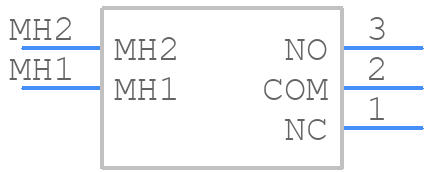

Part Symbol
-

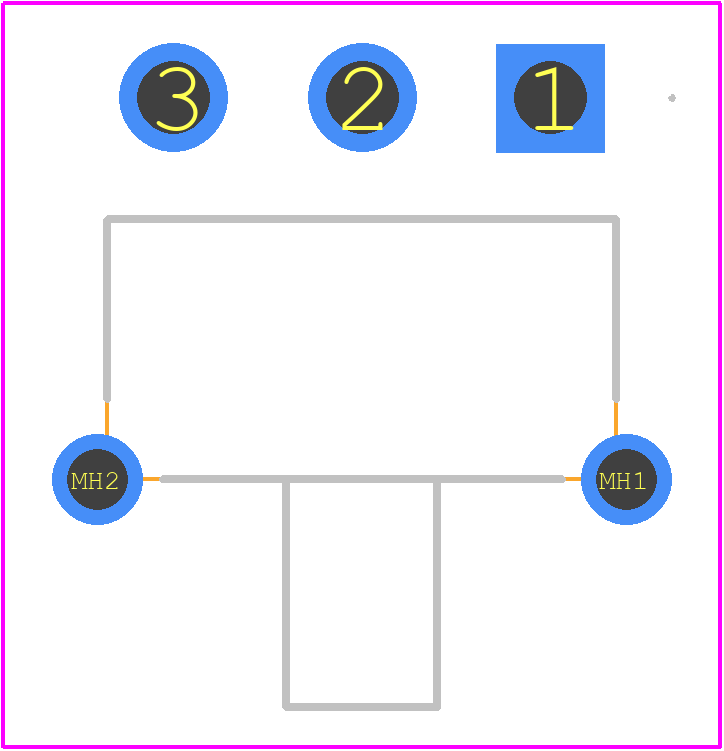

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MS12ASA30 by NKK Switches
Results Overview of MS12ASA30 by NKK Switches
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MS12ASA30 Information
MS12ASA30 by NKK Switches is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MS12ASA30
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11X3330
|
Newark | Miniature Slide |Nkk Switches MS12ASA30 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
V99:2348_06883661
|
Arrow Electronics | Switch Slide ON None ON SPDT Side Slide 6A 250VAC 28VDC 0.4VA 100000Cycles PC Pins Bracket Mount/Through Hole RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 1843 | Americas - 29 |
|
$0.7257 / $0.7304 | Buy Now |
|
DISTI #
30696743
|
Verical | Switch Slide ON None ON SPDT Side Slide 6A 250VAC 28VDC 0.4VA 100000Cycles PC Pins Bracket Mount/Through Hole RoHS: Compliant Min Qty: 8 Package Multiple: 1 Date Code: 1843 | Americas - 29 |
|
$0.7257 | Buy Now |
|
DISTI #
MS12ASA30
|
TTI | Slide Switches SPDT ON-ON .150 ACTR RA PC 6A & .4VA Min Qty: 1 Package Multiple: 1 Container: Bulk |
Americas - 4 In Stock |
|
$8.7500 | Buy Now |
|
|
Powell Electronics | MINIATURE SLIDE Min Qty: 1 | 92 |
|
$6.9000 / $10.0500 | Buy Now |
Part Details for MS12ASA30
MS12ASA30 CAD Models
MS12ASA30 Part Data Attributes
|
|
MS12ASA30
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
MS12ASA30
NKK Switches
Switch, SPDT, Horizontal, Through Hole-right Angle
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NKK SWITCHES CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Samacsys Manufacturer | NKK Switches | |
| Actuator Angle | ||
| Actuator Length | 0.224 inch | |
| Actuator Type | SLIDE | |
| Body Breadth | 6.604 mm | |
| Body Height | 15.8496 mm | |
| Body Length or Diameter | 12.7 mm | |
| Center Contact Material | SILVER | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact (DC) Max Power Rating R Load | 0.4VA@28VDC | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.02 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Dielectric Withstand Volts | 1500VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Material | SILVER | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | STAINLESS STEEL | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | GLASS FILLED DIALLYL PHTHALATE | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Number of Positions | 2 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| PCB Hole Count | 5 | |
| Sealing | EPOXY | |
| Solderability | WAVE | |
| Surface Mount | NO | |
| Switch Action | HORIZONTAL | |
| Switch Function | SPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Length | 0.126 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
