MS12ANW03 Information

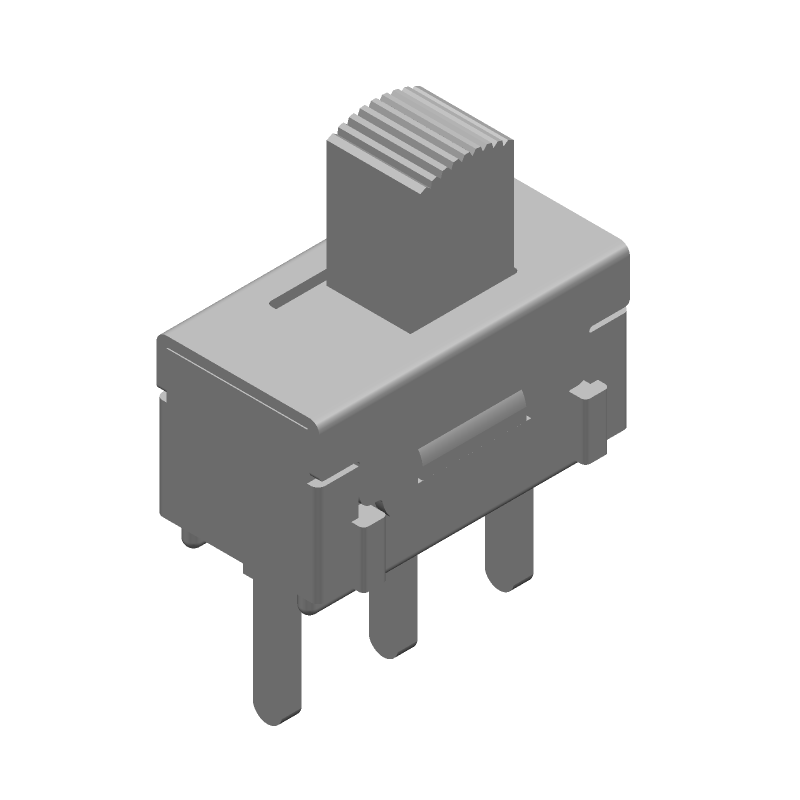

MS12ANW03 by NKK Switches is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MS12ANW03
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11X3328
|
Newark | Switch, Slide, Spdt, 6A, 250V, Th, Contact Configuration:Spdt, Switch Operation:On-None-On, Switch Mounting:Through Hole, Product Range:-, Contact Current Max:6A, Contact Voltage Ac Max:250V, Contact Voltage Dc Max:- Rohs Compliant: Yes |Nkk Switches MS12ANW03 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
Buy Now | |
|
|
Bristol Electronics | 100 |
|
RFQ | ||
|
|
Quest Components | SLIDE SWITCH, 2 POSITIONS, SPDT, ON-ON, HORIZONTAL, 3 PCB HOLE CNT, SOLDER TERMINAL, THROUGH HOLE-STRAIGHT | 6 |
|
$2.5000 / $3.7500 | Buy Now |
|
|
Vyrian | Switches | 62 |
|
RFQ |
Part Details for MS12ANW03
MS12ANW03 CAD Models
MS12ANW03 Part Data Attributes
|
|
MS12ANW03
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
MS12ANW03
NKK Switches
Slide Switch, 2 Positions, SPDT, On-on, Horizontal, 3 PCB Hole Cnt, Solder Terminal, Through Hole-straight,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NKK SWITCHES CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Samacsys Manufacturer | NKK Switches | |
| Actuator Angle | ||
| Actuator Length | 0.201 inch | |
| Actuator Type | SLIDE | |
| Body Breadth | 6.604 mm | |
| Body Height | 17.8562 mm | |
| Body Length or Diameter | 12.7 mm | |
| Center Contact Material | SILVER | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating R Load | 3A@250VAC | |
| Contact Current(AC)-Max | 3 A | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.01 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(AC)-Max | 250 V | |
| Dielectric Withstand Volts | 1500VAC V | |
| Electrical Life | 25000 Cycle(s) | |
| End Contact Material | SILVER | |
| End Contact Plating | SILVER | |
| Housing Material | STAINLESS STEEL | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | GLASS FILLED DIALLYL PHTHALATE | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Positions | 2 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| PCB Hole Count | 3 | |
| Sealing | EPOXY | |
| Solderability | WAVE | |
| Surface Mount | NO | |
| Switch Action | HORIZONTAL | |
| Switch Function | SPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Length | 0.25 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
