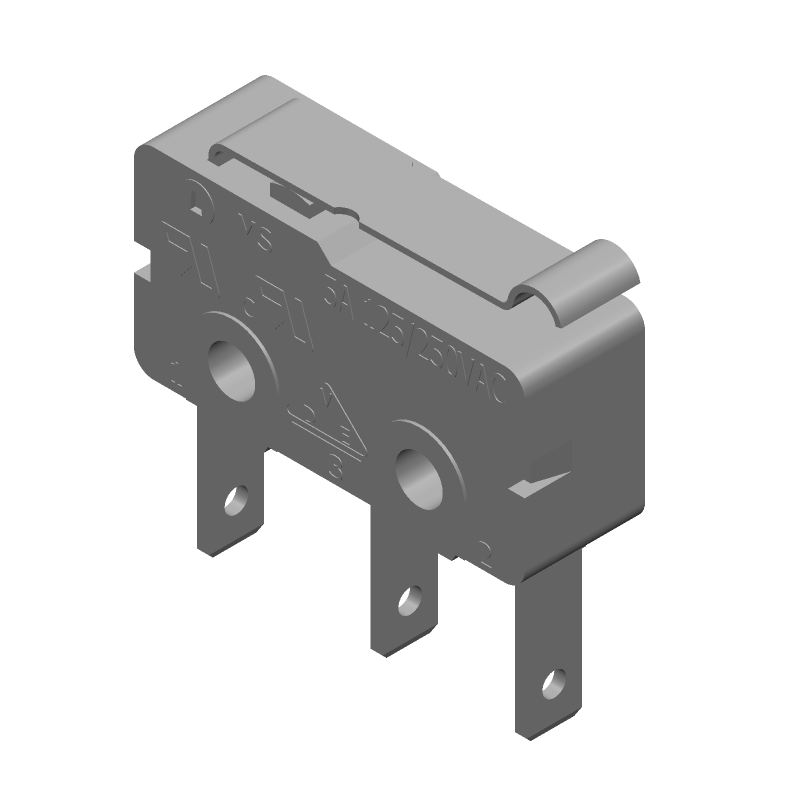

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MS085R104F035C1A by E-Switch Inc
Results Overview of MS085R104F035C1A by E-Switch Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
MS085R104F035C1A Information
MS085R104F035C1A by E-Switch Inc is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MS085R104F035C1A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
24R3427
|
Newark | Ea Rohs Compliant: Yes |E-Switch MS085R104F035C1A RoHS: Compliant Min Qty: 540 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.0700 / $2.4200 | Buy Now |
|
DISTI #
EG5432-ND
|
DigiKey | SWITCH SNAP ACT SPDT 0.4VA 20V Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
445 In Stock |
|
$1.3375 / $2.5200 | Buy Now |
|
DISTI #
612-MS085R104F035C1A
|
Mouser Electronics | Basic / Snap Action Switches 0.4VA 20VDC/AC SPDT .110 Quick Connect RoHS: Compliant | 0 |
|
$1.3400 / $1.6200 | Order Now |
|
DISTI #
74851990
|
RS | Snap-Action Switch, SPDT, ON-(OFF), 0.4 VA, 20V, QC 0.110", MS Series Min Qty: 540 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$4.8200 / $5.2900 | RFQ |
|
DISTI #
MS085R104F035C1A
|
TME | Microswitch SNAP ACTION, SPDT, Rcont max: 100mΩ, ON-(ON), Pos: 2 Min Qty: 540 | 0 |
|
$1.6300 | RFQ |
|
DISTI #
MS085R104F035C1A
|
IBS Electronics | MS085R104F035C1A by E-SWITCH is a tactile switch with a 10mm square actuator, 350gf operating force, and 100mA 30VDC rating. It features a through-hole design and is ideal for various electronic applications. Min Qty: 270 Package Multiple: 1 | 0 |
|
$1.6380 / $1.6900 | Buy Now |
Part Details for MS085R104F035C1A
MS085R104F035C1A CAD Models
MS085R104F035C1A Part Data Attributes
|
|
MS085R104F035C1A
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
MS085R104F035C1A
E-Switch Inc
Snap Acting/Limit Switch, SPDT, Quick Connect Terminal, Simulated Roller Actuator, Panel Mount
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.567 inch | |
| Actuator Type | SIMULATED ROLLER | |
| Body Breadth | 6.4008 mm | |
| Body Height | 10.5918 mm | |
| Body Length or Diameter | 19.812 mm | |
| Center Contact Plating | GOLD | |
| Contact (AC) Max Power Rating R Load | 0.4VA@20VAC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | SNAP ACTION | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Plating | GOLD | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Operating Force-Max | 0.3447 N | |
| Operating Position | 0.429 inch | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Surface Mount | NO | |
| Switch Function | SPDT | |
| Switch Type | SNAP ACTING/LIMIT SWITCH | |
| Terminal Length | 0.28 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | QUICK CONNECT |
