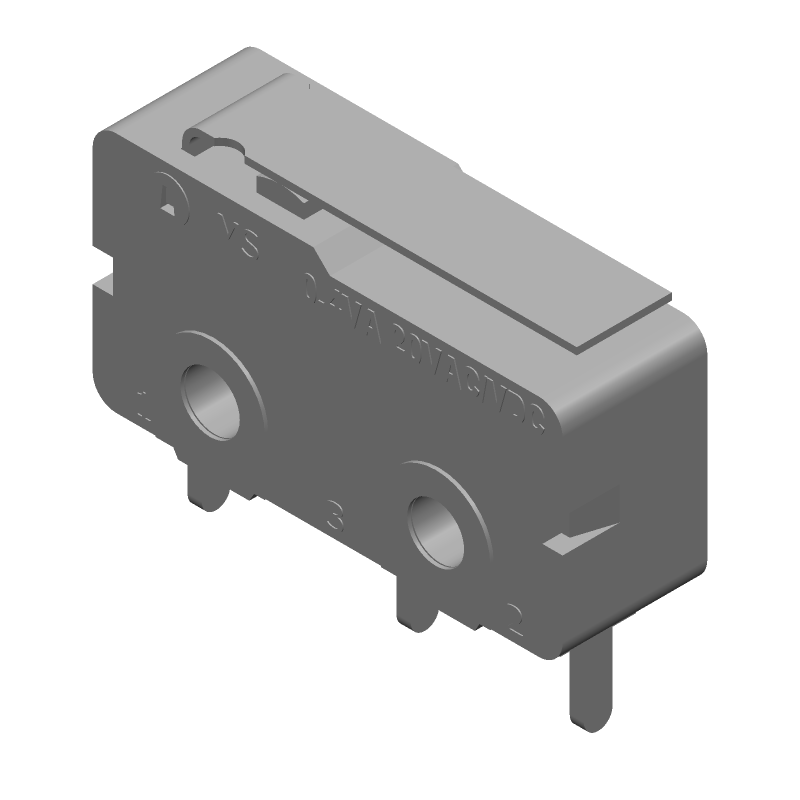

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MS085R101F045P1C by E-Switch Inc
Results Overview of MS085R101F045P1C by E-Switch Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MS085R101F045P1C Information
MS085R101F045P1C by E-Switch Inc is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MS085R101F045P1C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MS085R101F045P1C-ND
|
DigiKey | SWITCH SNP ACT SPST-NO 0.4VA 20V Min Qty: 1080 Lead time: 14 Weeks Container: Bulk | Temporarily Out of Stock |
|
$1.3926 | Buy Now |
|
DISTI #
612-MS085R101F045P1C
|
Mouser Electronics | Basic / Snap Action Switches 0.4VA 20VDC/AC SPSTNO PCB Pin RoHS: Compliant | 0 |
|
$1.4700 / $1.4900 | Order Now |
|
DISTI #
74851973
|
RS | Snap-Action Switch, SPST-NO, OFF-(ON), 0.4 VA, 20V, PC Pin, MS Series Min Qty: 500 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$3.1000 | RFQ |
Part Details for MS085R101F045P1C
MS085R101F045P1C CAD Models
MS085R101F045P1C Part Data Attributes
|
|
MS085R101F045P1C
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
MS085R101F045P1C
E-Switch Inc
Snap Acting/Limit Switch, SPST, Solder Terminal, Straight Lever Actuator, Through Hole-straight
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.571 inch | |
| Actuator Type | STRAIGHT LEVER | |
| Body Breadth | 6.4008 mm | |
| Body Length or Diameter | 19.812 mm | |
| Center Contact Plating | GOLD | |
| Contact (AC) Max Power Rating R Load | 0.4VA@20VAC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | SNAP ACTION | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Plating | GOLD | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Force-Max | 0.442 N | |
| Operating Position | 0.358 inch | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Surface Mount | NO | |
| Switch Function | SPST | |
| Switch Type | SNAP ACTING/LIMIT SWITCH | |
| Terminal Length | 0.138 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
