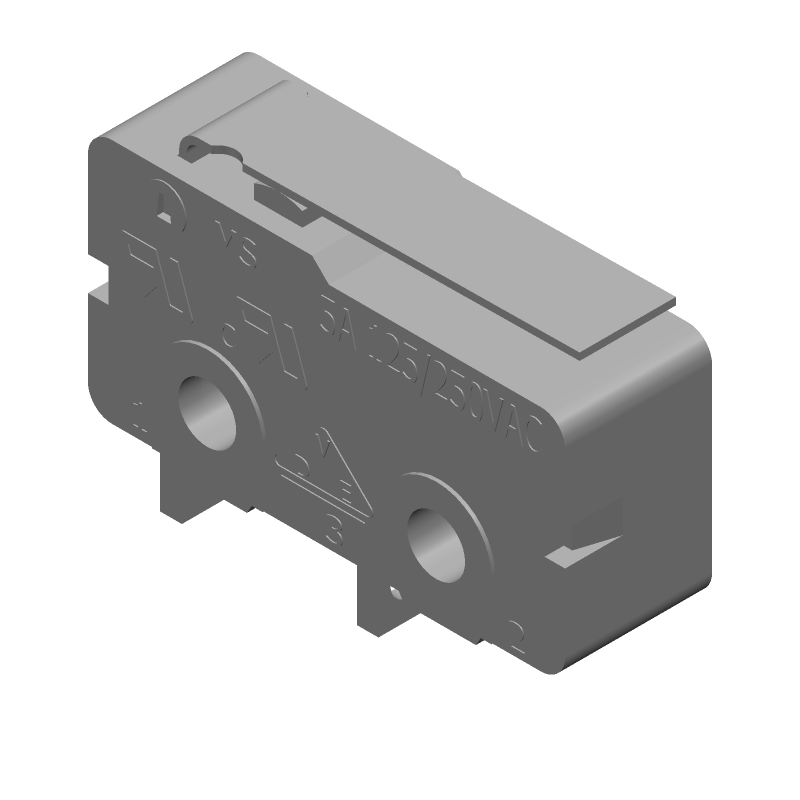

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MS085R101F020S1C by E-Switch Inc
Results Overview of MS085R101F020S1C by E-Switch Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
MS085R101F020S1C Information
MS085R101F020S1C by E-Switch Inc is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MS085R101F020S1C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N8295
|
Newark | Ea Rohs Compliant: Yes |E-Switch MS085R101F020S1C RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.0200 / $2.3800 | Buy Now |
|
DISTI #
MS085R101F020S1C-ND
|
DigiKey | SWITCH SNP ACT SPST-NO 0.4VA 20V Min Qty: 500 Lead time: 14 Weeks Container: Bulk | Temporarily Out of Stock |
|
$1.4835 | Buy Now |
|
DISTI #
612-MS085R101F020S1C
|
Mouser Electronics | Basic / Snap Action Switches 0.4VA 20VDC/AC SPSTNO Solder Lug RoHS: Compliant | 0 |
|
$1.4800 | Order Now |
|
DISTI #
74851969
|
RS | Snap-Action Switch, SPST-NO, OFF-(ON), 0.4 VA, 20V, Solder, MS Series Min Qty: 500 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$3.1000 | RFQ |
|
|
Quest Components | ELECTRONIC COMPONENT | 10 |
|
$2.1750 / $3.2625 | Buy Now |
|
DISTI #
MS085R101F020S1C
|
IBS Electronics | MS085R101F020S1C by E-SWITCH is a subminiature toggle switch with SPDT configuration, rated for 0.4VA at 20V AC/DC, featuring a right angle PC mount and a flat actuator. Min Qty: 540 Package Multiple: 1 | 0 |
|
$1.6120 / $1.6640 | Buy Now |
Part Details for MS085R101F020S1C
MS085R101F020S1C CAD Models
MS085R101F020S1C Part Data Attributes
|
|
MS085R101F020S1C
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
MS085R101F020S1C
E-Switch Inc
Snap Acting/Limit Switch, SPST, Solder Lug Terminal, Straight Lever Actuator, Panel Mount
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.571 inch | |
| Actuator Type | STRAIGHT LEVER | |
| Body Breadth | 6.4008 mm | |
| Body Height | 10.5918 mm | |
| Body Length or Diameter | 19.812 mm | |
| Center Contact Plating | GOLD | |
| Contact (AC) Max Power Rating R Load | 0.4VA@20VAC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | SNAP ACTION | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Plating | GOLD | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Operating Force-Max | 0.1974 N | |
| Operating Position | 0.358 inch | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Surface Mount | NO | |
| Switch Function | SPST | |
| Switch Type | SNAP ACTING/LIMIT SWITCH | |
| Terminal Length | 0.138 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
