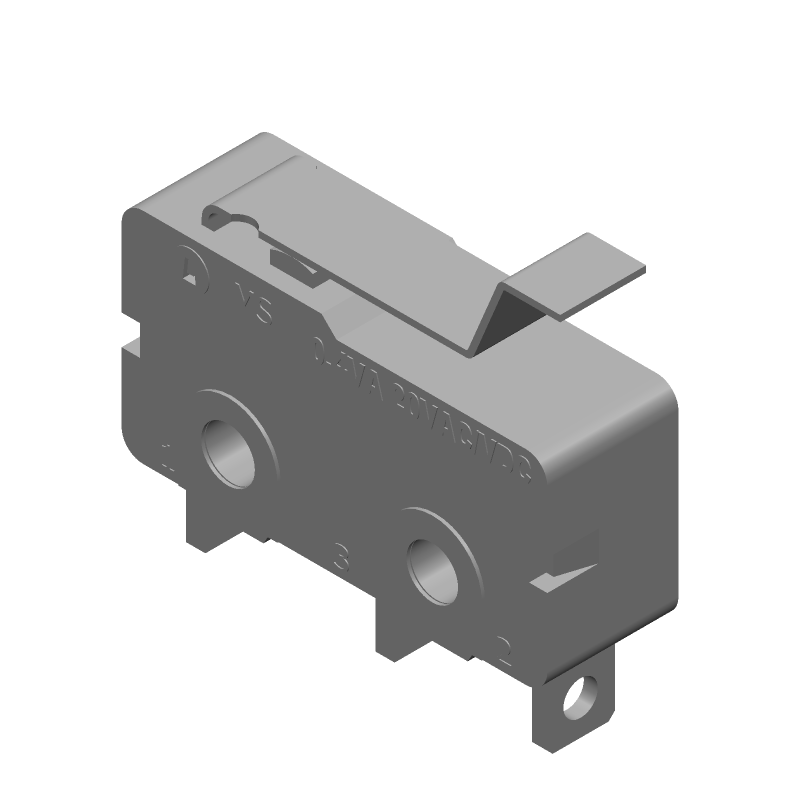

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MS0850507F040S1A by E-Switch Inc
Results Overview of MS0850507F040S1A by E-Switch Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
MS0850507F040S1A Information
MS0850507F040S1A by E-Switch Inc is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MS0850507F040S1A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MS0850507F040S1A-ND
|
DigiKey | SWITCH SNAP ACTION SPDT 5A 125V Min Qty: 500 Lead time: 14 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.8489 | Buy Now |
|
DISTI #
612-MS0850507F040S1A
|
Mouser Electronics | Basic / Snap Action Switches 5A SPDT OF 40 SL LUG RoHS: Compliant | 0 |
|
$0.7730 / $1.5400 | Order Now |
Part Details for MS0850507F040S1A
MS0850507F040S1A CAD Models
MS0850507F040S1A Part Data Attributes
|
|
MS0850507F040S1A
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
MS0850507F040S1A
E-Switch Inc
Snap Acting/Limit Switch, SPDT, Solder Lug Terminal, Locking Lever Actuator, Panel Mount
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.571 inch | |
| Actuator Type | LOCKING LEVER | |
| Body Breadth | 6.4008 mm | |
| Body Height | 10.5918 mm | |
| Body Length or Diameter | 19.812 mm | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating R Load | 5A@250VAC | |
| Contact Current(AC)-Max | 5 A | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | SNAP ACTION | |
| Contact Voltage(AC)-Max | 250 V | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Plating | SILVER | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Operating Force-Max | 0.392 N | |
| Operating Position | 0.492 inch | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Surface Mount | NO | |
| Switch Function | SPDT | |
| Switch Type | SNAP ACTING/LIMIT SWITCH | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
