MPY20W1100FA00MSSD Information
MPY20W1100FA00MSSD by Wima is a Paper Capacitor.
Paper Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for MPY20W1100FA00MSSD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
92AH5740
|
Newark | Suppression Capacitor, 1000Pf, Class Y2 Rohs Compliant: Yes |Wima MPY20W1100FA00MSSD RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
1928-MPY20W1100FA00MSSD-ND
|
DigiKey | MP 3-Y2 1000 PF 250 VAC 4X8.5X13 Min Qty: 6000 Lead time: 16 Weeks Container: Bulk | Temporarily Out of Stock |
|
$595.8750 | Buy Now |
|
|
NexGen Digital | 203 |
|
RFQ | ||
|
DISTI #
MPY20W1100FA00MSSD
|
Avnet Abacus | MP 3Y2 1000 pF 20 250 VAC 4x85x135 FVRM10 bulk standard (Alt: MPY20W1100FA00MSSD) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Abacus - 0 |
|
Buy Now |
Part Details for MPY20W1100FA00MSSD

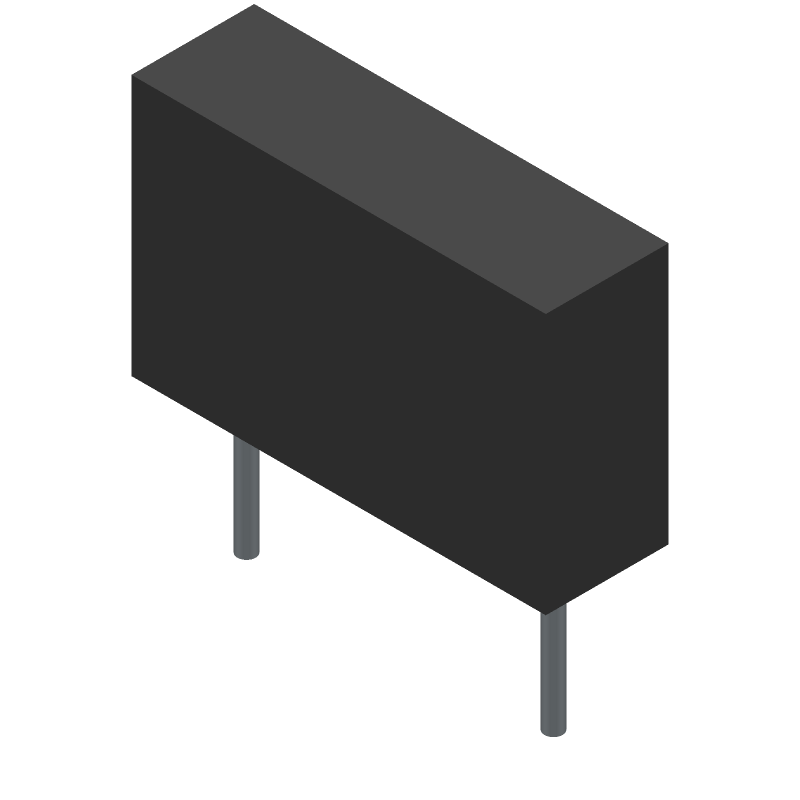

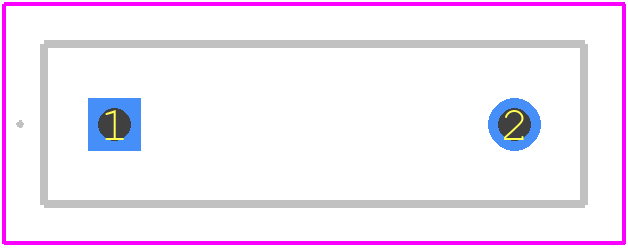

MPY20W1100FA00MSSD CAD Models
MPY20W1100FA00MSSD Part Data Attributes
|
|
MPY20W1100FA00MSSD
Wima
Buy Now
Datasheet
|
Compare Parts:
MPY20W1100FA00MSSD
Wima
Paper Capacitor, Paper, 20% +Tol, 20% -Tol, 0.001uF, Through Hole Mount, 5316, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | WIMA GMBH & CO KG | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00 | |
| Samacsys Manufacturer | WIMA | |
| Additional Feature | SAFETY CLASS Y2 | |
| Capacitance | 0.001 µF | |
| Capacitor Type | PAPER CAPACITOR | |
| Dielectric Material | PAPER | |
| Height | 8.5 mm | |
| JESD-609 Code | e3 | |
| Length | 13.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 110 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 20% | |
| Rated (AC) Voltage (URac) | 250 V | |
| Rated (DC) Voltage (URdc) | 1000 V | |
| Reference Standard | CUL; ENEC; UL | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Pitch | 10 mm | |
| Terminal Shape | WIRE | |
| Width | 4 mm |
