Sensors/Transducers / Pressure Sensors / MPXV5010GC6T1
Datasheets
MPXV5010GC6T1 by:

GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 5%, 0.20-4.70V, SQUARE, SURFACE MOUNT

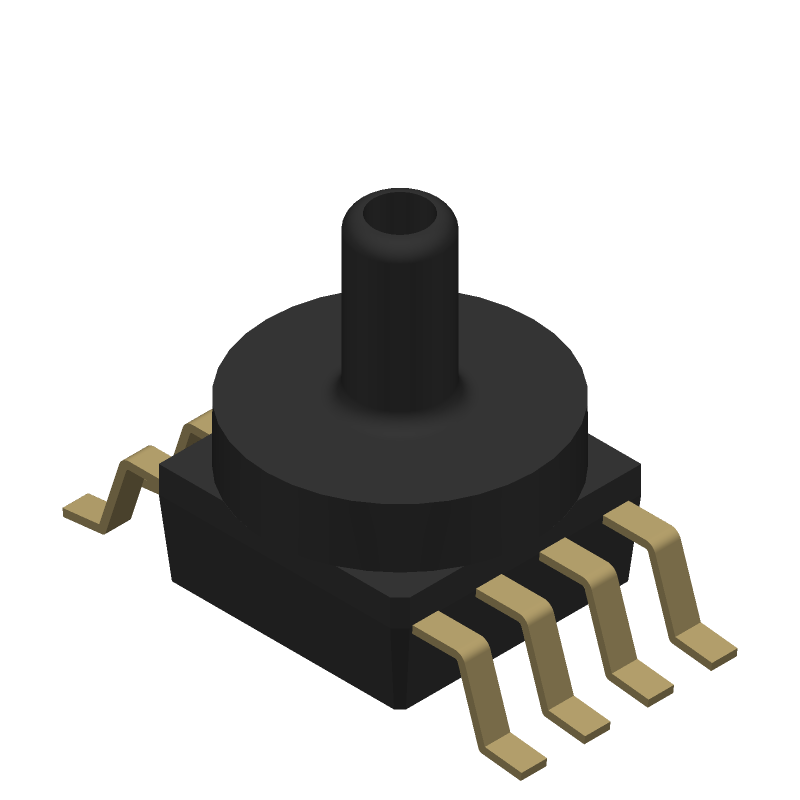

Part Details for MPXV5010GC6T1 by NXP Semiconductors

Results Overview of MPXV5010GC6T1 by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Environmental Monitoring Internet of Things (IoT) Industrial Automation Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Consumer Electronics Security and Surveillance Aerospace and Defense Healthcare Robotics and Drones

MPXV5010GC6T1 Information

MPXV5010GC6T1 by NXP Semiconductors is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for MPXV5010GC6T1

Part # Distributor Description Stock Price Buy
DISTI # 75C3912
Newark Pressure Sensor, 0 To 10Kpa, Sop-8, Pressure Type:Gauge, Operating Pressure Min:0Kpa, Operating Pressure Max:10Kpa, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Sensor Case/Package:Sop, No. Of Pins:8Pins, Accuracy:± 5% Rohs Compliant: Yes |Nxp MPXV5010GC6T1 RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 50 $15.2200
$15.2200 Buy Now
DISTI # MPXV5010GC6T1CT-ND
DigiKey SENSOR 1.45PSIG 0.13" 4.7V Min Qty: 1 Lead time: 52 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2872
In Stock
  • 1 $19.9600
  • 5 $18.2180
  • 10 $17.5680
  • 25 $16.7920
  • 50 $16.2608
  • 100 $15.7739
  • 200 $15.3269
  • 300 $15.0827
  • 500 $14.7921
$14.7921 / $19.9600 Buy Now
DISTI # MPXV5010GC6T1
Avnet Americas Pressure Sensor 0.2V to 4.7V 0kPa to 10kPa Gauge 8-Pin SMT T/R - Tape and Reel (Alt: MPXV5010GC6T1) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 52 Weeks, 0 Days Container: Reel 800
  • 100 $13.2092
  • 200 $13.1005
  • 400 $12.9921
  • 600 $12.8839
  • 800 $12.7759
$12.7759 / $13.2092 Buy Now
DISTI # 841-MPXV5010GC6T1
Mouser Electronics Board Mount Pressure Sensors PRES SEN INTEG 10KPA RoHS: Compliant 499
  • 1 $19.9600
  • 5 $18.2200
  • 10 $17.5700
  • 25 $16.8000
  • 50 $16.2700
  • 100 $15.2900
  • 200 $15.0100
  • 500 $14.5400
$14.5400 / $19.9600 Buy Now
Rochester Electronics MPXV5010 - Pressure Sensor, 5V, 0/10kPa, SOP 8 RoHS: Compliant Status: Active Min Qty: 1 100
  • 25 $14.2500
  • 100 $13.5300
  • 500 $12.8200
  • 1,000 $12.1100
  • 10,000 $11.4000
$11.4000 / $14.2500 Buy Now
DISTI # MPXV5010GC6T1
IBS Electronics GAGE PEIZORESISTIVE PRESSURE SENSOR 0-1.45 PSI 5% 0.20-4.70V SQUARE THROUGH HOLE MOUNT Min Qty: 400 Package Multiple: 1 0
  • 200 $18.0310
  • 300 $17.9270
  • 400 $18.1350
$17.9270 / $18.1350 Buy Now
NXP Semiconductors Pressure Sensor, 5V, 0/10kPa, SOP 8, Reel 13" Q2/T3 RoHS: Compliant pbFree: Yes Lead time: 52 Weeks, 0 Days Container: Reel Free Sample - 817
  • 1 $10.8300
$10.8300 Buy Now
DISTI # MPXV5010GC6T1
Avnet Silica Pressure Sensor 02V to 47V 0kPa to 10kPa Gauge 8Pin SMT TR (Alt: MPXV5010GC6T1) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 18 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MPXV5010GC6T1
EBV Elektronik Pressure Sensor 02V to 47V 0kPa to 10kPa Gauge 8Pin SMT TR (Alt: MPXV5010GC6T1) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 54 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock 2200
RFQ

Part Details for MPXV5010GC6T1

MPXV5010GC6T1 Part Data Attributes

Parametric Data
MPXV5010GC6T1 NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MPXV5010GC6T1 NXP Semiconductors GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 5%, 0.20-4.70V, SQUARE, SURFACE MOUNT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 52 Weeks
Samacsys Manufacturer NXP
Accuracy-Max (%) 5%
Additional Feature TEMPERATURE COMPENSATED
Body Breadth 10.66 mm
Body Height 12.95 mm
Body Length or Diameter 10.66 mm
Housing PLASTIC
Linearity (%) 5 %
Mounting Feature SURFACE MOUNT
Offset-Nom 0.20V
Operating Current-Max 10 mA
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Range 0.20-4.70V
Output Type ANALOG VOLTAGE
Package Shape/Style SQUARE
Port Type STRAIGHT
Pressure Range-Max 1.45 Psi
Pressure Range-Min
Pressure Sensing Mode GAGE
Response Time 1000 µs
Sensors/Transducers Type PRESSURE SENSOR,PIEZORESISTIVE
Supply Voltage-Max 5.25 V
Supply Voltage-Min 4.75 V
Surface Mount YES
Termination Type SOLDER

MPXV5010GC6T1 Related Parts

MPXV5010GC6T1 Frequently Asked Questions (FAQ)

  • A good PCB layout for the MPXV5010GC6T1 involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).

  • Calibration of the MPXV5010GC6T1 involves applying a known pressure to the sensor and measuring the output voltage. The sensor's offset and sensitivity can then be calculated using a linear regression analysis.

  • The MPXV5010GC6T1 is designed to measure pressures up to 10 kPa (1.45 psi), but it can be used to measure pressures up to 15 kPa (2.17 psi) with reduced accuracy.

  • Temperature compensation of the MPXV5010GC6T1 can be achieved by using a thermistor or a temperature sensor to measure the temperature and then applying a correction factor to the pressure reading based on the temperature.

  • The recommended power supply voltage for the MPXV5010GC6T1 is between 4.75 V and 5.25 V, with a typical voltage of 5 V.
