Part Details for MPX53DP by NXP Semiconductors
Results Overview of MPX53DP by NXP Semiconductors
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
MPX53DP Information
MPX53DP by NXP Semiconductors is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for MPX53DP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MPX53DP
|
Avnet Silica | Pressure Sensor 0V to 90V 0kPa to 50kPa Differential 4Pin SIP Rail (Alt: MPX53DP) RoHS: Compliant Min Qty: 100 Package Multiple: 20 | Silica - 0 |
|
Buy Now | |
|
DISTI #
MPX53DP
|
EBV Elektronik | Pressure Sensor 0V to 90V 0kPa to 50kPa Differential 4Pin SIP Rail (Alt: MPX53DP) RoHS: Compliant Min Qty: 20 Package Multiple: 20 | EBV - 0 |
|
Buy Now | |
|
|
MacroQuest Electronics | 0 |
|
RFQ |
Part Details for MPX53DP

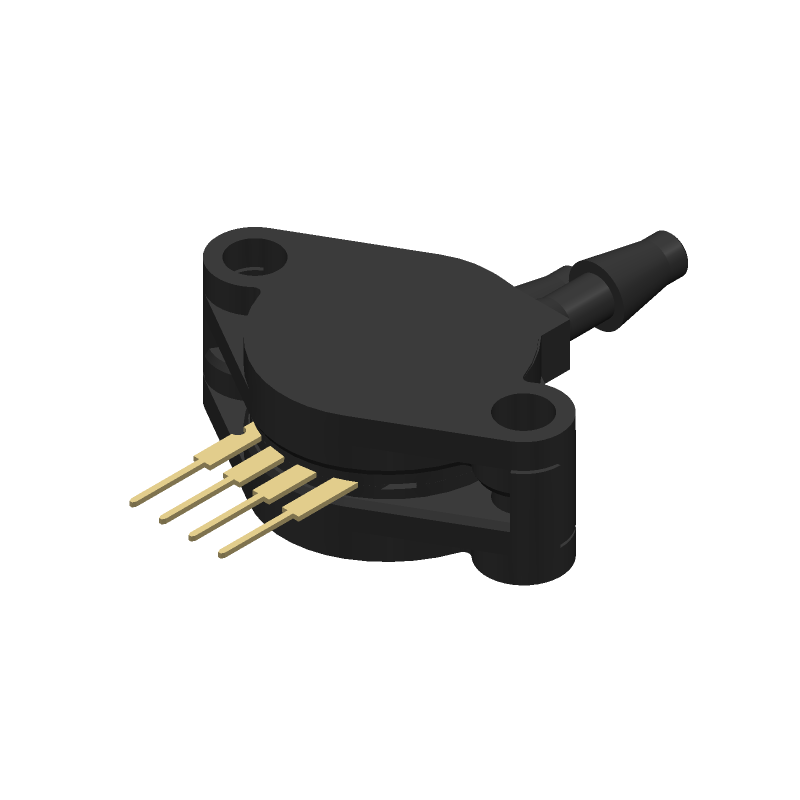

MPX53DP CAD Models
MPX53DP Part Data Attributes
|
|
MPX53DP
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MPX53DP
NXP Semiconductors
DIFFERENTIAL, PEIZORESISTIVE PRESSURE SENSOR, 0-7.25Psi, 0.4%, 20-80mV, CIRCULAR, THROUGH HOLE MOUNT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | UNI BODY PACKAGE-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | NXP | |
| Accuracy-Max (%) | 0.4% | |
| Body Breadth | 10.67 mm | |
| Body Height | 28.7 mm | |
| Body Length or Diameter | 29.46 mm | |
| Housing | PLASTIC | |
| Linearity (%) | 0.4 % | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Offset-Nom | 20MV | |
| Operating Current-Max | 6 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Range | 20-80mV | |
| Output Type | ANALOG VOLTAGE | |
| Package Shape/Style | CIRCULAR | |
| Port Type | BARBED | |
| Pressure Range-Max | 7.25 Psi | |
| Pressure Range-Min | ||
| Pressure Sensing Mode | DIFFERENTIAL | |
| Response Time | 1000 µs | |
| Sensors/Transducers Type | PRESSURE SENSOR,PIEZORESISTIVE | |
| Supply Voltage-Max | 6 V | |
| Supply Voltage-Min | 3 V | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
MPX53DP Frequently Asked Questions (FAQ)
-
A good PCB layout for the MPX53DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
-
Calibration of the MPX53DP involves applying known pressures and measuring the corresponding output voltages. A two-point calibration is recommended, with one point at atmospheric pressure and another at the maximum expected pressure.
-
The MPX53DP's accuracy is affected by temperature, with a typical temperature coefficient of ±0.5% per °C. Temperature compensation can be achieved using an external temperature sensor and a microcontroller.
-
The MPX53DP is not designed for use in humid or wet environments. It is recommended to use a protective coating or enclosure to prevent moisture ingress.
-
The MPX53DP can operate from a single 5V supply, but a regulated 5V supply is recommended to minimize noise and ensure accurate readings.
