MPX2010GP Information
MPX2010GP by NXP Semiconductors is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for MPX2010GP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07F9817
|
Newark | Pressure Sensor, Gauge, 0-10Kpa, Pressure Type:Gauge, Operating Pressure Min:0Kpa, Operating Pressure Max:10Kpa, Supply Voltage Min:1V, Supply Voltage Max:16V, Sensor Case/Package:Sip, No. Of Pins:4Pins, Sensor Output Type:Analog Rohs Compliant: Yes |Nxp MPX2010GP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2506 |
|
$11.7600 / $16.7800 | Buy Now |
|
DISTI #
58M9332
|
Newark | Sensor, Gauge Press 1.45 Psi, 344B4, Pressure Type:Gauge, Sensitivity, V/P:2.5Mv/Kpa, Operating Pressure Min:0Kpa, Operating Pressure Max:10Kpa, Supply Voltage Min:10V, Supply Voltage Max:16V, Sensor Case Style:Sip, No. Of Rohs Compliant: Yes |Nxp MPX2010GP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2486 |
|
$11.7600 / $16.7800 | Buy Now |
|
DISTI #
MPX2010GP-ND
|
DigiKey | SENSOR 1.45PSIG 0.19" .025V Min Qty: 1 Lead time: 39 Weeks Container: Tray |
11 In Stock |
|
$12.6009 / $17.1200 | Buy Now |
|
DISTI #
07F9817
|
Avnet Americas | Pressure Sensor, Gauge, 0 kPa, 10 kPa, 10 V, 16 V, SIP - Bulk (Alt: 07F9817) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 66 Weeks, 0 Days Container: Bulk | 20 Partner Stock |
|
$12.5200 / $16.7800 | Buy Now |
|
DISTI #
MPX2010GP
|
Avnet Americas | Pressure Sensor, Gauge, 0 kPa, 10 kPa, 10 V, 16 V, SIP - Trays (Alt: MPX2010GP) RoHS: Compliant Min Qty: 300 Package Multiple: 100 Lead time: 39 Weeks, 0 Days Container: Tray | 0 |
|
$10.4047 / $12.2301 | Buy Now |
|
DISTI #
841-MPX2010GP
|
Mouser Electronics | Board Mount Pressure Sensors PRES SEN COMP 10KPA RoHS: Compliant | 317 |
|
$12.0000 / $17.1200 | Buy Now |
|
DISTI #
MPX2010GP
|
TME | Sensor: pressure, 0÷10kPa, gage, OUT: analogue voltage Min Qty: 1 | 41 |
|
$18.2700 / $23.3900 | Buy Now |
|
DISTI #
MPX2010GP
|
Avnet Silica | Pressure Sensor Gauge 0 kPa 10 kPa 10 V 16 V SIP (Alt: MPX2010GP) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 18 Weeks, 0 Days | Silica - 120 |
|
Buy Now | |
|
DISTI #
MPX2010GP
|
EBV Elektronik | Pressure Sensor Gauge 0 kPa 10 kPa 10 V 16 V SIP (Alt: MPX2010GP) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 41 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
MacroQuest Electronics | 0 |
|
RFQ |
Part Details for MPX2010GP
MPX2010GP CAD Models
MPX2010GP Part Data Attributes
|
|

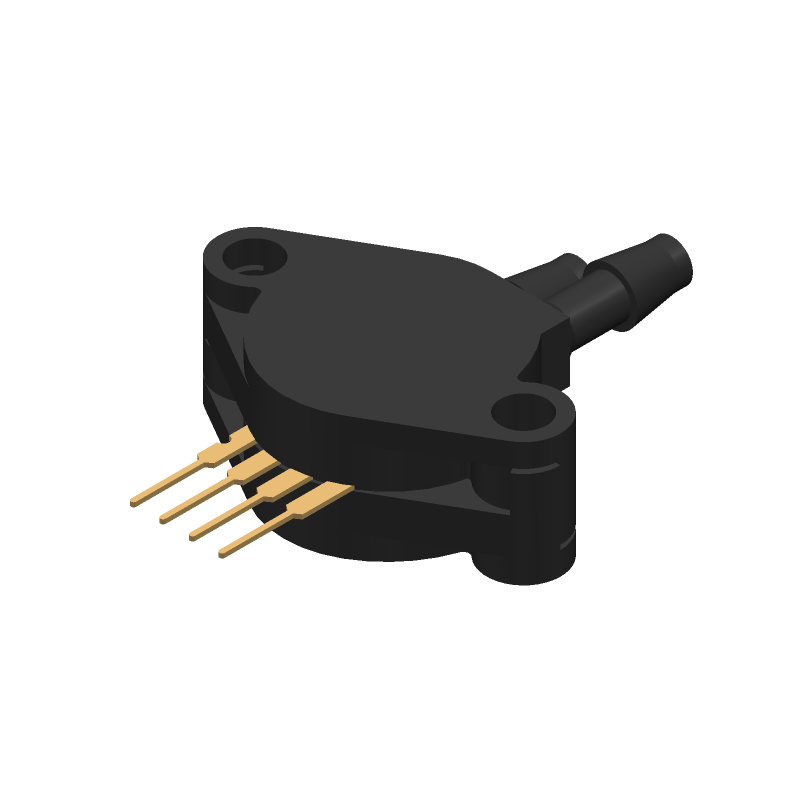

MPX2010GP
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MPX2010GP
NXP Semiconductors
GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 1%, 0-25mV, RECTANGULAR, THROUGH HOLE MOUNT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 66 Weeks | |
| Samacsys Manufacturer | NXP | |
| Accuracy-Max (%) | 1% | |
| Additional Feature | TEMPERATURE COMPENSATED | |
| Body Breadth | 8 mm | |
| Body Height | 28.7 mm | |
| Body Length or Diameter | 29.46 mm | |
| Housing | PLASTIC | |
| Linearity (%) | 1 % | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Offset-Nom | 0V | |
| Operating Current-Max | 6 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Range | 0-25mV | |
| Output Type | ANALOG VOLTAGE | |
| Package Shape/Style | RECTANGULAR | |
| Port Type | BARBED | |
| Pressure Range-Max | 1.45 Psi | |
| Pressure Range-Min | ||
| Pressure Sensing Mode | GAGE | |
| Response Time | 1000 µs | |
| Sensors/Transducers Type | PRESSURE SENSOR,PIEZORESISTIVE | |
| Supply Voltage-Max | 16 V | |
| Supply Voltage-Min | 10 V | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
