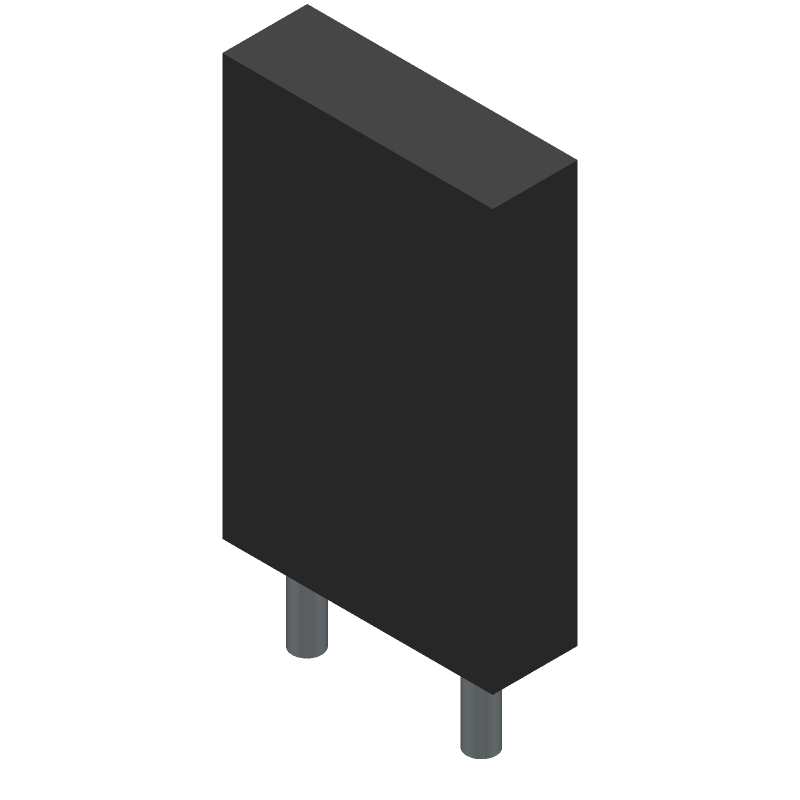

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MPT100A3R3F by TE Connectivity
Results Overview of MPT100A3R3F by TE Connectivity
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MPT100A3R3F Information
MPT100A3R3F by TE Connectivity is a Thick Film Resistor.
Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MPT100A3R3F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1712-MPT100A3R3F-ND
|
DigiKey | RES 3.3 OHM 1% 100W TO247 Min Qty: 1 Lead time: 17 Weeks Container: Tube |
338 In Stock |
|
$14.3011 / $17.2000 | Buy Now |
|
DISTI #
3-2176429-7
|
Avnet Americas | Resistor, 3.3 Ohm, ? 1%, 100 W, TO-247, Thick Film, Power - Rail/Tube (Alt: 3-2176429-7) Min Qty: 350 Package Multiple: 350 Lead time: 15 Weeks, 3 Days Container: Tube | 0 |
|
$13.6032 / $13.8866 | Buy Now |
|
DISTI #
279-MPT100A3R3F
|
Mouser Electronics | Thick Film Resistors - Through Hole MPT100 3R3 1% RoHS: Compliant | 223 |
|
$14.2900 / $19.0300 | Buy Now |
|
|
Onlinecomponents.com | MPT100 3R3 1% RoHS: Compliant |
350 In Stock |
|
$14.1700 / $40.4700 | Buy Now |
|
DISTI #
80933919
|
Verical | MPT100A3R3F Min Qty: 2 Package Multiple: 1 Date Code: 2420 | Americas - 339 |
|
$26.7670 / $52.6110 | Buy Now |
|
DISTI #
3-2176429-7
|
Avnet Abacus | Resistor 33 Ohm 1 100 W TO247 Thick Film Power (Alt: 3-2176429-7) RoHS: Compliant Min Qty: 350 Package Multiple: 350 Lead time: 17 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | MPT100 3R3 1% RoHS: Compliant |
350 In Stock |
|
$14.1700 / $40.4700 | Buy Now |
Part Details for MPT100A3R3F
MPT100A3R3F CAD Models
MPT100A3R3F Part Data Attributes
|
|
MPT100A3R3F
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
MPT100A3R3F
TE Connectivity
Fixed Resistor, Thick Film, 100W, 3.3ohm, 700V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, 6219
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | TO247 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 15 Weeks, 3 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | FREE AIR POWER: 3.5W | |
| Construction | TO-220 | |
| Lead Length | 14.48 mm | |
| Lead Spacing | 10.16 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 20.7 mm | |
| Package Length | 15.75 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Package Width | 4.95 mm | |
| Packing Method | TUBE | |
| Physical Dimension | 15.75mm x 20.7mm x 4.95mm | |
| Rated Power Dissipation (P) | 100 W | |
| Resistance | 3.3 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 6219 | |
| Surface Mount | NO | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Shape | WIRE | |
| Tolerance | 1% | |
| Working Voltage | 700 V |
MPT100A3R3F Frequently Asked Questions (FAQ)
-
TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow this layout to ensure proper thermal performance and to prevent overheating.
-
Yes, MPT100A3R3F is designed to withstand high-vibration environments. However, it's crucial to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. TE Connectivity recommends using a strain relief mechanism to prevent damage to the device or PCB.
-
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, which can be found in the datasheet. Additionally, TE Connectivity recommends using a thermal interface material (TIM) to improve heat transfer between the device and heat sink. Regular cleaning and maintenance of the heat sink and surrounding area are also crucial.
-
MPT100A3R3F is not designed for use in humid or wet environments. It's essential to follow proper sealing and conformal coating guidelines to prevent moisture ingress. TE Connectivity recommends using a moisture-resistant coating or potting compound to protect the device in harsh environments.
-
The recommended torque specification for the screw terminals of MPT100A3R3F is 0.5 Nm to 1.5 Nm. Over-tightening can damage the device, while under-tightening can lead to poor connections and reliability issues.
