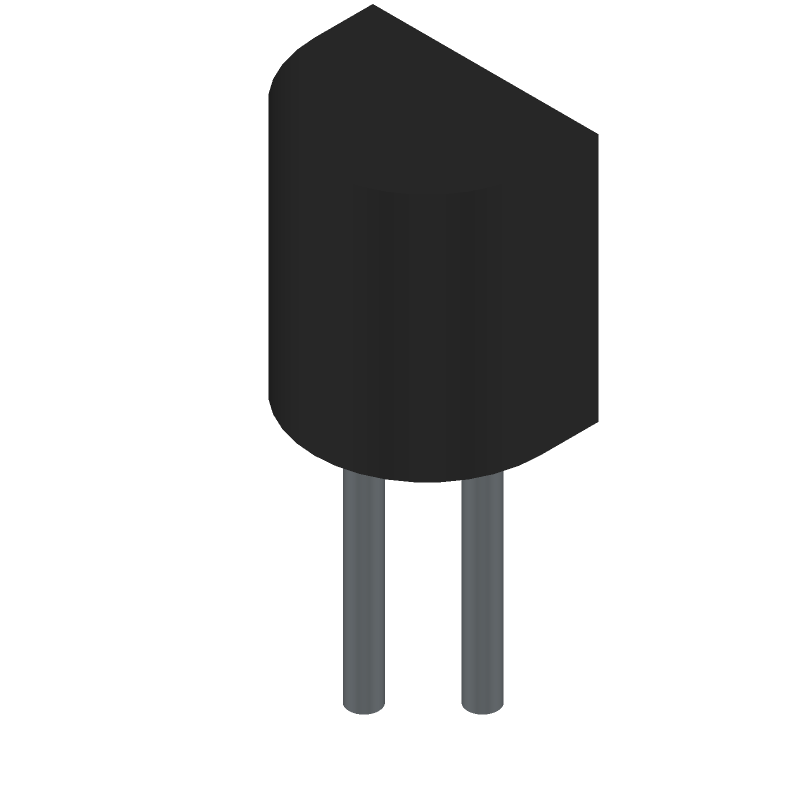

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MPSA06 by SPC Multicomp
Results Overview of MPSA06 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MPSA06 Information
MPSA06 by SPC Multicomp is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MPSA06
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08N7668
|
Newark | Bipolar Transistor, Npn, 80V, To-92, Transistor Polarity:Npn, Collector Emitter Voltage Max:80V, Continuous Collector Current:500Ma, Power Dissipation:625Mw, Transistor Mounting:Through Hole, No. Of Pins:3Pins, Qualification:- Rohs Compliant: Yes |Multicomp Pro MPSA06 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 29373 |
|
$0.0450 / $0.1400 | Buy Now |
Part Details for MPSA06
MPSA06 CAD Models
MPSA06 Part Data Attributes
|
|
MPSA06
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MPSA06
SPC Multicomp
Small Signal Bipolar Transistor,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.95 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Collector Current-Max (IC) | 0.5 A | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-92 | |
| JESD-30 Code | O-PBCY-W3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 0.625 W | |
| Power Dissipation-Max (Abs) | 1.5 W | |
| Surface Mount | NO | |
| Terminal Form | WIRE | |
| Terminal Position | BOTTOM | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
Alternate Parts for MPSA06
This table gives cross-reference parts and alternative options found for MPSA06. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MPSA06, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MPSA06 | onsemi | $0.1384 | 500 mA, 80 V NPN Small Signal Bipolar Junction Transistor, TO-92-3, 10000-BLKBG | MPSA06 vs MPSA06 |
| MPSA06 | Fairchild Semiconductor Corporation | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN | MPSA06 vs MPSA06 |
MPSA06 Frequently Asked Questions (FAQ)
-
The maximum safe operating area (SOA) for the MPSA06 is not explicitly stated in the datasheet. However, it's recommended to follow the general guidelines for SOA calculations, considering the device's voltage, current, and power ratings. A safe operating area can be estimated by plotting the device's voltage and current ratings on a graph, ensuring that the operating point stays within the recommended boundaries.
-
Thermal management is crucial for the MPSA06. Ensure proper heat sinking, and consider the device's thermal resistance (RθJA) and maximum junction temperature (Tj). Use a heat sink with a low thermal resistance, and apply a thermal interface material (TIM) to minimize thermal resistance between the device and heat sink. Monitor the device's temperature and adjust the heat sink design accordingly.
-
For optimal performance and thermal management, follow these PCB layout guidelines: 1) Use a solid copper plane for the heat sink, 2) Keep the device's pins as short as possible, 3) Use a wide trace for the collector pin, 4) Place decoupling capacitors close to the device, and 5) Ensure good thermal conductivity between the device and heat sink.
-
Yes, the MPSA06 can be used in switching applications, but it's essential to consider the device's switching characteristics, such as turn-on and turn-off times, and ensure that the application's switching frequency is within the device's capabilities. Additionally, consider the device's power ratings, voltage, and current handling to avoid overheating or damage.
-
To protect the MPSA06 from ESD, follow standard ESD handling procedures: 1) Use an ESD wrist strap or mat, 2) Ground the device's pins during handling, 3) Use ESD-protected packaging and storage, and 4) Implement ESD protection circuits in the application, such as TVS diodes or resistors.
