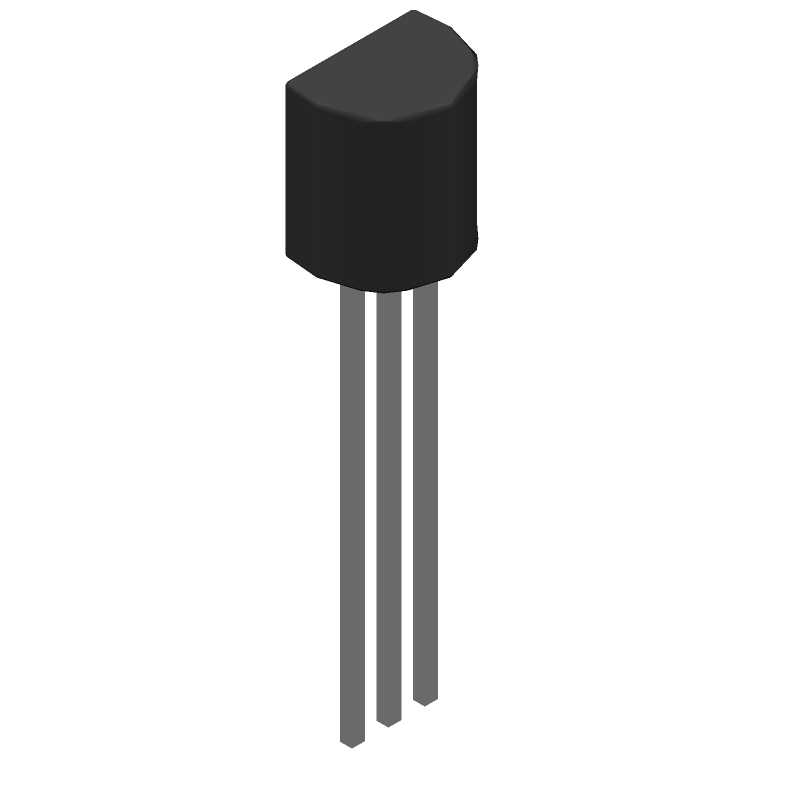

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MPSA06 by Rectron Semiconductor
Results Overview of MPSA06 by Rectron Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MPSA06 Information
MPSA06 by Rectron Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MPSA06
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
583-MPSA06
|
Mouser Electronics | Bipolar Transistors - BJT NPN,0.5A,80V GenPur RoHS: Compliant | 10496 |
|
$0.0440 / $0.4000 | Buy Now |
|
DISTI #
V36:1790_19887077
|
Arrow Electronics | Trans GP BJT NPN 80V 0.5A 625mW 3-Pin TO-92 RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Date Code: 2443 | Americas - 8000 |
|
$0.0479 / $0.0647 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
14486 In Stock |
|
$0.0354 / $0.0677 | Buy Now |
|
DISTI #
73502391
|
Verical | Trans GP BJT NPN 80V 0.5A 625mW 3-Pin TO-92 RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Date Code: 2340 | Americas - 14000 |
|
$0.0498 / $0.0880 | Buy Now |
|
DISTI #
87601636
|
Verical | Trans GP BJT NPN 80V 0.5A 625mW 3-Pin TO-92 RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Date Code: 2443 | Americas - 8000 |
|
$0.0479 / $0.0647 | Buy Now |
|
|
Master Electronics | RoHS: Compliant |
14486 In Stock |
|
$0.0354 / $0.0677 | Buy Now |
Part Details for MPSA06
MPSA06 CAD Models
MPSA06 Part Data Attributes
|
|
MPSA06
Rectron Semiconductor
Buy Now
Datasheet
|
Compare Parts:
MPSA06
Rectron Semiconductor
Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECTRON LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Rectron | |
| Collector Current-Max (IC) | 0.5 A | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-92 | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.625 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
Alternate Parts for MPSA06
This table gives cross-reference parts and alternative options found for MPSA06. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MPSA06, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MPSA06 | Diotec Semiconductor AG | $0.0310 | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3 | MPSA06 vs MPSA06 |
| MPSA06 | Micro Electronics Corporation | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | MPSA06 vs MPSA06 |
| MPSA06D74Z | Fairchild Semiconductor Corporation | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN | MPSA06 vs MPSA06D74Z |
| MPSA06RA | Rochester Electronics LLC | Check for Price | 500mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92 | MPSA06 vs MPSA06RA |
| MPSA06 | Intersil Corporation | Check for Price | MPSA06 | MPSA06 vs MPSA06 |
| MPSA06STOB | Diodes Incorporated | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 COMPATIBLE, E-LINE PACKAGE-3 | MPSA06 vs MPSA06STOB |
| MPSA06RA | Fairchild Semiconductor Corporation | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | MPSA06 vs MPSA06RA |
| MPSA06STOA | Diodes Incorporated | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 COMPATIBLE, E-LINE PACKAGE-3 | MPSA06 vs MPSA06STOA |
MPSA06 Frequently Asked Questions (FAQ)
-
The maximum safe operating area (SOA) for the MPSA06 is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. As a general guideline, the SOA is typically limited by the device's thermal capabilities, and it's recommended to keep the device within the specified thermal boundaries to ensure reliable operation.
-
To ensure the MPSA06 is properly biased for linear operation, it's essential to set the base-emitter voltage (VBE) and collector-emitter voltage (VCE) within the recommended operating ranges. Typically, VBE should be around 0.65-0.7V, and VCE should be around 1-2V. Additionally, the base current should be limited to prevent overheating and ensure linear operation.
-
For optimal performance and thermal management, it's recommended to use a PCB layout that minimizes thermal resistance and ensures good heat dissipation. This can be achieved by using a thermal pad or heat sink, and placing the device on a thick copper plane. Additionally, ensure that the PCB layout allows for good airflow and heat dissipation around the device.
-
Yes, the MPSA06 can be used as a switch, but it's essential to consider the device's switching characteristics, such as the turn-on and turn-off times, and the maximum collector current. Additionally, ensure that the device is properly biased and that the base current is limited to prevent overheating. It's also important to consider the device's power dissipation and thermal management when used as a switch.
-
To protect the MPSA06 from electrostatic discharge (ESD), it's recommended to handle the device with anti-static precautions, such as using an anti-static wrist strap or mat. Additionally, ensure that the PCB layout includes ESD protection devices, such as TVS diodes or ESD protection arrays, to prevent damage from electrostatic discharge.
