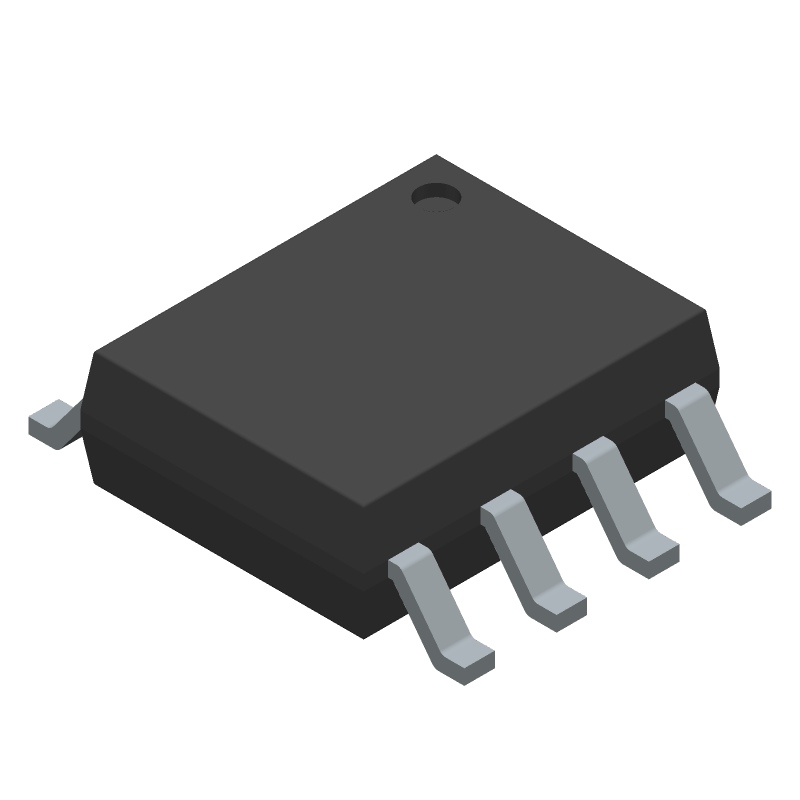

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MPQ4569GN-AEC1 by Monolithic Power Systems
Results Overview of MPQ4569GN-AEC1 by Monolithic Power Systems
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
MPQ4569GN-AEC1 Information
MPQ4569GN-AEC1 by Monolithic Power Systems is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MPQ4569GN-AEC1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MPQ4569GN-AEC1-ND
|
DigiKey | IC REG BUCK ADJ 300MA 8SOIC Lead time: 16 Weeks Container: Tube | Temporarily Out of Stock |
|
Buy Now |
Part Details for MPQ4569GN-AEC1
MPQ4569GN-AEC1 CAD Models
MPQ4569GN-AEC1 Part Data Attributes
|
|
MPQ4569GN-AEC1
Monolithic Power Systems
Buy Now
Datasheet
|
Compare Parts:
MPQ4569GN-AEC1
Monolithic Power Systems
Switching Regulator
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MONOLITHIC POWER SYSTEMS INC | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Monolithic Power Systems (MPS) | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 75 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.3 A | |
| Output Voltage-Max | 67.5 V | |
| Output Voltage-Min | 1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.7 mm | |
| Supply Voltage-Nom (Vsup) | 24 V | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
MPQ4569GN-AEC1 Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Place the device near a thermal pad or a heat sink to improve heat dissipation.
-
Ensure that the output capacitor has a low ESR and is placed close to the device. Also, use a minimum of 10uF output capacitance and a 1uF ceramic capacitor in parallel with the output capacitor.
-
The maximum input voltage is 26V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
-
The output voltage can be programmed using an external resistor divider network connected to the FB pin. The resistor values can be calculated using the formula provided in the datasheet.
-
The maximum output current is 3A, but it's recommended to operate the device within the specified output current range of 0A to 2A for optimal performance and reliability.
