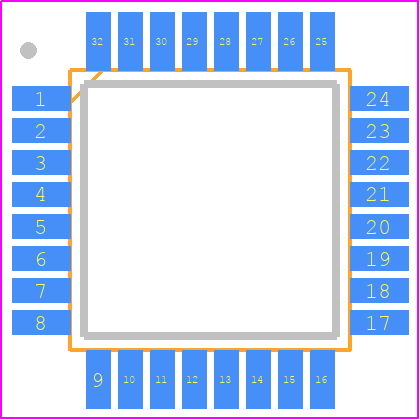

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MPC9446AC by Renesas Electronics Corporation
Results Overview of MPC9446AC by Renesas Electronics Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MPC9446AC Information
MPC9446AC by Renesas Electronics Corporation is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MPC9446AC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | IC,TEN DISTRIBUTED-OUTPUT CLOCK DRIVER,CMOS,QFP,32PIN,PLASTIC | 76 |
|
$6.3400 / $10.2810 | Buy Now |
Part Details for MPC9446AC
MPC9446AC CAD Models
MPC9446AC Part Data Attributes
|
|
MPC9446AC
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
MPC9446AC
Renesas Electronics Corporation
3.3V And 2.5V,LVCMOS Clock Fanout Buffer, TQFP250/Tray
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | TQFP | |
| Pin Count | 32 | |
| Manufacturer Package Code | PRG32 | |
| Reach Compliance Code | compliant | |
| ECCN Code | NLR | |
| HTS Code | 8542390001 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | Renesas Electronics | |
| JESD-609 Code | e3 | |
| Logic IC Type | LOW SKEW CLOCK DRIVER | |
| Moisture Sensitivity Level | 3 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | TIN |
