MPC561CZP40 by:

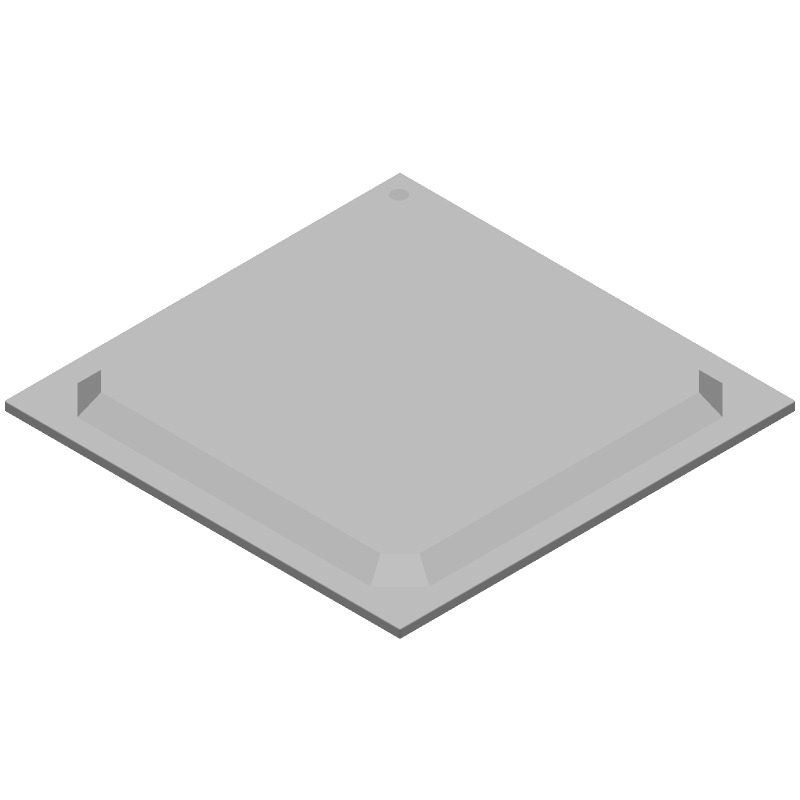

32-BIT, FLASH, 40MHz, RISC MICROCONTROLLER, PBGA388

Part Details for MPC561CZP40 by NXP Semiconductors

Results Overview of MPC561CZP40 by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Transportation and Logistics Renewable Energy Automotive Robotics and Drones

MPC561CZP40 Information

MPC561CZP40 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MPC561CZP40

Part # Distributor Description Stock Price Buy
DISTI # 75C3671
Newark Ic, microcontroller,32-Bit, cmos, bga,388Pin, plastic Rohs Compliant: Yes |Nxp MPC561CZP40 RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $53.4300
$53.4300 Buy Now
DISTI # MPC561CZP40
Avnet Americas MCU 32-bit MPC56xx e200 RISC ROMLess 2.6V/5V 388-Pin BGA Tray - Trays (Alt: MPC561CZP40) RoHS: Not Compliant Min Qty: 200 Package Multiple: 200 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 200 $54.6452
  • 400 $52.6062
  • 800 $50.5672
  • 1,200 $48.5282
  • 1,600 $46.4892
$46.4892 / $54.6452 Buy Now
DISTI # 841-MPC561CZP40
Mouser Electronics 32-bit Microcontrollers - MCU MPC561 NOFLASH Qorivva RoHS: Not Compliant 0
  • 200 $55.1000
$55.1000 Order Now
Rochester Electronics MPC561 - SILVER OAK-NXP 32-bit MCU, Power Architecture core, 40 RoHS: Not Compliant Status: Active Min Qty: 1 51
  • 25 $53.6600
  • 100 $50.9800
  • 500 $48.2900
  • 1,000 $45.6100
  • 10,000 $42.9300
$42.9300 / $53.6600 Buy Now
DISTI # MPC561CZP40
Avnet Silica MCU 32bit MPC56xx e200 RISC ROMLess 26V5V 388Pin BGA Tray (Alt: MPC561CZP40) RoHS: Not Compliant Min Qty: 40 Package Multiple: 40 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MPC561CZP40
EBV Elektronik MCU 32bit MPC56xx e200 RISC ROMLess 26V5V 388Pin BGA Tray (Alt: MPC561CZP40) RoHS: Not Compliant Min Qty: 40 Package Multiple: 40 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for MPC561CZP40

MPC561CZP40 Part Data Attributes

Parametric Data
MPC561CZP40 NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MPC561CZP40 NXP Semiconductors 32-BIT, FLASH, 40MHz, RISC MICROCONTROLLER, PBGA388
Rohs Code No
Part Life Cycle Code Not Recommended
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388
Reach Compliance Code unknown
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 12 Weeks
Samacsys Manufacturer NXP
Has ADC NO
Address Bus Width 24
Bit Size 32
Boundary Scan NO
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width 32
JESD-30 Code S-PBGA-B388
JESD-609 Code e0
Length 27 mm
Moisture Sensitivity Level 3
Number of I/O Lines 16
Number of Terminals 388
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA388,26X26,40
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
RAM (bytes) 32768
ROM (words) 458752
ROM Programmability FLASH
Seated Height-Max 2.55 mm
Speed 40 MHz
Supply Voltage-Max 2.7 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 2.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead/Silver (Sn/Pb/Ag)
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 27 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for MPC561CZP40

This table gives cross-reference parts and alternative options found for MPC561CZP40. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MPC561CZP40, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MPC561CZP40 Motorola Semiconductor Products Check for Price RISC Microcontroller, 32-Bit, FLASH, 40MHz, CMOS, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388 MPC561CZP40 vs MPC561CZP40
MPC561CZP40 Rochester Electronics LLC Check for Price 32-BIT, FLASH, 40 MHz, RISC MICROCONTROLLER, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388 MPC561CZP40 vs MPC561CZP40
MPC561CZP40 Motorola Mobility LLC Check for Price 32-BIT, FLASH, 40MHz, RISC MICROCONTROLLER, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388 MPC561CZP40 vs MPC561CZP40
MPC561CZP40 Freescale Semiconductor Check for Price 32-BIT, FLASH, 40MHz, RISC MICROCONTROLLER, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388 MPC561CZP40 vs MPC561CZP40
Part Number Manufacturer Composite Price Description Compare
MPC555LFMZP40 Rochester Electronics LLC Check for Price 32-BIT, RISC MICROCONTROLLER, PBGA272, PLASTIC, BGA-272 MPC561CZP40 vs MPC555LFMZP40
MPC562MZP56R2 Freescale Semiconductor Check for Price 32-BIT, FLASH, 56MHz, RISC MICROCONTROLLER, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388 MPC561CZP40 vs MPC562MZP56R2
MPC566CZP40 Motorola Mobility LLC Check for Price 32-BIT, FLASH, 40MHz, RISC MICROCONTROLLER, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151AAL-1, BGA-388 MPC561CZP40 vs MPC566CZP40
MPC562MZP56 Motorola Semiconductor Products Check for Price RISC Microcontroller, 32-Bit, FLASH, 56MHz, CMOS, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388 MPC561CZP40 vs MPC562MZP56
MPC565CZP40R2 Motorola Mobility LLC Check for Price 32-BIT, FLASH, 40MHz, RISC MICROCONTROLLER, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, BGA-388 MPC561CZP40 vs MPC565CZP40R2
MPC561MZP56 Motorola Semiconductor Products Check for Price RISC Microcontroller, 32-Bit, FLASH, 56MHz, CMOS, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388 MPC561CZP40 vs MPC561MZP56
MPC565CZP56R2 Motorola Mobility LLC Check for Price 32-BIT, FLASH, 56MHz, RISC MICROCONTROLLER, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, BGA-388 MPC561CZP40 vs MPC565CZP56R2
MPC561MZP56R2 Freescale Semiconductor Check for Price Freescale 32-bit MCU, Power Architecture core, 56MHz, -40/+125degC, Automotive Grade, PBGA 388 MPC561CZP40 vs MPC561MZP56R2
MPC565CZP40 Rochester Electronics LLC Check for Price RISC Microcontroller, MPC561CZP40 vs MPC565CZP40
MPC562MZP56 Motorola Mobility LLC Check for Price 32-BIT, FLASH, 56MHz, RISC MICROCONTROLLER, PBGA388, 27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151, BGA-388 MPC561CZP40 vs MPC562MZP56

MPC561CZP40 Related Parts

MPC561CZP40 Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the MPC561CZP40 is -40°C to 125°C, but this can vary depending on the specific application and usage.

  • The clock settings for the MPC561CZP40 can be configured using the Clock Generation Module (CGM) and the Power Management Module (PMM). The CGM generates the clock signals for the processor and peripherals, while the PMM controls the power modes and clock gating. Refer to the device's reference manual for detailed configuration information.

  • The maximum frequency of the MPC561CZP40's CPU is 264 MHz, but this can be adjusted using the clock settings and power management features.

  • The MPC561CZP40 has several low-power modes, including Stop, Wait, and Doze modes. These modes can be implemented using the Power Management Module (PMM) and the Clock Generation Module (CGM). The PMM controls the power modes and clock gating, while the CGM generates the clock signals for the processor and peripherals. Refer to the device's reference manual for detailed implementation information.

  • The MPC561CZP40 has 1.5 MB of flash memory, which can be used for program storage and data storage.
