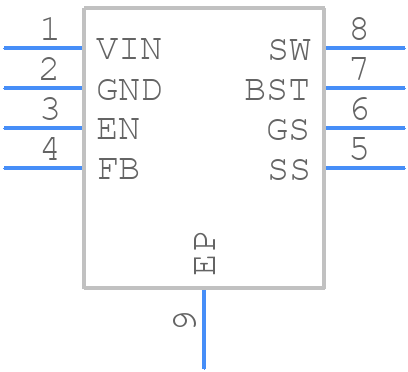

Part Symbol
-

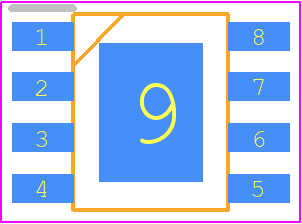

Footprint
-

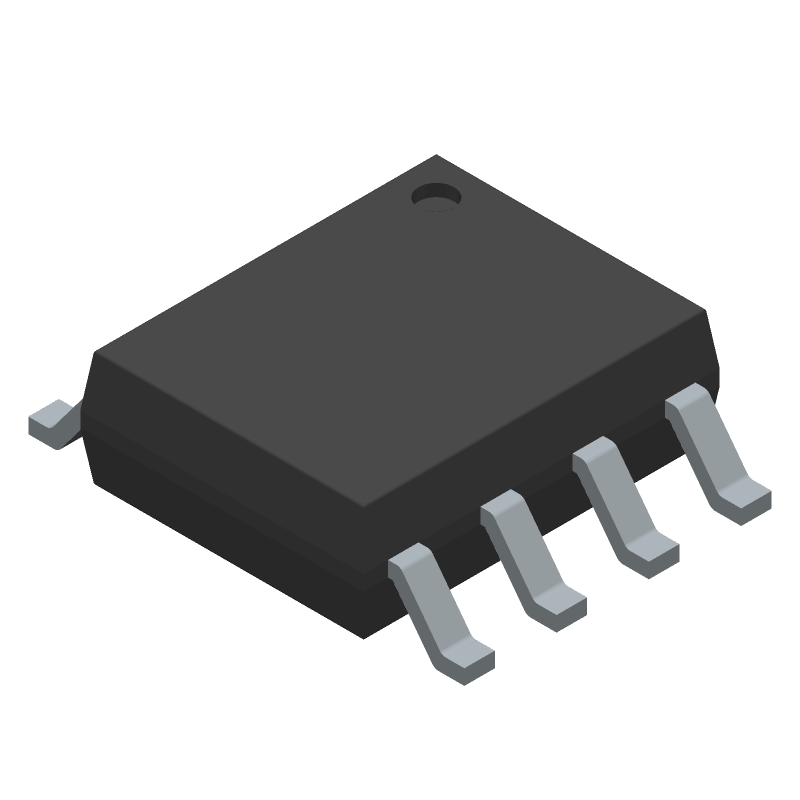

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MP2494DN-LF-Z by Monolithic Power Systems
Results Overview of MP2494DN-LF-Z by Monolithic Power Systems
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MP2494DN-LF-Z Information
MP2494DN-LF-Z by Monolithic Power Systems is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MP2494DN-LF-Z
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1589-1597-1-ND
|
DigiKey | IC REG BUCK ADJ 2A 8SOICE Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2053 In Stock |
|
$1.5000 / $4.4200 | Buy Now |
|
DISTI #
MP2494DN-LF-Z
|
Avnet Americas | - Tape and Reel (Alt: MP2494DN-LF-Z) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$1.4400 / $1.5345 | Buy Now |
|
DISTI #
946-MP2494DNLFZ
|
Mouser Electronics | Switching Voltage Regulators 2A, 55V, 100kHz Step Down Converter RoHS: Compliant | 2013 |
|
$1.5000 / $4.4200 | Buy Now |
|
DISTI #
MP2494DN-LF-Z
|
IBS Electronics | MP2494 SERIES 55 V 2 A 120 KHZ SURFACE MOUNT STEP-DOWN CONVERTER - SOIC-8E Min Qty: 2500 Package Multiple: 1 | 0 |
|
$1.9500 | Buy Now |
|
DISTI #
MP2494DN-LF-Z
|
Avnet Silica | (Alt: MP2494DN-LF-Z) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 22 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | IC REG BUCK ADJ 2A 8SOIC | 7500 |
|
RFQ |
Part Details for MP2494DN-LF-Z
MP2494DN-LF-Z CAD Models
MP2494DN-LF-Z Part Data Attributes
|
|
MP2494DN-LF-Z
Monolithic Power Systems
Buy Now
Datasheet
|
Compare Parts:
MP2494DN-LF-Z
Monolithic Power Systems
Switching Regulator, Current-mode, 120kHz Switching Freq-Max, PDSO8, SOIC-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MONOLITHIC POWER SYSTEMS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Monolithic Power Systems (MPS) | |
| Additional Feature | OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 15V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 55 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 2A | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.7 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 120 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
