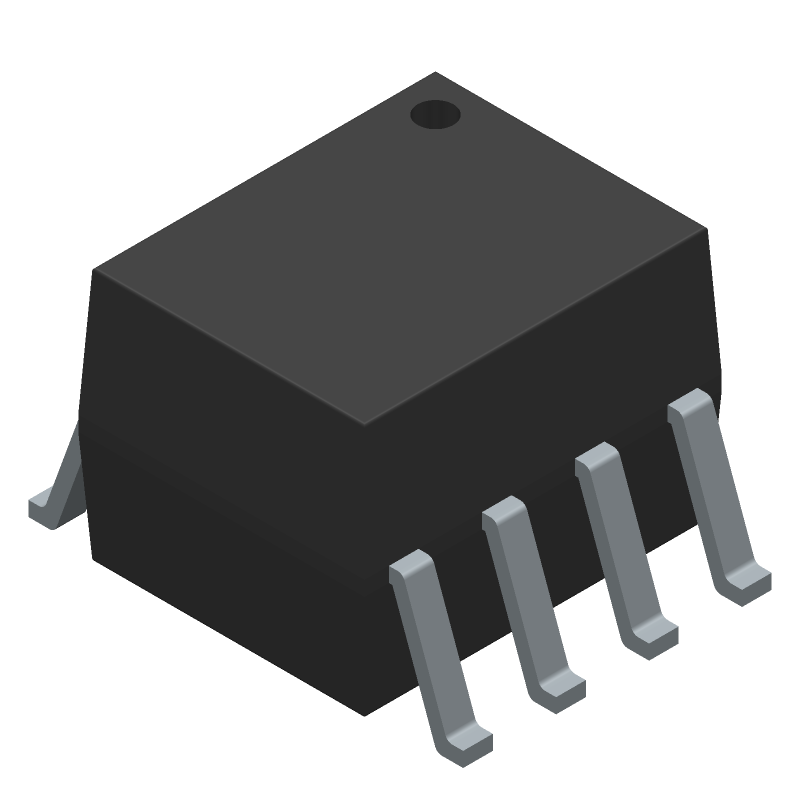

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MOCD213R2VM by onsemi
Results Overview of MOCD213R2VM by onsemi
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MOCD213R2VM Information
MOCD213R2VM by onsemi is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for MOCD213R2VM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84H6400
|
Newark | Optocoupler, Transistor, 2.5Kv, Soic-8, No. Of Channels:2 Channel, Optocoupler Case Style:Soic, No. Of Pins:8Pins, Forward Current If Max:60Ma, Isolation Voltage:2.5Kv, Ctr Min:100%, Collector Emitter Voltage V(Br)Ceo:70V Rohs Compliant: Yes |Onsemi MOCD213R2VM RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2800 / $0.3790 | Buy Now |
|
DISTI #
MOCD213R2VMCT-ND
|
DigiKey | OPTOISO 2.5KV 2CH TRANS 8-SOIC Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1200 In Stock |
|
$0.3133 / $1.2200 | Buy Now |
|
DISTI #
MOCD213R2VM
|
Avnet Americas | Optocoupler DC-IN 2-CH Transistor DC-OUT 8-Pin SOIC N T/R - Tape and Reel (Alt: MOCD213R2VM) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Container: Reel | 47500 Factory Stock |
|
$0.2584 / $0.2638 | Buy Now |
|
DISTI #
512-MOCD213R2VM
|
Mouser Electronics | Transistor Output Optocouplers 8-Pin Optocoupler 2Ch Phototransistor RoHS: Compliant | 3741 |
|
$0.2820 / $0.8400 | Buy Now |
|
|
Onlinecomponents.com | 8-pin SOIC Dual-Channel Phototransistor Output Optocoupler RoHS: Compliant | Alternative Product Available |
|
$0.2624 / $0.2860 | Buy Now |
|
DISTI #
MOCD213R2VM
|
IBS Electronics | OPTOCOUPLER DC-IN 2-CH TRANSISTOR DC-OUT 8-PIN SOIC N T/R Min Qty: 2500 Package Multiple: 1 | 0 |
|
$0.2860 / $0.2925 | Buy Now |
|
DISTI #
MOCD213R2VM
|
Avnet Asia | Optocoupler DC-IN 2-CH Transistor DC-OUT 8-Pin SOIC N T/R (Alt: MOCD213R2VM) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days | 0 |
|
$0.2073 / $0.2318 | Buy Now |
|
DISTI #
MOCD213R2VM
|
Avnet Silica | Optocoupler DCIN 2CH Transistor DCOUT 8Pin SOIC N TR (Alt: MOCD213R2VM) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | OPTOISO 2.5KV 2CH TRANS 8SOIC | 7500 |
|
RFQ | |
|
DISTI #
MOCD213R2VM
|
EBV Elektronik | Optocoupler DCIN 2CH Transistor DCOUT 8Pin SOIC N TR (Alt: MOCD213R2VM) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for MOCD213R2VM
MOCD213R2VM CAD Models
MOCD213R2VM Part Data Attributes
|
|
MOCD213R2VM
onsemi
Buy Now
Datasheet
|
Compare Parts:
MOCD213R2VM
onsemi
8-pin SOIC Dual-Channel Phototransistor Output Optocoupler, SOIC-8, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 | |
| Manufacturer Package Code | 751DZ | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | UL APPROVED, VDE APPROVED | |
| Coll-Emtr Bkdn Voltage-Min | 70 V | |
| Configuration | SEPARATE, 2 CHANNELS | |
| Current Transfer Ratio-Min | 100% | |
| Current Transfer Ratio-Nom | 100% | |
| Dark Current-Max | 50 nA | |
| Forward Current-Max | 0.06 A | |
| Forward Voltage-Max | 1.55 V | |
| Isolation Voltage-Max | 2500 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 2 | |
| On-State Current-Max | 0.15 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER | |
| Power Dissipation-Max | 0.15 W | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed |
Alternate Parts for MOCD213R2VM
This table gives cross-reference parts and alternative options found for MOCD213R2VM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MOCD213R2VM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MOCD213R2 | Fairchild Semiconductor Corporation | Check for Price | Transistor Output Optocoupler, 2-Element, 3000V Isolation, PLASTIC, SOIC-8 | MOCD213R2VM vs MOCD213R2 |
| MOCD213R2 | Motorola Semiconductor Products | Check for Price | Transistor Output Optocoupler, 2-Element, 3000V Isolation, PLASTIC, SOIC-8 | MOCD213R2VM vs MOCD213R2 |
| MOCD213R2-M | QT Optoelectronics | Check for Price | MOCD213R2-M, | MOCD213R2VM vs MOCD213R2-M |
| MOCD213 | Motorola Semiconductor Products | Check for Price | Transistor Output Optocoupler, 2-Element, 3000V Isolation, PLASTIC, SOIC-8 | MOCD213R2VM vs MOCD213 |
