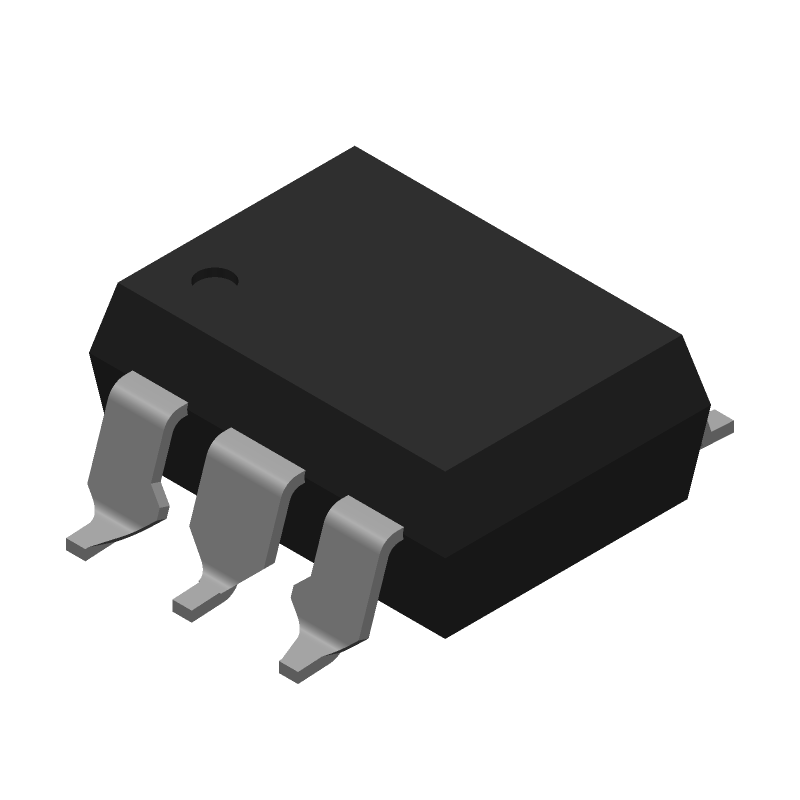

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MOC3042SVM by onsemi
Results Overview of MOC3042SVM by onsemi
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
MOC3042SVM Information
MOC3042SVM by onsemi is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for MOC3042SVM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MOC3042SVM-ND
|
DigiKey | OPTOISOLTR 4.17KV TRIAC 1CH 6SMD Min Qty: 1 Lead time: 8 Weeks Container: Tube |
880 In Stock |
|
$0.5121 / $1.4000 | Buy Now |
|
DISTI #
MOC3042SVM
|
Avnet Americas | Optocoupler Triac AC-OUT 1-CH 400VDRM 6-Pin PDIP SMD White Bulk - Rail/Tube (Alt: MOC3042SVM) RoHS: Compliant Min Qty: 3000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Tube | 1000 Factory Stock |
|
$0.2978 / $0.3040 | Buy Now |
|
DISTI #
512-MOC3042SVM
|
Mouser Electronics | Triac & SCR Output Optocouplers 6Pin400V Optocoupler Zero Cross Triac Dr RoHS: Compliant | 817 |
|
$0.3820 / $1.2800 | Buy Now |
|
|
Onlinecomponents.com | Triac Driver Output Optocoupler, 6-Pin DIP 400V Zero Crossing RoHS: Compliant | 0 |
|
$0.3010 / $0.3713 | Buy Now |
|
DISTI #
MOC3042SVM
|
Avnet Silica | Optocoupler Triac ACOUT 1CH 400VDRM 6Pin PDIP SMD White Bulk (Alt: MOC3042SVM) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MOC3042SVM
|
EBV Elektronik | Optocoupler Triac ACOUT 1CH 400VDRM 6Pin PDIP SMD White Bulk (Alt: MOC3042SVM) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 1000 |
|
RFQ |
Part Details for MOC3042SVM
MOC3042SVM CAD Models
MOC3042SVM Part Data Attributes
|
|
MOC3042SVM
onsemi
Buy Now
Datasheet
|
Compare Parts:
MOC3042SVM
onsemi
Triac Driver Output Optocoupler, 6-Pin DIP 400V Zero Crossing, PDIP-6, 1000-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PDIP-6 | |
| Manufacturer Package Code | 646BY | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | UL APPROVED, VDE APPROVED | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.06 A | |
| Input Trigger Current-Max | 0.01 A | |
| Isolation Voltage-Max | 4170 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| On-State Voltage-Max | 3 V | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR | |
| Packing Method | TUBE | |
| Peak Off-state Voltage-Min | 400 V | |
| Peak Surge Current | 1 A | |
| Repetitive Peak Off-state Voltage | 400 V | |
| Reverse Leakage Current-Max | 0.01 A | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed |
