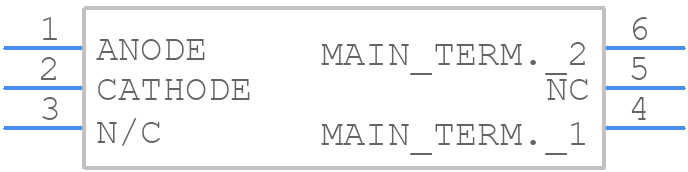

Part Symbol
-

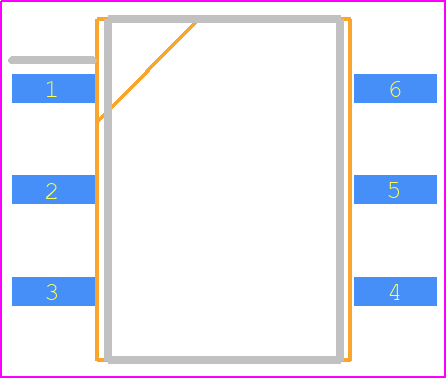

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MOC3011SR2VM by onsemi
Results Overview of MOC3011SR2VM by onsemi
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MOC3011SR2VM Information
MOC3011SR2VM by onsemi is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for MOC3011SR2VM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2832-MOC3011SR2VM-488-ND
|
DigiKey | OPTOISOLTR 4.17KV TRIAC 1CH 6SMD Min Qty: 1 Lead time: 15 Weeks Container: Tape & Reel (TR) MARKETPLACE PRODUCT |
3000 In Stock |
|
$0.3200 | Buy Now |
|
DISTI #
MOC3011SR2VMCT-ND
|
DigiKey | OPTOISOLTR 4.17KV TRIAC 1CH 6SMD Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2536 / $1.3300 | Buy Now |
|
DISTI #
MOC3011SR2VM
|
Avnet Americas | Optocoupler Triac AC-OUT 1-CH 250VDRM 6-Pin PDIP SMD White T/R - Tape and Reel (Alt: MOC3011SR2VM) RoHS: Compliant Min Qty: 2084 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 3000 Partner Stock |
|
$0.2963 / $0.3243 | Buy Now |
|
DISTI #
MOC3011SR2VM
|
Avnet Americas | Optocoupler Triac AC-OUT 1-CH 250VDRM 6-Pin PDIP SMD White T/R - Tape and Reel (Alt: MOC3011SR2VM) RoHS: Compliant Min Qty: 4000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Reel | 3000 Factory Stock |
|
$0.2337 / $0.2385 | Buy Now |
|
DISTI #
512-MOC3011SR2VM
|
Mouser Electronics | Triac & SCR Output Optocouplers 6Pin 250V Optocoupl Rand Phs Triac Drvr RoHS: Compliant | 0 |
|
$0.2530 / $0.5900 | Order Now |
|
|
Onlinecomponents.com | Triac Driver Output Optocoupler, 6-Pin DIP 250V Random Phase RoHS: Compliant | Alternative Product Available |
|
$0.2362 / $0.2681 | Buy Now |
|
DISTI #
MOC3011SR2VM
|
EBV Elektronik | Optocoupler Triac ACOUT 1CH 250VDRM 6Pin PDIP SMD White TR (Alt: MOC3011SR2VM) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 3000 |
|
RFQ | |
|
|
Master Electronics | Triac Driver Output Optocoupler, 6-Pin DIP 250V Random Phase RoHS: Compliant | Alternative Product Available |
|
$0.2362 / $0.2681 | Buy Now |
Part Details for MOC3011SR2VM
MOC3011SR2VM CAD Models
MOC3011SR2VM Part Data Attributes
|
|
MOC3011SR2VM
onsemi
Buy Now
Datasheet
|
Compare Parts:
MOC3011SR2VM
onsemi
Triac Driver Output Optocoupler, 6-Pin DIP 250V Random Phase, PDIP-6, 1000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PDIP-6 | |
| Manufacturer Package Code | 646BY | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | UL RECOGNIZED, VDE APPROVED | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.06 A | |
| Input Trigger Current-Max | 0.01 A | |
| Input Trigger Current-Nom | 10 mA | |
| Isolation Voltage-Max | 5300 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| On-State Voltage-Max | 3 V | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRIAC OUTPUT OPTOCOUPLER | |
| Peak Off-state Voltage-Min | 250 V | |
| Peak Surge Current | 1 A | |
| Repetitive Peak Off-state Voltage | 250 V | |
| Reverse Leakage Current-Max | 0.0001 A | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed |
