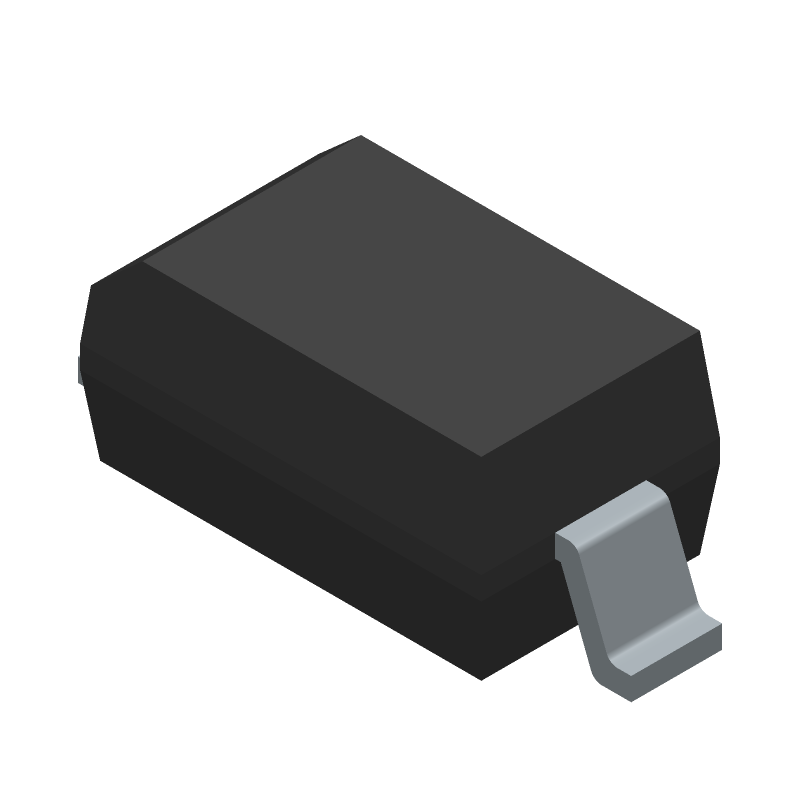

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMSZ5264BT1G by onsemi
Results Overview of MMSZ5264BT1G by onsemi
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
MMSZ5264BT1G Information
MMSZ5264BT1G by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMSZ5264BT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AC1362
|
Newark | Zener Diode, Aec-Q101, 0.5W, 60V, Sod123, Zener Voltage Vz Typ:60V, Power Dissipation Pd:500Mw, Diode Case Style:Sod-123, Zener Tolerance ±:5%, No. Of Pins:2Pins, Operating Temperature Max:150°C, Product Range:Mmsz52Xxxt1G Series, Rohs Compliant: Yes |Onsemi MMSZ5264BT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 22731 |
|
$0.0330 | Buy Now |
|
DISTI #
26K4602
|
Newark | Zener Diode, 500Mw, 60V, Sod-123, Full Reel, Zener Voltage Nom:60V, Power Dissipation:500Mw, Diode Case Style:Sod-123, No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Qualification:- Rohs Compliant: Yes |Onsemi MMSZ5264BT1G RoHS: Compliant Min Qty: 9000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0280 / $0.0400 | Buy Now |
|
DISTI #
MMSZ5264BT1GOSCT-ND
|
DigiKey | DIODE ZENER 60V 500MW SOD123 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5248 In Stock |
|
$0.0220 / $0.1700 | Buy Now |
|
DISTI #
MMSZ5264BT1G
|
Avnet Americas | Zener Single Diode, 60 V, 500 mW, SOD-123, 2 Pins, 150 ?C, Surface Mount - Tape and Reel (Alt: MMSZ5264BT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel | 15000 |
|
$0.0216 / $0.0237 | Buy Now |
|
DISTI #
46AC1362
|
Avnet Americas | Zener Single Diode, 60 V, 500 mW, SOD-123, 2 Pins, 150 ?C, Surface Mount - Product that comes on tape, but is not reeled (Alt: 46AC1362) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 67 Partner Stock |
|
$0.0600 / $0.1860 | Buy Now |
|
DISTI #
863-MMSZ5264BT1G
|
Mouser Electronics | Zener Diodes 60V 500mW RoHS: Compliant | 13931 |
|
$0.0220 / $0.1700 | Buy Now |
|
DISTI #
V72:2272_07301007
|
Arrow Electronics | Diode Zener Single 60V 5% 500mW 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2109 Container: Cut Strips | Americas - 23268 |
|
$0.0225 / $0.1576 | Buy Now |
|
|
Onlinecomponents.com | MMSZ5264BT1G Zener Diode, 60V 5% 500 mW SMT 2-Pin SOD-123 | ON Semiconductor MMSZ5264BT1G RoHS: Compliant |
24000 In Stock |
|
$0.0210 / $0.0254 | Buy Now |
|
DISTI #
83717142
|
Verical | Diode Zener Single 60V 5% 500mW 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2433 | Americas - 24000 |
|
$0.0287 / $0.0325 | Buy Now |
|
DISTI #
58780627
|
Verical | Diode Zener Single 60V 5% 500mW 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 262 Package Multiple: 1 Date Code: 2109 | Americas - 23268 |
|
$0.0225 / $0.0392 | Buy Now |
Part Details for MMSZ5264BT1G
MMSZ5264BT1G CAD Models
MMSZ5264BT1G Part Data Attributes
|
|
MMSZ5264BT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMSZ5264BT1G
onsemi
Zener Diode 500 mW SOD-123, SOD-123 2 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123 2 LEAD | |
| Pin Count | 2 | |
| Manufacturer Package Code | 425-04 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 16 Weeks, 3 Days | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 170 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 60 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 2.1 mA |
Alternate Parts for MMSZ5264BT1G
This table gives cross-reference parts and alternative options found for MMSZ5264BT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMSZ5264BT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMSZ5264B | Motorola Semiconductor Products | Check for Price | Zener Diode, 60V V(Z), 5%, 0.5W, Silicon, Unidirectional, CASE 425-04, 2 PIN | MMSZ5264BT1G vs MMSZ5264B |
| MMSZ5264B-GS08 | Vishay Semiconductors | Check for Price | Zener Diode, 60V V(Z), 5%, 0.5W, Silicon, Unidirectional, LEAD FREE, PLASTIC PACKAGE-2 | MMSZ5264BT1G vs MMSZ5264B-GS08 |
| MMSZ5264BT3G | onsemi | Check for Price | 60V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC, CASE 425-04, 2 PIN | MMSZ5264BT1G vs MMSZ5264BT3G |
| MMSZ5264B | WEITRON INTERNATIONAL CO., LTD. | Check for Price | Zener Diode, 60V V(Z), 5%, 0.5W | MMSZ5264BT1G vs MMSZ5264B |
| MMSZ5264BT1 | onsemi | Check for Price | 60V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 425-04, 2 PIN | MMSZ5264BT1G vs MMSZ5264BT1 |
| MMSZ5264B | PanJit Semiconductor | Check for Price | Zener Diode, 60V V(Z), 5%, 0.5W | MMSZ5264BT1G vs MMSZ5264B |
MMSZ5264BT1G Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the MMSZ5264BT1G is -65°C to 150°C.
-
The MMSZ5264BT1G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and storage to prevent damage.
-
The maximum power dissipation for the MMSZ5264BT1G is 500 mW. It's essential to ensure that the device does not exceed this rating to prevent overheating and damage.
-
Yes, the MMSZ5264BT1G is suitable for high-reliability applications due to its robust design and manufacturing process. However, it's essential to follow proper design and testing procedures to ensure the device meets the required reliability standards.
-
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. It's also essential to use a solder with a melting point compatible with the device's temperature rating.
