MMSZ5240B-TP by: Micro Commercial Components

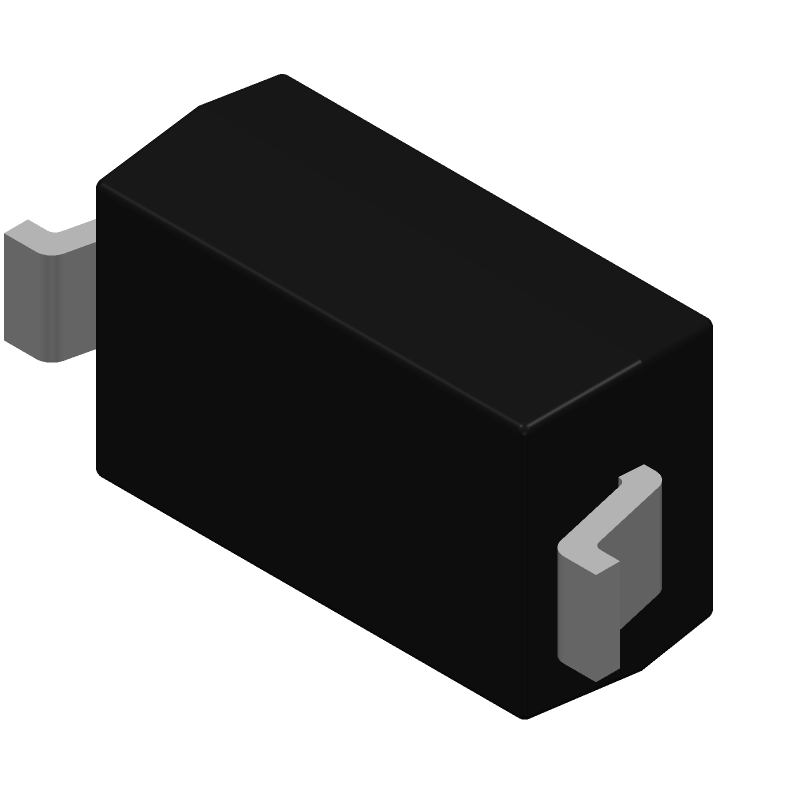

Zener Diode, 8.7V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for MMSZ5240B-TP by Micro Commercial Components

Results Overview of MMSZ5240B-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Electronic Manufacturing Renewable Energy Automotive

MMSZ5240B-TP Information

MMSZ5240B-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for MMSZ5240B-TP

Part # Distributor Description Stock Price Buy
DISTI # 21AM9771
Newark Zener Diode, 10V, 0.5W, Sod-123 Rohs Compliant: Yes |Micro Commercial Components MMSZ5240B-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 3000
  • 1 $0.1320
  • 10 $0.0960
  • 25 $0.0810
  • 50 $0.0670
  • 100 $0.0520
  • 250 $0.0520
  • 500 $0.0510
  • 1,000 $0.0500
$0.0500 / $0.1320 Buy Now
DISTI # 353-MMSZ5240B-TPCT-ND
DigiKey DIODE ZENER 10V 500MW SOD123 Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 9207
In Stock
  • 1 $0.1200
  • 10 $0.0820
  • 100 $0.0400
  • 500 $0.0382
  • 1,000 $0.0372
  • 3,000 $0.0260
  • 6,000 $0.0240
  • 9,000 $0.0210
  • 15,000 $0.0206
  • 21,000 $0.0180
  • 30,000 $0.0167
$0.0167 / $0.1200 Buy Now
DISTI # 833-MMSZ5240B-TP
Mouser Electronics Zener Diodes 500mW 10V RoHS: Compliant 7820
  • 1 $0.1200
  • 10 $0.0820
  • 100 $0.0400
  • 500 $0.0390
  • 1,000 $0.0380
  • 3,000 $0.0260
  • 6,000 $0.0240
  • 9,000 $0.0210
$0.0210 / $0.1200 Buy Now
DISTI # V36:1790_06836387
Arrow Electronics Zener Diode Single 10V 5% 17Ohm 500mW 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 22 Weeks Date Code: 2419 Americas - 15000
  • 3,000 $0.0244
  • 6,000 $0.0223
  • 9,000 $0.0197
  • 15,000 $0.0169
  • 21,000 $0.0157
$0.0157 / $0.0244 Buy Now
Quest Components   2036
  • 1 $0.1470
  • 205 $0.0490
  • 1,021 $0.0147
$0.0147 / $0.1470 Buy Now
DISTI # MMSZ5240B-TP
TME Diode: Zener, 0.5W, 10V, SMD, reel,tape, SOD123, single diode, 3uA Min Qty: 20 5930
  • 20 $0.0410
  • 100 $0.0319
  • 500 $0.0191
  • 3,000 $0.0172
  • 15,000 $0.0152
$0.0152 / $0.0410 Buy Now

Part Details for MMSZ5240B-TP

MMSZ5240B-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MMSZ5240B-TP Part Data Attributes

Parametric Data
MMSZ5240B-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
MMSZ5240B-TP Micro Commercial Components Zener Diode, 8.7V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description PACKAGE-2
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 17 Ω
Forward Voltage-Max (VF) 0.9 V
JESD-30 Code R-PDSO-G2
JESD-609 Code e3
Knee Impedance-Max 600 Ω
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.5 W
Qualification Status Not Qualified
Reference Voltage-Nom 10 V
Reverse Current-Max 0.003 µA
Reverse Test Voltage 8 V
Surface Mount YES
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Temp Coeff-Max 7.5 mV/°C
Voltage Tol-Max 5%
Working Test Current 20 mA
