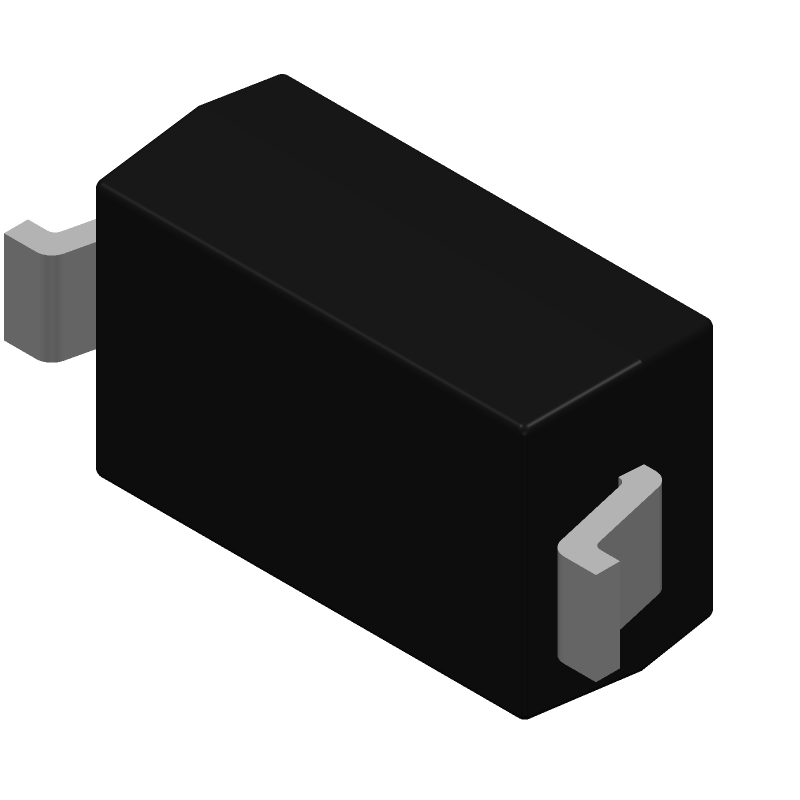

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMSZ4713-TP by Micro Commercial Components
Results Overview of MMSZ4713-TP by Micro Commercial Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MMSZ4713-TP Information
MMSZ4713-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMSZ4713-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MMSZ4713-TPMSCT-ND
|
DigiKey | DIODE ZENER 30V 500MW SOD123 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
526 In Stock |
|
$0.0176 / $0.1200 | Buy Now |
|
DISTI #
833-MMSZ4713-TP
|
Mouser Electronics | Zener Diodes 500mW ZENER RoHS: Compliant | 5336 |
|
$0.0180 / $0.1200 | Buy Now |
|
DISTI #
V79:2366_23769256
|
Arrow Electronics | Zener Diode Single 30V 5% 500mW 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 1841 | Americas - 100 |
|
$0.0097 | Buy Now |
|
DISTI #
MMSZ4713-TP
|
IBS Electronics | MMSZ4713-TP by MCC is a Zener diode, 3.6V nominal Zener voltage, 500mW power dissipation, SOD-123 package, suitable for voltage regulation and protection applications. Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.0252 / $0.0274 | Buy Now |
Part Details for MMSZ4713-TP
MMSZ4713-TP CAD Models
MMSZ4713-TP Part Data Attributes
|
|
MMSZ4713-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MMSZ4713-TP
Micro Commercial Components
Zener Diode, 30V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 30 V | |
| Reverse Current-Max | 0.00001 µA | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 0.05 mA |
Alternate Parts for MMSZ4713-TP
This table gives cross-reference parts and alternative options found for MMSZ4713-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMSZ4713-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMSZ4713T1G | onsemi | $0.0354 | Low Current Zener Diode Voltage Regulator 30 V, SOD-123 2 LEAD, 3000-REEL | MMSZ4713-TP vs MMSZ4713T1G |
| MMSZ4713G | Rectron Semiconductor | Check for Price | Zener Diode, 30V V(Z), 5%, 0.5W, Silicon, Unidirectional, LEAD FREE, PLASTIC PACKAGE-2 | MMSZ4713-TP vs MMSZ4713G |
| MMSZ4713-VT/R7 | PanJit Semiconductor | Check for Price | Zener Diode, 30V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 | MMSZ4713-TP vs MMSZ4713-VT/R7 |
| MMSZ4713T1T3 | Motorola Mobility LLC | Check for Price | 30V, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 425, 2 PIN | MMSZ4713-TP vs MMSZ4713T1T3 |
| MMSZ4713 | Motorola Semiconductor Products | Check for Price | Zener Diode, 30V V(Z), 5%, 0.5W, Silicon, Unidirectional, CASE 425-04, 2 PIN | MMSZ4713-TP vs MMSZ4713 |
| MMSZ4713T3 | Motorola Mobility LLC | Check for Price | 30V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 425, 2 PIN | MMSZ4713-TP vs MMSZ4713T3 |
MMSZ4713-TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature for MMSZ4713-TP is -65°C to 150°C.
-
Yes, MMSZ4713-TP is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
-
The typical junction-to-ambient thermal resistance of MMSZ4713-TP is 350°C/W.
-
Yes, MMSZ4713-TP is suitable for high-reliability applications, with a failure rate of <1% per 1,000 hours at 125°C.
-
Yes, MMSZ4713-TP is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
