Diodes / Zener Diodes / MMSZ4687-E3-08
Datasheets
MMSZ4687-E3-08 by:

Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for MMSZ4687-E3-08 by Vishay Intertechnologies

Results Overview of MMSZ4687-E3-08 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Electronic Manufacturing Renewable Energy Automotive

MMSZ4687-E3-08 Information

MMSZ4687-E3-08 by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for MMSZ4687-E3-08

Part # Distributor Description Stock Price Buy
DISTI # 60AC3745
Newark Zener Diode, 4.3V, 0.5W, Sod-123, Zener Voltage Vz Typ:4.3V, Power Dissipation Pd:500Mw, Diode Case Style:Sod-123, Zener Tolerance ±:5%, No. Of Pins:2Pins, Operating Temperature Max:150°C, Product Range:-, Automotive Qualification Rohs Compliant: Yes |Vishay MMSZ4687-E3-08 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2920
  • 1 $0.2230
  • 10 $0.1590
  • 25 $0.1410
  • 50 $0.1230
  • 100 $0.1050
  • 250 $0.0880
  • 500 $0.0700
  • 1,000 $0.0540
$0.0540 / $0.2230 Buy Now
DISTI # 06X4522
Newark Diode, Zener, 4.3V, 500Mw, Sod-123-2, Full Reel, Zener Voltage Nom:4.3V, Power Dissipation:500Mw, Diode Case Style:Sod-123, No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:- Rohs Compliant: Yes |Vishay MMSZ4687-E3-08 RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 10,000 $0.0460
  • 20,000 $0.0400
  • 30,000 $0.0330
$0.0330 / $0.0460 Buy Now
DISTI # MMSZ4687-E3-08
Avnet Americas ZENER DIODE SOD123 - Tape and Reel (Alt: MMSZ4687-E3-08) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 11 Weeks, 0 Days Container: Reel 0
  • 15,000 $0.0255
  • 30,000 $0.0250
  • 60,000 $0.0247
  • 90,000 $0.0242
  • 120,000 $0.0235
$0.0235 / $0.0255 Buy Now
DISTI # 78-MMSZ4687-E3-08
Mouser Electronics Zener Diodes 4.3 Volt 0.5W 5% RoHS: Compliant 43860
  • 1 $0.1300
  • 10 $0.0850
  • 100 $0.0460
  • 1,000 $0.0410
  • 2,500 $0.0350
  • 10,000 $0.0320
  • 15,000 $0.0230
$0.0230 / $0.1300 Buy Now
DISTI # MMSZ4687-E3-08
EBV Elektronik ZENER DIODE SOD123 (Alt: MMSZ4687-E3-08) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days EBV - 0
Buy Now
LCSC 500mW 4.3V SOD-123 Zener Diodes ROHS 40
  • 5 $0.3595
  • 50 $0.2915
  • 150 $0.2624
  • 500 $0.2261
  • 3,000 $0.2099
  • 6,000 $0.2001
$0.2001 / $0.3595 Buy Now
New Advantage Corporation ZENER DIODE, 0.5W, LL, IZT50�A, 5% , SOD123 RoHS: Compliant Min Qty: 1 Package Multiple: 3000 51000
  • 3,000 $0.0300
  • 15,000 $0.0200
$0.0200 / $0.0300 Buy Now

Part Details for MMSZ4687-E3-08

MMSZ4687-E3-08 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

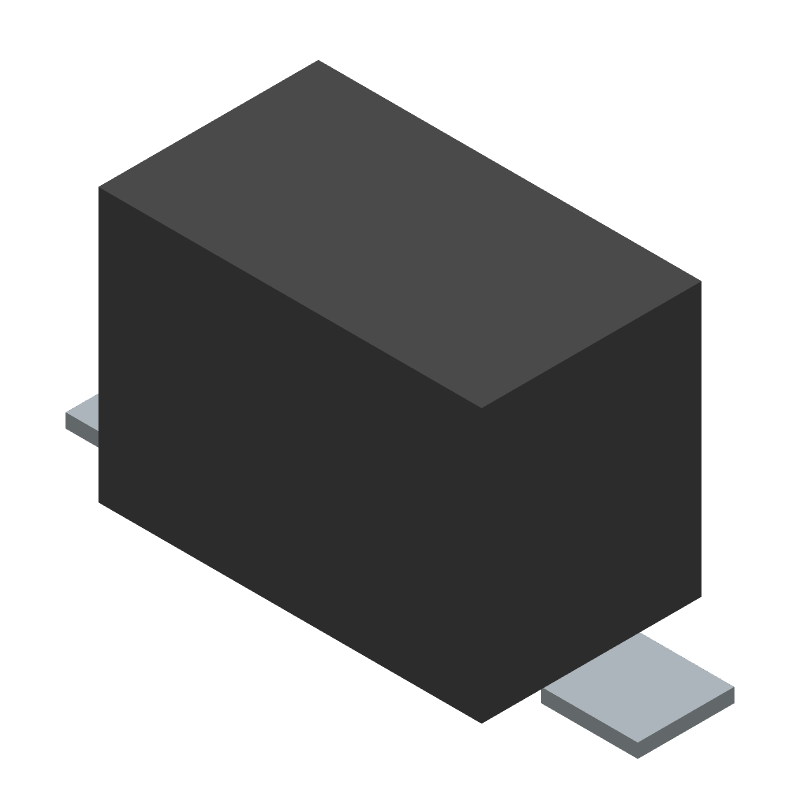

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MMSZ4687-E3-08 Part Data Attributes

Parametric Data
MMSZ4687-E3-08 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MMSZ4687-E3-08 Vishay Intertechnologies Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 11 Weeks
Samacsys Manufacturer Vishay
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
JESD-30 Code R-PDSO-G2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.5 W
Reference Voltage-Nom 4.3 V
Surface Mount YES
Technology ZENER
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tol-Max 5%
Working Test Current 0.05 mA

Alternate Parts for MMSZ4687-E3-08

This table gives cross-reference parts and alternative options found for MMSZ4687-E3-08. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMSZ4687-E3-08, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MMSZ4687T1G onsemi $0.0331 Low Current Zener Diode Voltage Regulator 4.3 V, SOD-123 2 LEAD, 3000-REEL MMSZ4687-E3-08 vs MMSZ4687T1G
CMHZ4687TR Central Semiconductor Corp Check for Price Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, SOD-123, 2 PIN MMSZ4687-E3-08 vs CMHZ4687TR
MMSZ4687-V-AU_R2_000A1 PanJit Semiconductor Check for Price Zener Diode, MMSZ4687-E3-08 vs MMSZ4687-V-AU_R2_000A1
MMSZ4687-TP Micro Commercial Components Check for Price Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 MMSZ4687-E3-08 vs MMSZ4687-TP
MMSZ4687 Rectron Semiconductor Check for Price Zener Diode, 4.3V V(Z), 4.99%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 MMSZ4687-E3-08 vs MMSZ4687
MMSZ4687T1 Motorola Semiconductor Products Check for Price Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC, CASE 425, 2 PIN MMSZ4687-E3-08 vs MMSZ4687T1
Part Number Manufacturer Composite Price Description Compare
MMSZ4687T1T3 Motorola Mobility LLC Check for Price 4.3V, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 425, 2 PIN MMSZ4687-E3-08 vs MMSZ4687T1T3
MMSZ4687-V_R1_00001 PanJit Semiconductor Check for Price Zener Diode, MMSZ4687-E3-08 vs MMSZ4687-V_R1_00001
MMSZ4687T1 onsemi Check for Price 4.3V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 425-04, 2 PIN MMSZ4687-E3-08 vs MMSZ4687T1
MMSZ4687-E3-18 Vishay Intertechnologies Check for Price Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 MMSZ4687-E3-08 vs MMSZ4687-E3-18
MMSZ4687-V_R2_00001 PanJit Semiconductor Check for Price Zener Diode, MMSZ4687-E3-08 vs MMSZ4687-V_R2_00001
MMSZ4687-G3-18 Vishay Intertechnologies Check for Price Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2 MMSZ4687-E3-08 vs MMSZ4687-G3-18
MMSZ4687 Lite-On Semiconductor Corporation Check for Price Zener Diode, 4.3V V(Z), 4.99%, 0.5W, Silicon, Unidirectional, GREEN, ULTRA SMALL, PLASTIC PACKAGE-2 MMSZ4687-E3-08 vs MMSZ4687
MMSZ4687-V-GS08 Vishay Intertechnologies Check for Price Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 MMSZ4687-E3-08 vs MMSZ4687-V-GS08
CMHZ4687BK Central Semiconductor Corp Check for Price Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, SOD-123, 2 PIN MMSZ4687-E3-08 vs CMHZ4687BK
MMSZ4687 Micro Commercial Components Check for Price Zener Diode, 4.3V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC PACKAGE-2 MMSZ4687-E3-08 vs MMSZ4687

MMSZ4687-E3-08 Related Parts

MMSZ4687-E3-08 Frequently Asked Questions (FAQ)

  • The recommended storage temperature for MMSZ4687-E3-08 is -40°C to 125°C.

  • Yes, the MMSZ4687-E3-08 is suitable for high-reliability applications due to its high-quality construction and rigorous testing.

  • Yes, the MMSZ4687-E3-08 is qualified to AEC-Q101, making it suitable for automotive applications.

  • The maximum power dissipation of the MMSZ4687-E3-08 is 500 mW.

  • Yes, the MMSZ4687-E3-08 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
