Transistors / Small Signal Bipolar Transistors / MMST3904-TP
Datasheets
MMST3904-TP by: Micro Commercial Components

Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC, PACKAGE-3

Part Details for MMST3904-TP by Micro Commercial Components

Results Overview of MMST3904-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

MMST3904-TP Information

MMST3904-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for MMST3904-TP

Part # Distributor Description Stock Price Buy
DISTI # 21AM9751
Newark Transistor, Npn, 40V, 0.2A, Sot-323 Rohs Compliant: Yes |Micro Commercial Components MMST3904-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 2960
  • 1 $0.1340
  • 10 $0.0980
  • 25 $0.0840
  • 50 $0.0710
  • 100 $0.0570
  • 250 $0.0560
  • 500 $0.0540
  • 1,000 $0.0530
$0.0530 / $0.1340 Buy Now
DISTI # MMST3904TPMSCT-ND
DigiKey TRANS NPN 40V 0.2A SOT-323 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4350
In Stock
  • 1 $0.1700
  • 10 $0.1050
  • 100 $0.0646
  • 500 $0.0469
  • 1,000 $0.0412
  • 3,000 $0.0338
  • 6,000 $0.0301
  • 9,000 $0.0283
  • 15,000 $0.0261
  • 21,000 $0.0249
  • 30,000 $0.0236
  • 75,000 $0.0209
  • 150,000 $0.0193
  • 300,000 $0.0179
$0.0179 / $0.1700 Buy Now
DISTI # 833-MMST3904-TP
Mouser Electronics Bipolar Transistors - BJT 200mA 40V RoHS: Compliant 8726
  • 1 $0.1700
  • 10 $0.1050
  • 100 $0.0650
  • 500 $0.0470
  • 1,000 $0.0420
  • 3,000 $0.0330
  • 9,000 $0.0240
$0.0240 / $0.1700 Buy Now
Bristol Electronics   Min Qty: 45 2775
  • 45 $0.1125
  • 135 $0.0563
  • 890 $0.0338
$0.0338 / $0.1125 Buy Now
Bristol Electronics   Min Qty: 45 1595
  • 45 $0.1125
  • 135 $0.0563
  • 890 $0.0338
$0.0338 / $0.1125 Buy Now
Quest Components 200 MA, 40 V, NPN, SI, SMALL SIGNAL TRANSISTOR 3496
  • 1 $0.1500
  • 134 $0.0450
  • 1,112 $0.0300
$0.0300 / $0.1500 Buy Now
Quest Components 200 MA, 40 V, NPN, SI, SMALL SIGNAL TRANSISTOR 439
  • 1 $0.1064
  • 48 $0.0798
  • 126 $0.0665
$0.0665 / $0.1064 Buy Now
DISTI # MMST3904-TP
TME Transistor: NPN, bipolar, 40V, 0.2A, 200mW, SOT323 Min Qty: 10 3545
  • 10 $0.0800
  • 50 $0.0420
  • 250 $0.0252
  • 1,000 $0.0227
  • 3,000 $0.0200
$0.0200 / $0.0800 Buy Now
DISTI # MMST3904-TP
IBS Electronics MMST3904 SERIES 40 V 200 MA 200 MW NPN SMALL SIGNAL TRANSISTOR - SOT-323 Min Qty: 3000 Package Multiple: 1 177000
  • 3,000 $0.0127
  • 12,000 $0.0122
  • 45,000 $0.0118
  • 90,000 $0.0116
  • 225,000 $0.0112
$0.0112 / $0.0127 Buy Now
LCSC 40V 200mW 10010mA1V 200mA NPN SOT-323-3 Bipolar (BJT) ROHS 1320
  • 20 $0.0218
  • 200 $0.0171
  • 600 $0.0145
  • 3,000 $0.0129
  • 9,000 $0.0116
  • 21,000 $0.0109
$0.0109 / $0.0218 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 141000
  • 12,000 $0.0163
  • 141,000 $0.0151
$0.0151 / $0.0163 Buy Now

Part Details for MMST3904-TP

MMST3904-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

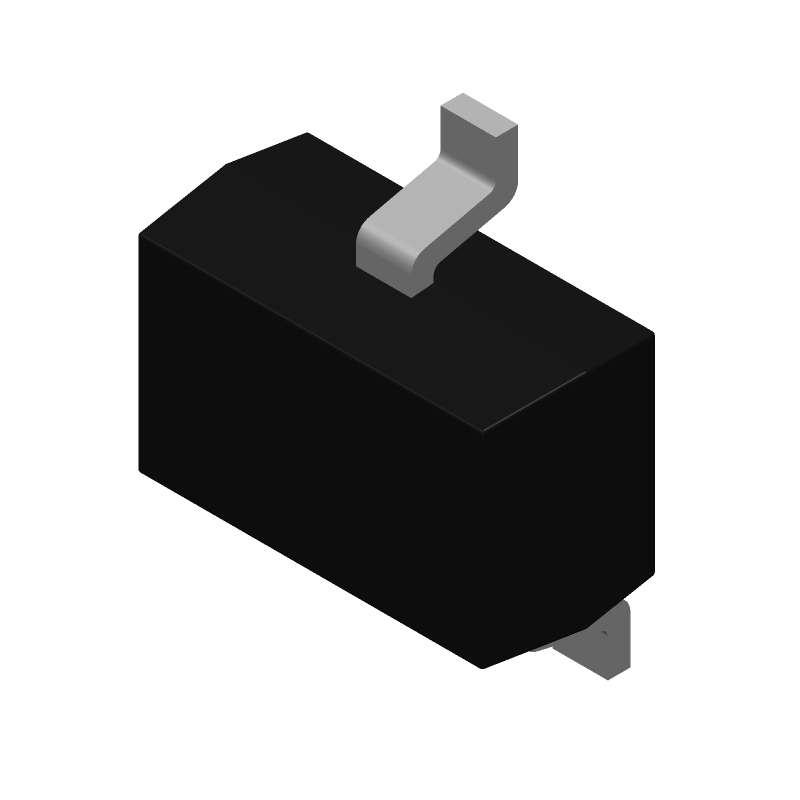

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MMST3904-TP Part Data Attributes

Parametric Data
MMST3904-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
MMST3904-TP Micro Commercial Components Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC, PACKAGE-3
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description ROHS COMPLIANT, ULTRA SMALL, PLASTIC, PACKAGE-3
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer MCC
Collector Current-Max (IC) 0.2 A
Collector-Emitter Voltage-Max 40 V
Configuration SINGLE
DC Current Gain-Min (hFE) 100
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.2 W
Qualification Status Not Qualified
Surface Mount YES
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 300 MHz
Turn-on Time-Max (ton) 70 ns

Alternate Parts for MMST3904-TP

This table gives cross-reference parts and alternative options found for MMST3904-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMST3904-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
933776000235 NXP Semiconductors Check for Price TRANSISTOR 100 mA, 40 V, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SST3, 3 PIN, BIP General Purpose Small Signal MMST3904-TP vs 933776000235
MMBT3904LT1 Motorola Semiconductor Products Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB, CASE 318-08, 3 PIN MMST3904-TP vs MMBT3904LT1
MMST3904-13 Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, ULTRA SMALL, PLASTIC PACKAGE-3 MMST3904-TP vs MMST3904-13
MMBT3904T/R Fairchild Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, ULTRA SMALL, PLASTIC PACKAGE-3 MMST3904-TP vs MMBT3904T/R
MMBT3904K Rochester Electronics LLC Check for Price 200mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, SOT-23, 3 PIN MMST3904-TP vs MMBT3904K
PMBS3904/T3 NXP Semiconductors Check for Price TRANSISTOR 100 mA, 40 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, PLASTIC PACKAGE-3, BIP General Purpose Small Signal MMST3904-TP vs PMBS3904/T3
FMMT3904 Zetex / Diodes Inc Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, MMST3904-TP vs FMMT3904
FMMT3904TA Zetex / Diodes Inc Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, MMST3904-TP vs FMMT3904TA
PMBS3904-T NXP Semiconductors Check for Price TRANSISTOR 100 mA, 40 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, PLASTIC PACKAGE-3, BIP General Purpose Small Signal MMST3904-TP vs PMBS3904-T
934026920115 NXP Semiconductors Check for Price TRANSISTOR 200 mA, 40 V, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, UMT3, SC-70, CMPAK-3, BIP General Purpose Small Signal MMST3904-TP vs 934026920115
Part Number Manufacturer Composite Price Description Compare
2N3904G onsemi Check for Price NPN Bipolar Transistor, TO-92 40 V, 0.2 A, TO-92 (TO-226) 5.33mm Body Height, 5000-BLKBX MMST3904-TP vs 2N3904G
2N3904/D27Z-J35Z Texas Instruments Check for Price 200mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR MMST3904-TP vs 2N3904/D27Z-J35Z
2N3904TAR Fairchild Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN MMST3904-TP vs 2N3904TAR
2N3904RLRA onsemi Check for Price NPN Bipolar Transistor, TO-92, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL MMST3904-TP vs 2N3904RLRA
MMST3904 ROHM Semiconductor Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SMT3, SC-59, 3 PIN MMST3904-TP vs MMST3904
MMBT3904 Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN MMST3904-TP vs MMBT3904
BC238B Central Semiconductor Corp Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92-18R, 3 PIN MMST3904-TP vs BC238B
2N3904 KEC Check for Price Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN MMST3904-TP vs 2N3904
MMBT3906/S62Z Texas Instruments Check for Price 200mA, 40V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB MMST3904-TP vs MMBT3906/S62Z
2N3904RLRA Motorola Mobility LLC Check for Price 200mA, 40V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92 MMST3904-TP vs 2N3904RLRA

MMST3904-TP Related Parts

MMST3904-TP Frequently Asked Questions (FAQ)

  • The recommended storage temperature for MMST3904-TP is -55°C to 150°C.

  • Yes, MMST3904-TP is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The maximum power dissipation for MMST3904-TP is 1.5 watts.

  • Yes, MMST3904-TP is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing.

  • Yes, MMST3904-TP is available in different package options, including TO-92, SOT-23, and SOT-223, to accommodate various design requirements.
