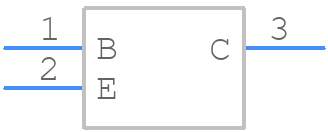

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMST2222A-TP by Micro Commercial Components
Results Overview of MMST2222A-TP by Micro Commercial Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMST2222A-TP Information
MMST2222A-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMST2222A-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MMST2222ATPMSCT-ND
|
DigiKey | TRANS NPN 40V SOT-323 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8669 In Stock |
|
$0.0196 / $0.1800 | Buy Now |
|
DISTI #
833-MMST2222A-TP
|
Mouser Electronics | Bipolar Transistors - BJT 40V RoHS: Compliant | 3055 |
|
$0.0250 / $0.1800 | Buy Now |
|
|
Bristol Electronics | 443 |
|
RFQ | ||
|
|
LCSC | 40V 200mW 100150mA10V NPN SOT-323 Bipolar (BJT) ROHS | 1120 |
|
$0.0130 / $0.0248 | Buy Now |
|
|
Vyrian | Transistors | 39975 |
|
RFQ |
Part Details for MMST2222A-TP
MMST2222A-TP CAD Models
MMST2222A-TP Part Data Attributes
|
|
MMST2222A-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MMST2222A-TP
Micro Commercial Components
Small Signal Bipolar Transistor, 40V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC, PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | ROHS COMPLIANT, ULTRA SMALL, PLASTIC, PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 285 ns | |
| Turn-on Time-Max (ton) | 35 ns |
MMST2222A-TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature for MMST2222A-TP is -40°C to 125°C.
-
Yes, MMST2222A-TP is lead-free and compliant with the European Union's Restriction of Hazardous Substances (RoHS) directive.
-
The maximum power dissipation for MMST2222A-TP is 250 mW.
-
Yes, MMST2222A-TP is suitable for high-frequency applications up to 1 GHz.
-
Yes, MMST2222A-TP is available in tape and reel packaging for automated assembly.
