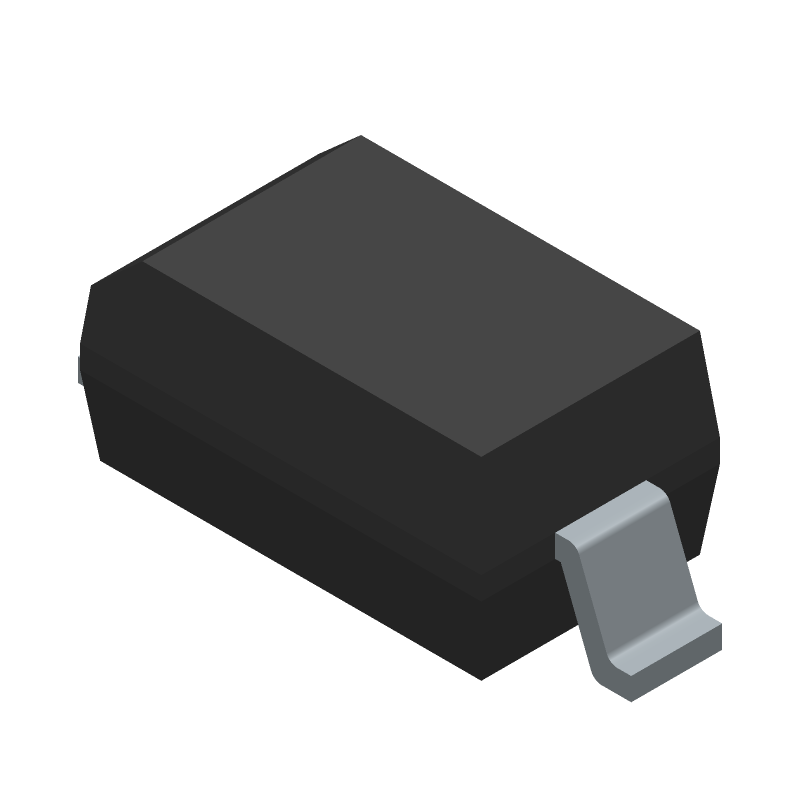

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMSD4148T1 by onsemi
Results Overview of MMSD4148T1 by onsemi
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
MMSD4148T1 Information
MMSD4148T1 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MMSD4148T1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MMSD4148T1
|
Avnet Americas | - Tape and Reel (Alt: MMSD4148T1) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
|
Bristol Electronics | 38489 |
|
RFQ | ||
|
|
Bristol Electronics | 11427 |
|
RFQ | ||
|
|
Bristol Electronics | 9701 |
|
RFQ | ||
|
|
Bristol Electronics | 7116 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 45 | 4290 |
|
$0.0113 / $0.1125 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,100V V(RRM),SOD-123 | 30791 |
|
$0.0508 / $0.2900 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,100V V(RRM),SOD-123 | 3432 |
|
$0.0150 / $0.1500 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,100V V(RRM),SOD-123 | 3322 |
|
$0.0900 / $0.3000 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,100V V(RRM),SOD-123 | 2304 |
|
$0.0870 / $0.2900 | Buy Now |
Part Details for MMSD4148T1
MMSD4148T1 CAD Models
MMSD4148T1 Part Data Attributes
|
|
MMSD4148T1
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMSD4148T1
onsemi
100 V Switching Diode, SOD-123 2 LEAD, 3000-REEL
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123 2 LEAD | |
| Package Description | CASE 425-04, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 425-04 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FAST SWITCHING | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e0 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 235 | |
| Power Dissipation-Max | 0.425 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MMSD4148T1
This table gives cross-reference parts and alternative options found for MMSD4148T1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMSD4148T1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N4150W-T1 | Sensitron Semiconductors | Check for Price | Rectifier Diode, 1 Element, 0.2A, 50V V(RRM), Silicon, PLASTIC PACKAGE-2 | MMSD4148T1 vs 1N4150W-T1 |
| 1N4150W | Sensitron Semiconductors | Check for Price | Rectifier Diode, 1 Element, 0.2A, 50V V(RRM), Silicon, PLASTIC PACKAGE-2 | MMSD4148T1 vs 1N4150W |
| MMSD4148 | Galaxy Semi-Conductor Co Ltd | Check for Price | Rectifier Diode, | MMSD4148T1 vs MMSD4148 |
| 1N4150W-G | Sensitron Semiconductors | Check for Price | Rectifier Diode, 1 Element, 0.2A, 50V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 | MMSD4148T1 vs 1N4150W-G |
| MMSD4148 | Galaxy Microelectronics | Check for Price | Surface Mount Small Signal Switching Diode; Configuration: Single; VRRM Max (V): 100; IAV Max (A): 0.2; VFM Max (V): 1; @ IF (A): 0.01; IR Max (UA): 5; @VR (V): 75; TRR Max (NS): 4; Pin: F1; Package: SOD-123 | MMSD4148T1 vs MMSD4148 |
| 1N4150W-GT1 | Sensitron Semiconductors | Check for Price | Rectifier Diode, 1 Element, 0.2A, 50V V(RRM), Silicon, PLASTIC PACKAGE-2 | MMSD4148T1 vs 1N4150W-GT1 |
