MMS-120-02-F-DV by: Samtec Inc

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

Part Details for MMS-120-02-F-DV by Samtec Inc

Results Overview of MMS-120-02-F-DV by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

MMS-120-02-F-DV Information

MMS-120-02-F-DV by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for MMS-120-02-F-DV

Part # Distributor Description Stock Price Buy
DISTI # MMS-120-02-F-DV-ND
DigiKey CONN RCPT 40POS 0.079 GOLD SMD Min Qty: 1 Lead time: 6 Weeks Container: Tube 50
In Stock
  • 1 $6.3700
  • 25 $5.7600
  • 50 $5.3500
$5.3500 / $6.3700 Buy Now
DISTI # MMS-120-02-F-DV
Avnet Americas Conn Socket Strip SKT 40 POS 2mm Solder ST SMD T/R - Rail/Tube (Alt: MMS-120-02-F-DV) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Tube 69 Factory Stock
  • 1 $5.3704
  • 10 $5.3430
  • 30 $4.2001
  • 50 $4.1784
  • 100 $4.1568
$4.1568 / $5.3704 Buy Now
DISTI # 200-MMS12002FDV
Mouser Electronics Headers & Wire Housings Classic Socket Strips RoHS: Compliant 23
  • 1 $5.4800
  • 28 $5.0100
  • 56 $4.5500
  • 112 $4.3300
  • 504 $3.9300
  • 1,008 $3.4700
  • 2,506 $2.7800
$2.7800 / $5.4800 Buy Now
Onlinecomponents.com 2.00 mm Tiger Claw™ Socket Strip RoHS: Compliant 0
  • 5 $5.9200
  • 50 $4.8100
  • 100 $4.6000
  • 250 $4.4000
  • 500 $3.9300
  • 1,000 $3.4700
  • 2,500 $2.7800
  • 5,000 $2.3100
$2.3100 / $5.9200 Buy Now
DISTI # 85115617
Verical Conn Socket Strip SKT 40 POS 2mm Solder ST Top Entry SMD Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Americas - 69
  • 2 $5.4800
  • 25 $5.0100
  • 50 $4.5500
  • 100 $4.3300
  • 500 $3.9300
  • 1,000 $3.4700
$3.4700 / $5.4800 Buy Now
DISTI # 5cd8ff0dcd7c1c4c3852fbe5
Samtec Classic Socket Strips, 2.00 mm (.0787") Pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 69
  • 1 $5.4800
  • 25 $5.0100
  • 50 $4.5500
  • 100 $4.3300
  • 500 $3.9300
  • 1,000 $3.4700
  • 2,500 $2.7800
  • 4,900 $2.2500
$2.2500 / $5.4800 Buy Now
Powell Electronics 2.00 mm Tiger Claw Skt Strip Min Qty: 1 46
  • 1 $5.4800
  • 25 $5.0100
  • 50 $4.5500
  • 100 $4.3300
  • 500 $3.9300
$3.9300 / $5.4800 Buy Now
DISTI # 000000000003593741
Sager Headers & Wire Housings Classic Socket Strips, 2.00 mm (.0787) Pitch Min Qty: 1 69
  • 1 $5.4800
  • 25 $5.0100
  • 50 $4.5500
  • 100 $4.3300
  • 500 $3.9300
  • 1,000 $3.4700
$3.4700 / $5.4800 Buy Now
DISTI # MMS-120-02-F-DV
Avnet Abacus Conn Socket Strip SKT 40 POS 2mm Solder ST SMD TR (Alt: MMS-120-02-F-DV) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 2.00 mm Tiger Claw™ Socket Strip RoHS: Compliant 0
  • 5 $5.9200
  • 50 $4.8100
  • 100 $4.6000
  • 250 $4.4000
  • 500 $3.9300
  • 1,000 $3.4700
  • 2,500 $2.7800
  • 5,000 $2.3100
$2.3100 / $5.9200 Buy Now

Part Details for MMS-120-02-F-DV

MMS-120-02-F-DV CAD Models

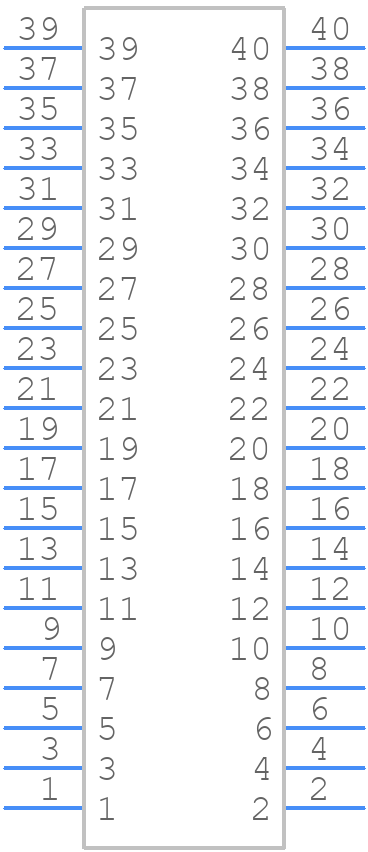

  • Part Symbol

    Part Symbol

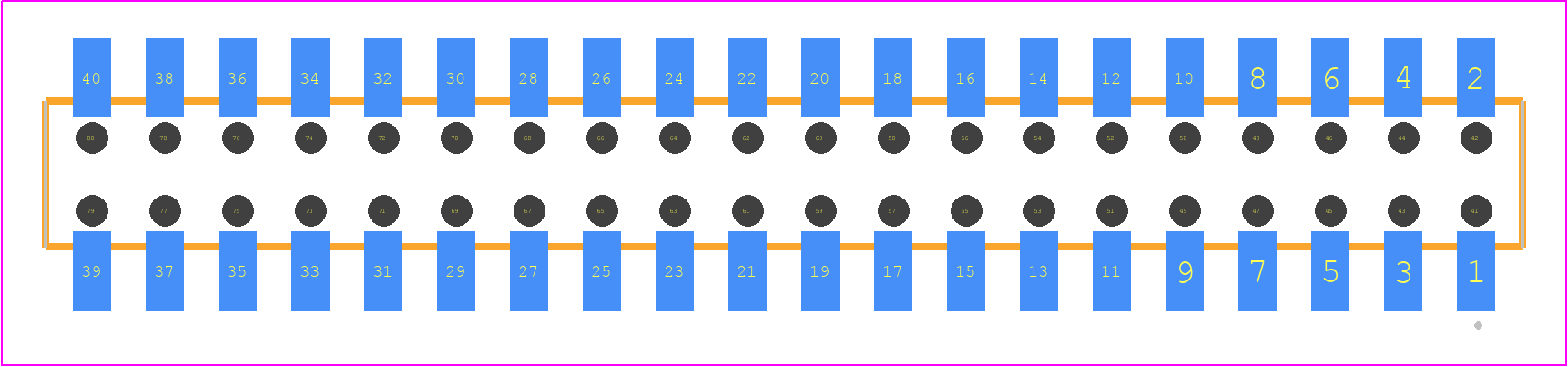

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MMS-120-02-F-DV Part Data Attributes

Parametric Data
MMS-120-02-F-DV Samtec Inc
Buy Now Datasheet
Compare Parts:
MMS-120-02-F-DV Samtec Inc Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 111 Weeks
Samacsys Manufacturer SAMTEC
Additional Feature TOP ENTRY; BOTTOM ENTRY
Body Breadth 0.157 inch
Body Depth 0.177 inch
Body Length 1.602 inch
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Finish Mating MATTE TIN
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 10 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 1.0286 N
Insulator Color BLACK
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 5.3086 mm
Plating Thickness 3u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3.9 A
Reference Standard UL, CSA
Terminal Pitch 2 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 40
Withdrawl Force-Min .6116 N

Alternate Parts for MMS-120-02-F-DV

This table gives cross-reference parts and alternative options found for MMS-120-02-F-DV. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMS-120-02-F-DV, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MMS-120-02-L-DV Samtec Inc $6.2387 Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT MMS-120-02-F-DV vs MMS-120-02-L-DV
MMS-120-02-S-DV Samtec Inc $7.6595 Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, MMS-120-02-F-DV vs MMS-120-02-S-DV
MMS-120-02-L-DV-TR Samtec Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT MMS-120-02-F-DV vs MMS-120-02-L-DV-TR
MMS-120-02-F-DV-TR Samtec Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator MMS-120-02-F-DV vs MMS-120-02-F-DV-TR
Part Number Manufacturer Composite Price Description Compare
MMS-120-02-L-DH-FR Samtec Inc $4.6285 Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.078 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, MMS-120-02-F-DV vs MMS-120-02-L-DH-FR
MMS-120-02-L-DV-A-M-FR Samtec Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.078 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, MMS-120-02-F-DV vs MMS-120-02-L-DV-A-M-FR
MMS-120-02-L-DV-A-P-FR Samtec Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.078 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, MMS-120-02-F-DV vs MMS-120-02-L-DV-A-P-FR
MMS-120-02-L-DV-K-TR Samtec Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT MMS-120-02-F-DV vs MMS-120-02-L-DV-K-TR

MMS-120-02-F-DV Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.

  • Yes, the MMS-120-02-F-DV connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.

  • The MMS-120-02-F-DV connector has an operating temperature range of -55°C to +125°C, making it suitable for most industrial and commercial applications.

  • Yes, the MMS-120-02-F-DV connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The recommended mating cycle for the MMS-120-02-F-DV connector is 500 cycles, according to Samtec's reliability testing and application notes.
