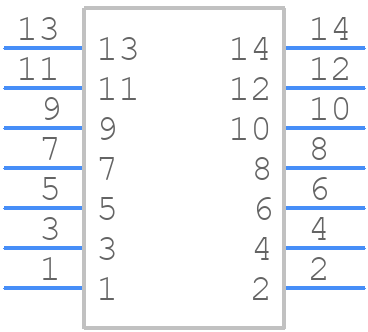

Part Symbol
-

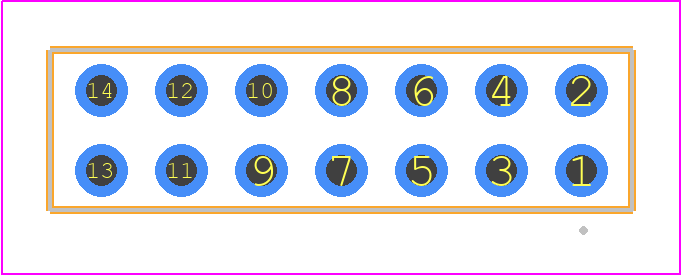

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMS-107-01-T-DV by Samtec Inc
Results Overview of MMS-107-01-T-DV by Samtec Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
MMS-107-01-T-DV Information
MMS-107-01-T-DV by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for MMS-107-01-T-DV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11P5348
|
Newark | 2Mm Socket Strips |Samtec MMS-107-01-T-DV RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.1000 / $3.1700 | Buy Now |
|
DISTI #
MMS-107-01-T-DV
|
Avnet Americas | Conn Socket Strip SKT 14 POS 2mm Solder ST Thru-Hole Tube - Bulk (Alt: MMS-107-01-T-DV) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
DISTI #
000000000000128176
|
Sager | Headers & Wire Housings | 0 |
|
Buy Now | |
|
DISTI #
MMS-107-01-T-DV
|
Avnet Abacus | Conn Socket Strip SKT 14 POS 2mm Solder ST ThruHole Tube (Alt: MMS-107-01-T-DV) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
MMS-107-01-T-DV
|
Avnet Abacus | Conn Socket Strip SKT 14 POS 2mm Solder ST ThruHole Tube (Alt: MMS-107-01-T-DV) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MMS-107-01-T-DV
MMS-107-01-T-DV CAD Models
MMS-107-01-T-DV Part Data Attributes
|
|
MMS-107-01-T-DV
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
MMS-107-01-T-DV
Samtec Inc
Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | SAMTEC INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | TOP ENTRY; BOTTOM ENTRY | |
| Body/Shell Style | SOCKET | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | MATTE TIN OVER NICKEL (50) | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Material | PHOSPHOR BRONZE | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 2 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 14 |
Alternate Parts for MMS-107-01-T-DV
This table gives cross-reference parts and alternative options found for MMS-107-01-T-DV. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMS-107-01-T-DV, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMS-107-01-F-DV | Samtec Inc | $2.6409 | Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT | MMS-107-01-T-DV vs MMS-107-01-F-DV |
| MMS-107-01-L-DV | Samtec Inc | $3.1971 | Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT | MMS-107-01-T-DV vs MMS-107-01-L-DV |
| MMS-107-01-S-DV | Samtec Inc | Check for Price | Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, | MMS-107-01-T-DV vs MMS-107-01-S-DV |
| MMS-107-01-H-DV | Samtec Inc | Check for Price | Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, | MMS-107-01-T-DV vs MMS-107-01-H-DV |
MMS-107-01-T-DV Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
-
Yes, the MMS-107-01-T-DV is designed to withstand vibration and shock according to IEC 61373 Cat 2 standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
-
The MMS-107-01-T-DV has an operating temperature range of -40°C to +125°C, but it's recommended to consult the datasheet for specific temperature ratings for different materials and applications.
-
Yes, the MMS-107-01-T-DV is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
-
The MMS-107-01-T-DV has a mating cycle life of 500 cycles minimum, but this can vary depending on the application and environmental conditions.
