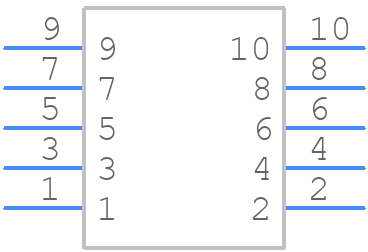

Part Symbol
-

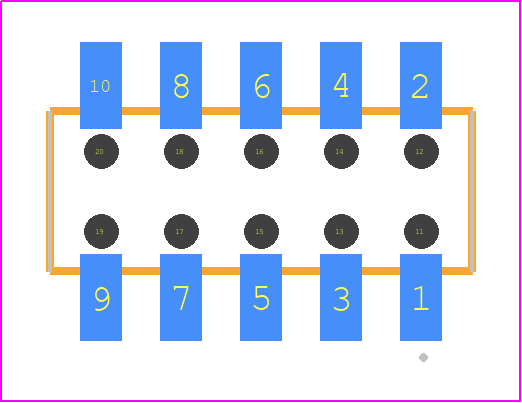

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMS-105-02-L-DV by Samtec Inc
Results Overview of MMS-105-02-L-DV by Samtec Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
MMS-105-02-L-DV Information
MMS-105-02-L-DV by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for MMS-105-02-L-DV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11P5320
|
Newark | Socket, 2.0Mm, Vert, 2X5 Position, Connector Systems:Board-To-Board, Wire-To-Board, Pitch Spacing:2Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Connector Mounting:Surface Mount, Product Range:Mms Series, Gender:Receptacle Rohs Compliant: Yes |Samtec MMS-105-02-L-DV RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$1.7300 / $4.3700 | Buy Now |
|
DISTI #
SAM1236-05-ND
|
DigiKey | CONN RCPT 10POS 0.079 GOLD SMD Min Qty: 1 Lead time: 2 Weeks Container: Bulk |
346 In Stock |
|
$1.5395 / $2.3900 | Buy Now |
|
DISTI #
MMS-105-02-L-DV
|
Avnet Americas | PCB Receptacle, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 10 Contacts, Surface Mount - Rail/Tube (Alt: MMS-105-02-L-DV) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube | 0 |
|
$1.6591 / $2.3422 | Buy Now |
|
DISTI #
200-MMS10502LDV
|
Mouser Electronics | Headers & Wire Housings Classic Socket Strips RoHS: Compliant | 127 |
|
$1.4100 / $3.1600 | Buy Now |
|
|
Onlinecomponents.com | 2.00 mm Tiger Claw™ Socket Strip RoHS: Compliant |
753 In Stock |
|
$1.2100 / $2.4900 | Buy Now |
|
DISTI #
51601808
|
Verical | Conn Socket Strip SKT 10 POS 2mm Solder ST Top Entry SMD Tube RoHS: Compliant Min Qty: 30 Package Multiple: 10 | Americas - 750 |
|
$2.1970 / $3.2370 | Buy Now |
|
|
Quest Components | 136 |
|
$1.5680 / $3.1360 | Buy Now | |
|
|
Quest Components | 5 |
|
$1.8444 / $2.3055 | Buy Now | |
|
DISTI #
5cd8ff7ecd7c1c4c38537f90
|
Samtec | Classic Socket Strips, 2.00 mm (.0787") Pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 4 Days Container: Tube | 0 |
|
$1.0000 / $3.1600 | Buy Now |
|
DISTI #
000000000000128133
|
Sager | Headers & Wire Housings Classic Socket Strips, 2.00 mm (.0787) Pitch Min Qty: 1 | 0 |
|
$1.5400 / $3.1600 | Buy Now |
Part Details for MMS-105-02-L-DV
MMS-105-02-L-DV CAD Models
MMS-105-02-L-DV Part Data Attributes
|
|
MMS-105-02-L-DV
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
MMS-105-02-L-DV
Samtec Inc
Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | TOP ENTRY; BOTTOM ENTRY | |
| Body Breadth | 0.157 inch | |
| Body Depth | 0.177 inch | |
| Body Length | 0.417 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD (10) OVER NICKEL (50) | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 10 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 1.0286 N | |
| Insulator Color | BLACK | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.079 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 5.3086 mm | |
| Plating Thickness | 10u inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 3.9 A | |
| Reference Standard | UL, CSA | |
| Terminal Pitch | 2 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 10 | |
| Withdrawl Force-Min | .6116 N |
