MMGGD1L0C Information
MMGGD1L0C by C&K is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MMGGD1L0C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
35AH3316
|
Newark | Mmggd1L0C |C&k Components MMGGD1L0C RoHS: Not Compliant Min Qty: 120 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$14.1000 / $16.2400 | Buy Now |
|
DISTI #
CKN10049-ND
|
DigiKey | SWITCH SNAP ACTION SPDT 7A 250V Min Qty: 1 Lead time: 30 Weeks Container: Bulk |
26 In Stock |
|
$11.9822 / $19.4200 | Buy Now |
|
DISTI #
611-MMGGD1L0C
|
Mouser Electronics | Basic / Snap Action Switches SPDT MOM 7A 250 V AC RoHS: Compliant | 271 |
|
$11.9500 / $18.1400 | Buy Now |
|
DISTI #
65009660
|
Verical | Switch Snap Action N.O./N.C. SPDT Leaf Lever 7A 250VAC 28VDC 1.13N Screw Mount PC Turret Bulk RoHS: Compliant Min Qty: 5 Package Multiple: 5 | Americas - 195 |
|
$13.8000 / $22.5059 | Buy Now |
|
DISTI #
000000000000020920
|
Sager | Basic / Snap Action Switches SPDT MOM 7A 250 V AC Min Qty: 1 | 0 |
|
$10.3000 / $13.2900 | Buy Now |
Part Details for MMGGD1L0C

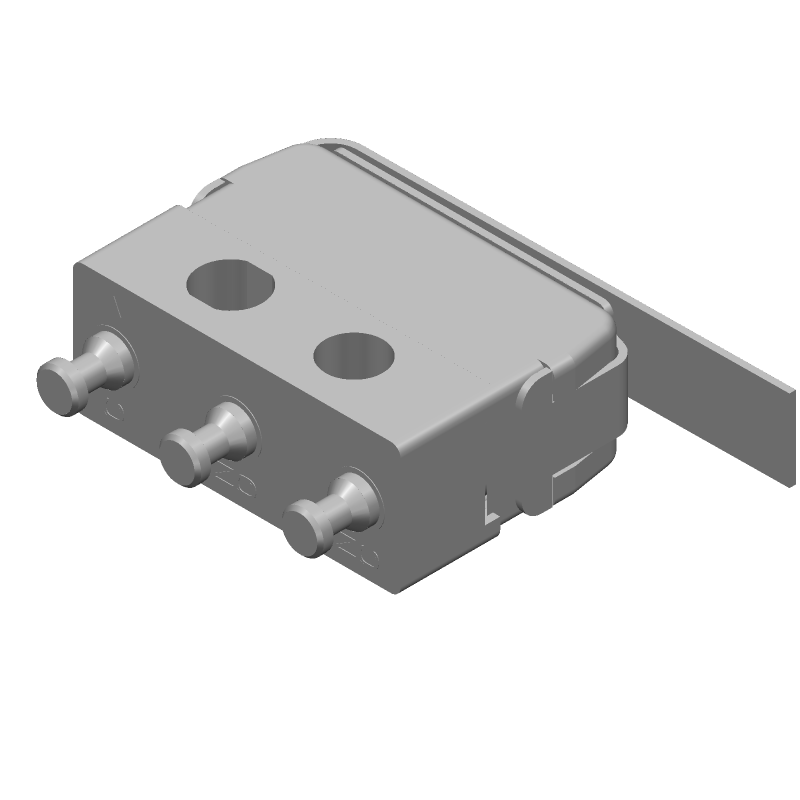

MMGGD1L0C CAD Models
