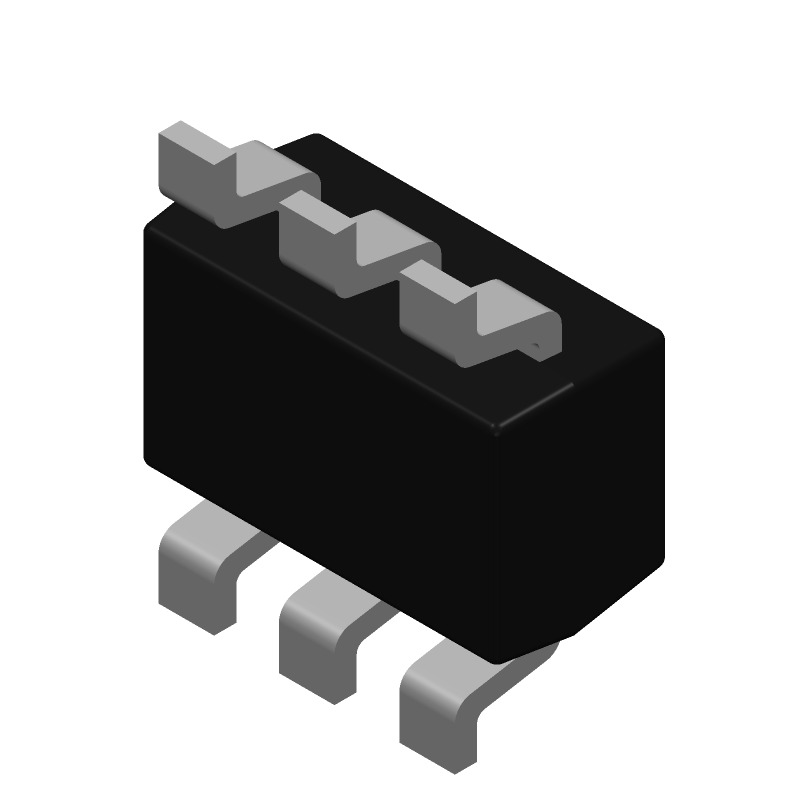

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMDT3904-TPQ2 by Micro Commercial Components
Results Overview of MMDT3904-TPQ2 by Micro Commercial Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMDT3904-TPQ2 Information
MMDT3904-TPQ2 by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMDT3904-TPQ2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-MMDT3904-TPQ2-ND
|
DigiKey | TRANS 2NPN 40V 200MA SOT-363 Min Qty: 3000 Lead time: 16 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.0869 | Buy Now |
|
DISTI #
833-MMDT3904-TPQ2
|
Mouser Electronics | Bipolar Transistors - BJT RoHS: Compliant | 0 |
|
$0.0560 / $0.3600 | Order Now |
|
DISTI #
88803811
|
Verical | MMDT3904-TPQ2 Min Qty: 3000 Package Multiple: 3000 | Americas - 105000 |
|
$0.0639 | Buy Now |
|
DISTI #
MMDT3904-TPQ2
|
IBS Electronics | MMDT3904-TPQ2 by MCC is a dual NPN transistor with a maximum collector current of 200mA, collector-emitter voltage of 40V, and a power dissipation of 300mW, ideal for switching applications. Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.0771 / $0.0816 | Buy Now |
Part Details for MMDT3904-TPQ2
MMDT3904-TPQ2 CAD Models
MMDT3904-TPQ2 Part Data Attributes
|
|
MMDT3904-TPQ2
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MMDT3904-TPQ2
Micro Commercial Components
Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, NPN,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Terminal Finish | Tin (Sn) | |
| Time@Peak Reflow Temperature-Max (s) | 3 |
