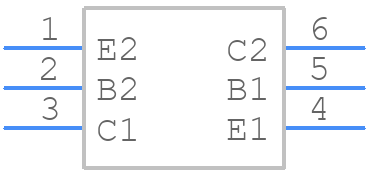

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMDT3904-7-F by Diodes Incorporated
Results Overview of MMDT3904-7-F by Diodes Incorporated
- Distributor Offerings: (28 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMDT3904-7-F Information
MMDT3904-7-F by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMDT3904-7-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AH8821
|
Newark | General Purpose Transistor Sot363 T&r 3K Rohs Compliant: Yes |Diodes Inc. MMDT3904-7-F RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 234000 |
|
$0.0170 | Buy Now |
|
DISTI #
MMDT3904-FDICT-ND
|
DigiKey | TRANS 2NPN 40V 200MA SOT-363 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2919 In Stock |
|
$0.0203 / $0.1900 | Buy Now |
|
DISTI #
MMDT3904-7-F
|
Avnet Americas | Bipolar Transistor Array, Dual NPN, 40 V, 200 mA, 200 mW, 100 hFE, SOT-363, 6 Pins - Tape and Reel (Alt: MMDT3904-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 234000 |
|
$0.0171 | Buy Now |
|
DISTI #
MMDT3904-7-F
|
Avnet Americas | Bipolar Transistor Array, Dual NPN, 40 V, 200 mA, 200 mW, 100 hFE, SOT-363, 6 Pins - Tape and Reel (Alt: MMDT3904-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0160 | RFQ |
|
DISTI #
621-MMDT3904-F
|
Mouser Electronics | Bipolar Transistors - BJT 40V 200mW RoHS: Compliant | 4916 |
|
$0.0200 / $0.1900 | Buy Now |
|
DISTI #
V36:1790_06703037
|
Arrow Electronics | Trans GP BJT NPN 40V 0.2A 200mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2309 | Americas - 384000 |
|
$0.0146 | Buy Now |
|
DISTI #
E02:0323_01119091
|
Arrow Electronics | Trans GP BJT NPN 40V 0.2A 200mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2425 | Europe - 45000 |
|
$0.0160 / $0.0313 | Buy Now |
|
DISTI #
V72:2272_06703037
|
Arrow Electronics | Trans GP BJT NPN 40V 0.2A 200mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 2610 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2251 Container: Cut Strips | Americas - 2610 |
|
$0.0268 | Buy Now |
|
DISTI #
70438359
|
RS | Transistor Dual NPN 40V 0.2A SOT363-6 Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0720 | RFQ |
|
|
Future Electronics | MMDT3904 Series Dual NPN 40 V 200 mW Small Signal Transistor SMT - SOT-363-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 138000Reel |
|
$0.0181 / $0.0197 | Buy Now |
Part Details for MMDT3904-7-F
MMDT3904-7-F CAD Models
MMDT3904-7-F Part Data Attributes
|
|
MMDT3904-7-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
MMDT3904-7-F
Diodes Incorporated
Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 2-Element, NPN, Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | GREEN, ULTRA SMALL, PLASTIC PACKAGE-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| DC Current Gain-Min (hFE) | 30 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 250 ns | |
| Turn-on Time-Max (ton) | 70 ns |
