MMBZ5245BW-TP by: Micro Commercial Components

Zener Diode, 15V V(Z), 5%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3

Part Details for MMBZ5245BW-TP by Micro Commercial Components

Results Overview of MMBZ5245BW-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

MMBZ5245BW-TP Information

MMBZ5245BW-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for MMBZ5245BW-TP

Part # Distributor Description Stock Price Buy
DISTI # 353-MMBZ5245BW-TP-ND
DigiKey DIODE ZENER 15V 200MW SOT323 Min Qty: 3000 Lead time: 22 Weeks Container: Bulk Temporarily Out of Stock
  • 3,000 $0.0344
$0.0344 Buy Now
DISTI # 833-MMBZ5245BW-TP
Mouser Electronics Zener Diodes 200mW 0.9V 15Vz 0.25mA 600Ohm 100uA RoHS: Compliant 0
  • 1 $0.2000
  • 10 $0.1370
  • 100 $0.0670
  • 1,000 $0.0390
  • 3,000 $0.0330
  • 9,000 $0.0310
  • 24,000 $0.0300
$0.0300 / $0.2000 Order Now

Part Details for MMBZ5245BW-TP

MMBZ5245BW-TP CAD Models

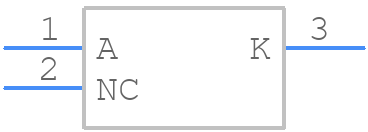

  • Part Symbol
